Heavy Duty CNC Gantry Machining Center SP2560 with Full Protection

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

VMC850L vertical machining center

95% Response Rate

VMC1200L 3 axis cnc milling machine center

95% Response Rate

VM1580L heavy duty 4 axis cnc machining center

95% Response Rate

Product Description

Features: 1. High performance cost ratio. 2. Energy consumption decrease by 20%, high stability. 3. Easy to operate, programme and maintenance.

Specification	SP2560
Worktable size(W x L)	2500x6000mm
Load bearing of worktable	20000kgs
T-slots(N x M)	Center: 11-28x200mm
Longitudinal travel X axis	6200mm
Cross travel Y axis	2900+200(tool change)mm
Vertical travel Z axis	1000mm
Distance between spindle to worktable	260-1260mm
Distance between two columns	3000mm
Spindle taper	BT50/Φ190mm
Spindle motor	FANUC βiP30/8000 15/18.5kw
Servo main motor rated output torque	143Nm
Spindle Max.speed	6000(belt type)rpm
Rapid feed speed X axis	10m/min
Rapid feed speed Y axis	10m/min
Rapid feed speed Z axis	10m/min

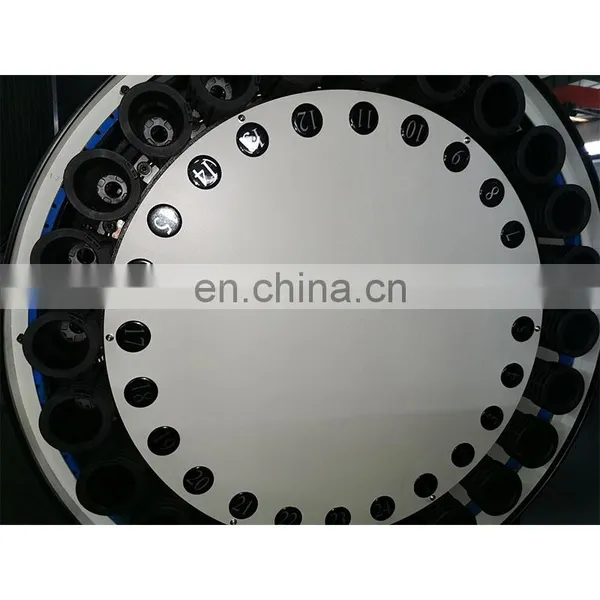

Tool magazine model	MANIPULATOR
Tool Magazine capacity	24T
Max. Tool diameter	Φ110/Φ220mm
Max. Tool allowable weight	18kgs
Max. Tool allowable length	350mm
Tool change time	3s
Tool change way	Arbitrary
Positioning accuracy	0.045/0.03/0.02mm Total length
Re-positioning accuracy	0.03/0.018/0.012mm Total length
Machine Electric Capacity	60KVA
Machine compressed Air	6kg/cm²
Power Requirement	380V
Machine Weight	54000kgs
Machine Dimension	16000x6400x5500mm

Detailed Images

STANDARD ACCESSORIES : 1. FANUC CNC system. 2. Main driving system(include spindle, main motor etc. 3. Three axis servo drive system( servo motor, linear guide, ball screw etc). 4. Main parts(include base, worktable, column etc). 5. CNC control system( includes operation box, electric cabinet, manual pulse generator). 6. Cutting liquid system( Includes water pump and water tank ). 7. Automatic chip conveyor. 8. Outsides semi-protection shield. 9. Oil cooler and etc.

Company profile

FAQ

Q1: How is the warranty? A1: Warranty time is 13 months after BL date. Q2:Can we visit your factory before order? A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q3:Do you have a stock? A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs. Q4:What’s the MOQ? A4:One set only. Q5:How about your quality? A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services. Q6:Do you have professional engineers? A6:Yes.we have professional engineers and designers. We can provide OEM services. Q7:Can you provide customized machines? A7:Yes, we can design and manufacture according to your specific requirements.
