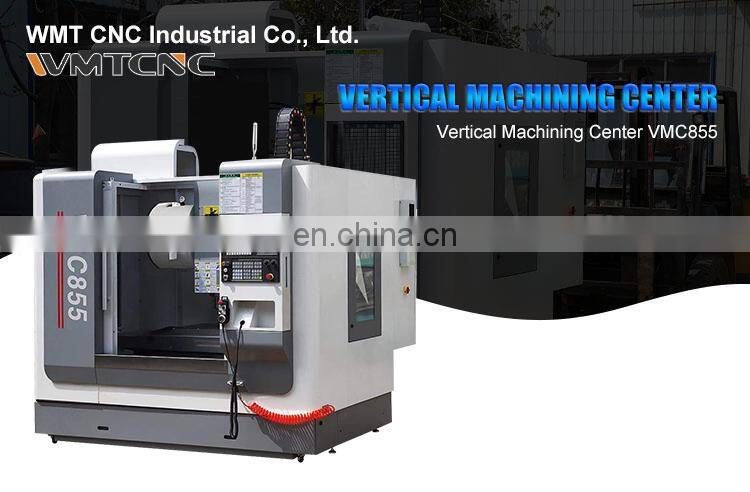

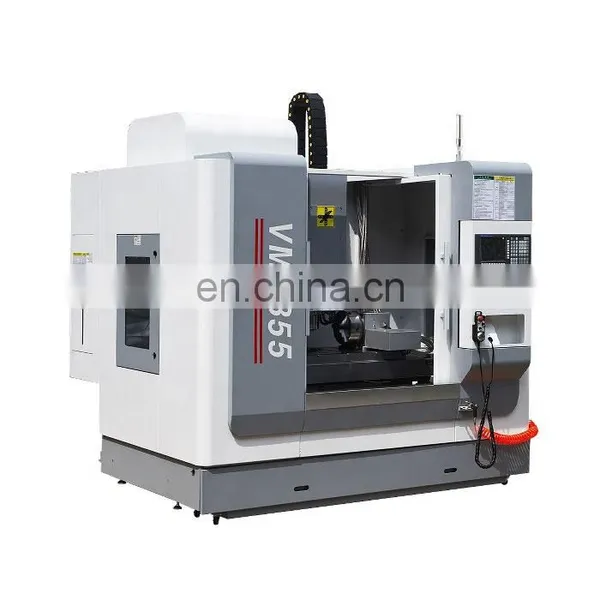

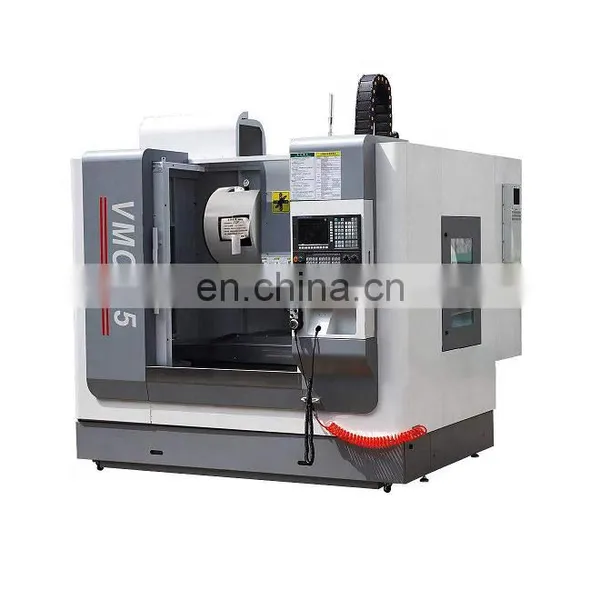

WMTCNC 4 axis cnc vertical machine centre VMC855 vmc mill machine for metalworking

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Specification	VMC855
Worktable size（LxW）	1000x550mm
T-slot (NxWx D)	5x18x100mm
X/Y/Z axis travel	800/550/550mm
Distance from spindle center to column	595mm
Distance from spindle nose to worktable surface	120-670mm

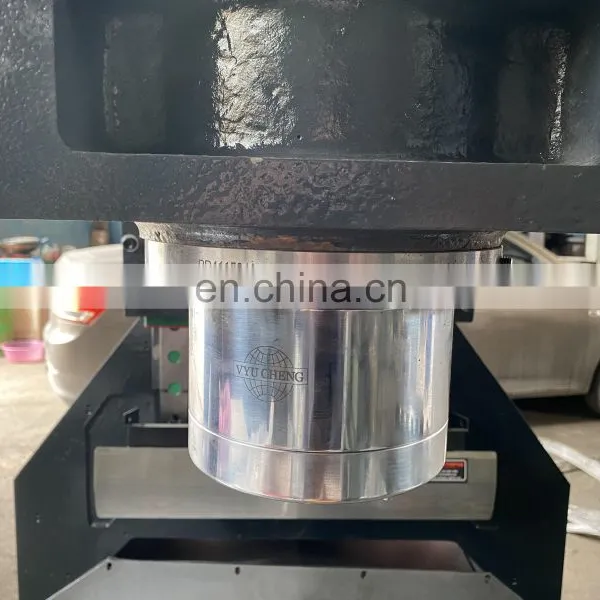

Spindle taper	BT40
Spindle power	7.5kw
Max.spindle speed	8000rpm
Max.feed speed	10m/min
Rapid feed speed（X/Y/Z)	36/36/32m/min
X/Y/Z axis ball screw	4010/C3

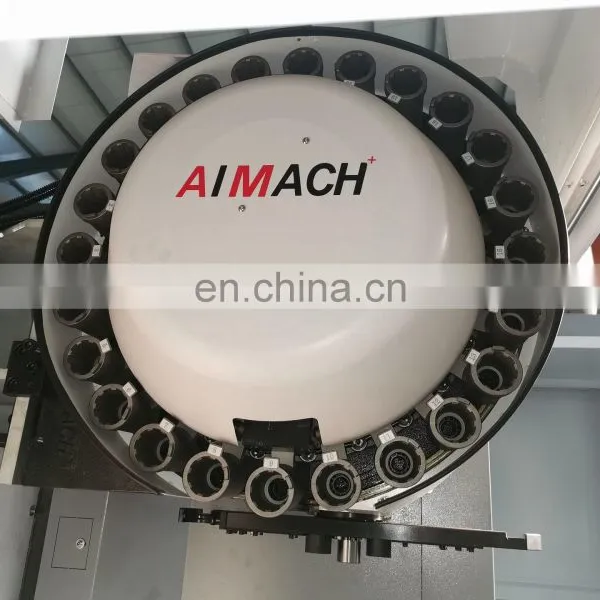

Tool magazine capacity	24T
Positioning accuracy（X/Y/Z)	±0.010mm
Re-positioning accuracy（X/Y/Z)	±0.003mm
Water tank volume	200L
Cooling pump power	120w
Cooling pump flow	50L/min
LxWxH	2750×2300×2300mm
Machine weight	5300Kg

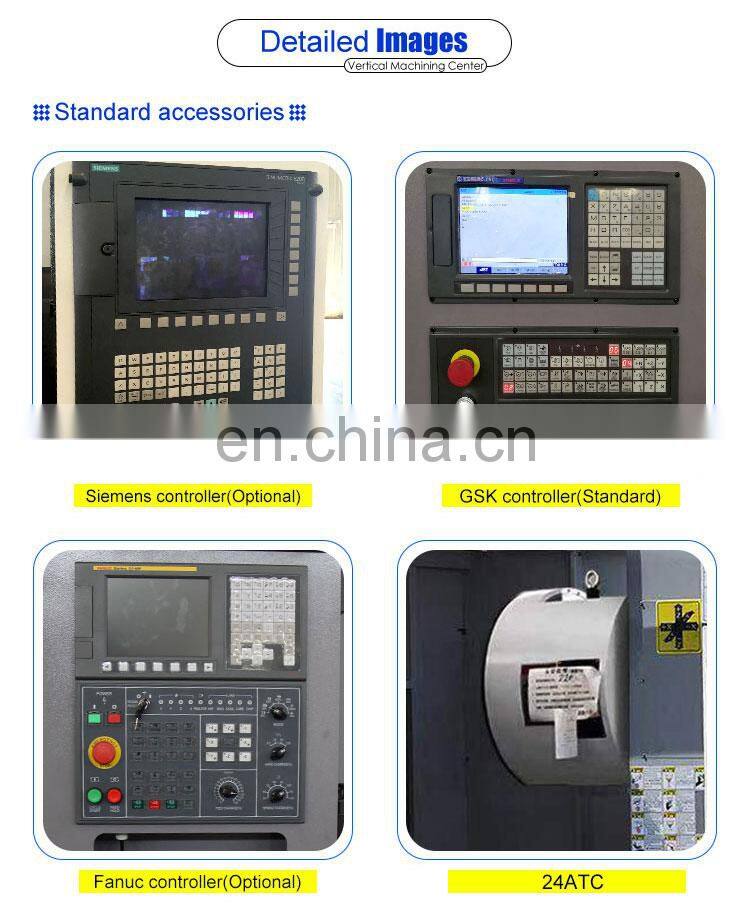

Detailed Images

Products Recommend

Company Profile

Professional Service

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2: Can we visit your factory before order?

A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3: Do you have a stock?

A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4: What’s the MOQ?

A4: One set only.

Q5: How about your quality?

A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6: Do you have professional engineers?

A6: Yes.we have professional engineers and designers. We can provide OEM services.

Q7: Can you provide customized machines?

A7: Yes, we can design and manufacture according to your specific requirements.

Company Profile

Jingjiang Fuji Technology Co., Ltd.

Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
