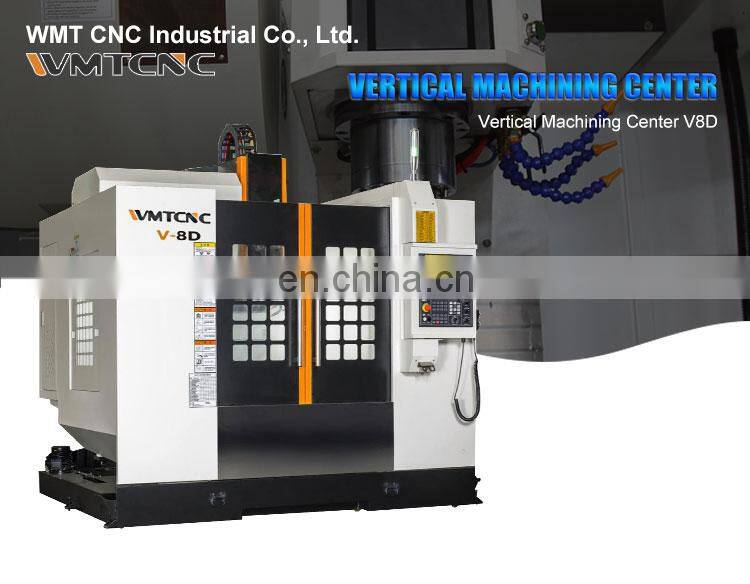

V-8D high quality vertical machining center
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
VMC1000L directly manufacturer cnc milling machine center for sale
-
V-8F high quality vertical machining center
-
VMC850F high quality vertical machining center
-
DVMC-D8 heavy duty dual spindle and dual ATC cnc machining center
-
VMC1580L 4 axis cnc milling machine center for mould making
-
VMC1040 cnc milling VMC machine center for metal work
Product Description
Product Description
Specification
SPINDLE:
1.Built-in motor-type spindle to minimize thermal deformation and vibration
2.BBT40 16000 rpm spindle, compatible with BT tool holders and tools
3.Front two back two hybrid ceramic ball angular contact bearings
4. Standard oil-cooled/water-cooled device, optional water outlet from the spindle center
5. The spindle box of the electric spindle adopts a symmetrical design with a large inclined surface and a large oblique angle, which reduces the thermal displacement of the spindle box caused by the high-speed use of the electric spindle, thereby affecting the machining accuracy of the machine
FEED：
1.The integrated design of the screw nut seat and the bed greatly improves the accuracy and stability
2.The double-anchor screw rod structure is adopted and pre-stretched to effectively improve the accuracy retention
3.Feed shaft 3+2 bearing distribution, and use dilute oil lubrication, prolong the service life of the bearing
4.The diaphragm coupling is used to effectively solve the backlash problem of the elastic coupling and improve the accuracy
Specification | V-8D |
Worktable | |
Worktable size（LxW） | 1000×500mm |
T-slot (NxWx D) | 5×18-100mm |
Travel | |
X/Y/Z axis travel | 850/500/550mm |
Machine range | |
Distance from spindle center to column | 582mm |
Distance from spindle nose to worktable surface | 120-670mm |
Spindle | |

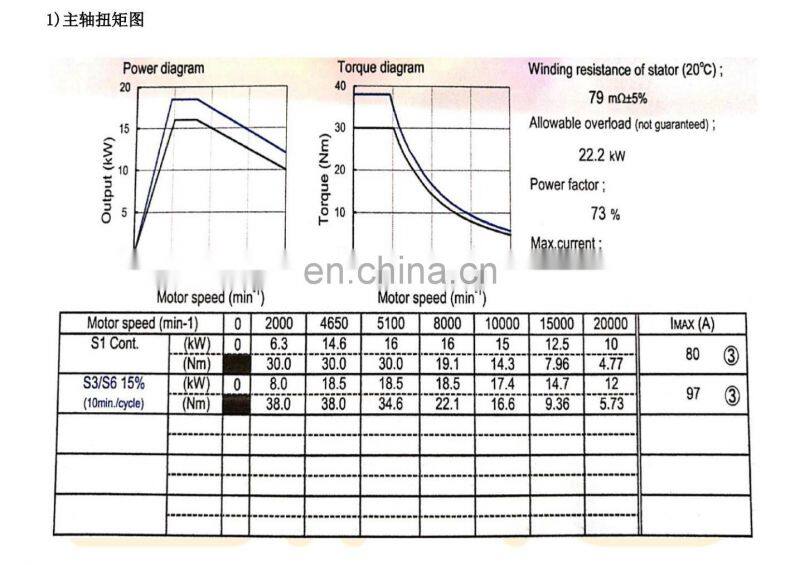

Spindle torque | 38N.M |
Spindle taper | BBT40 |
Spindle power | 16/18.5kw |
Max.spindle speed | 16000rpm |
Feed(direct drive) | |
Rapid feed speed（X/Y/Z) | 48/48/32mm |
Tool magazine | |
Max.length of tool | 300mm |
Max.dia.of tool | 78/120mm |
Max. weight of tool | 8kgs |
Tool magazine capacity | 24t |
Tool change time(T-T) | 2.5s |
Positioning accuracy(National standard) | |
Positioning accuracy（X/Y/Z) | 0.008mm |
Re-positioning accuracy（X/Y/Z) | 0.005mm |
Machine dimension | |
LxWxH | 2460×2355×2860mm |
Machine weight | |
Max.loading of worktable | 500kgs |
Machine weight | 5500kgs |
