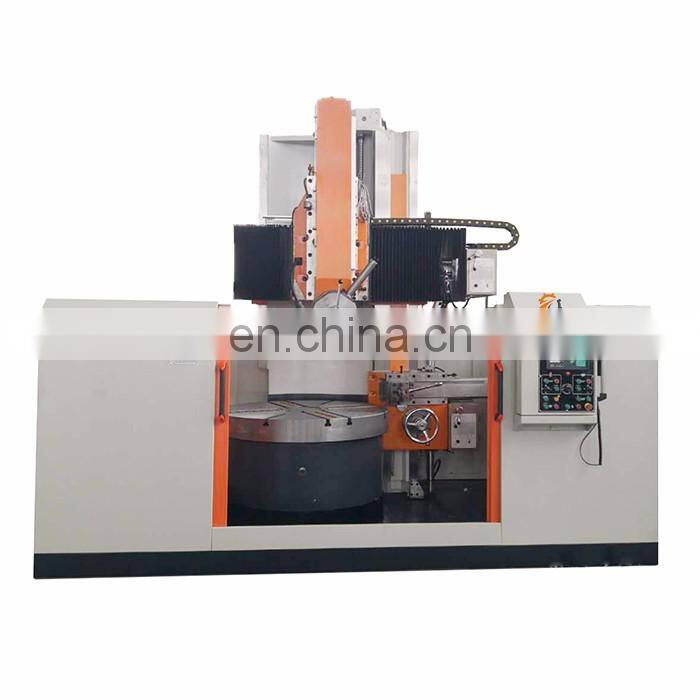

cnc single column vertical lathe CK5116 vertical CNC lathe machine for heavy cutting

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

Main Features:

1. Vertical CNC lathe machine with single column;

2. Rigid column and stable;

3. DRO optional;

4. Precise cutting for heavy metal parts.

Specification	C5116D
Table dia.	1400mm
Max. turning dia.	1600mm
Max. workpiece height	1000/1200/1400/1600mm
Max. workpiece weight	5t
Table speed range	5-160r/min
Table rotation speed step	16
Vertical toolpost feed range	0.8-86 r/min
Vertical side toolpost feed step	12
Horizontal travel of vertical toolpost	915mm
Vertical travel of vertical toolpost	800/1000mm
Horizontal travel of side toolpost	650mm
Vertical travel of side toolpost	1000mm
Crossam ram travel	850/1050/1250/1450mm
Tool bar section size(Lx W)	30x40mm
Main motor power	30kw
Feeding motor power	1.3/1.8kw
N.W	12.7t
Overall size(LXWXH)	2662x2800x3550mm

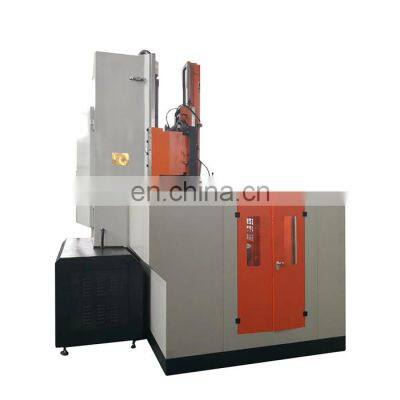

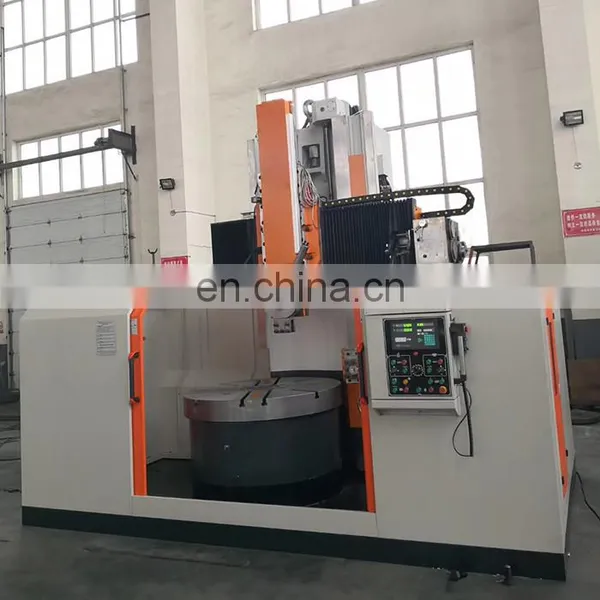

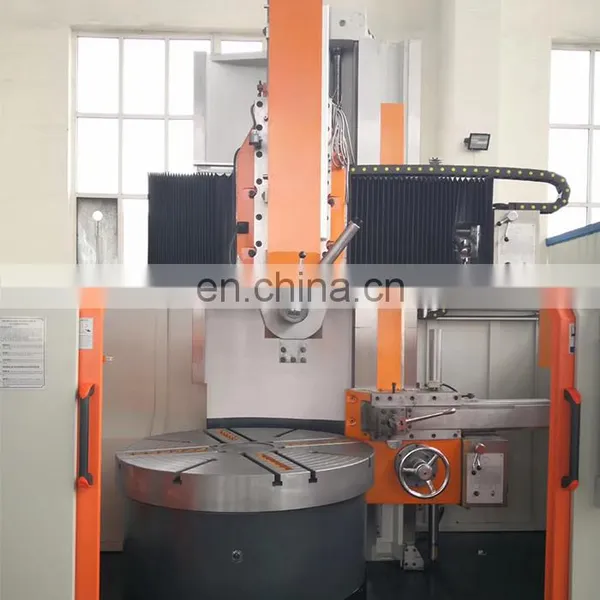

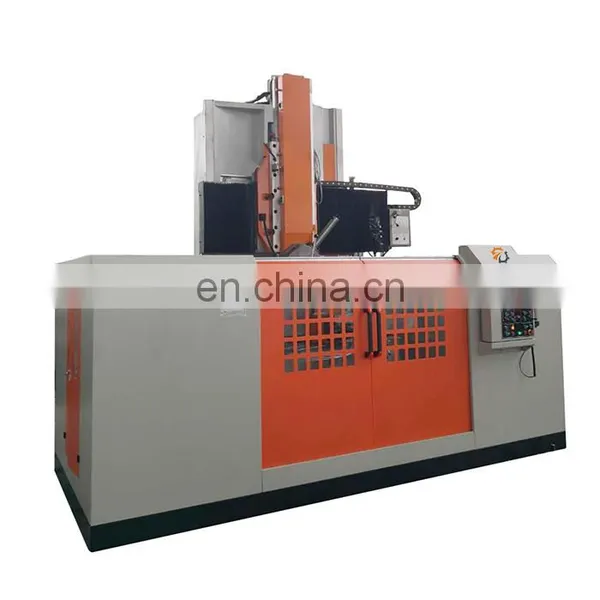

Detailed Images

Company Profile

Professional Service

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2: Can we visit your factory before order?

A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3: Do you have a stock?

A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4: What’s the MOQ?

A4: One set only.

Q5: How about your quality?

A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6: Do you have professional engineers?

A6: Yes, we have professional engineers and designers. We can provide OEM services.

Q7: Can you provide customized machines?

A7: Yes, we can design and manufacture according to your specific requirements.
