micro cnc lathe CK6132 mini torno cnc para metal for cnc turning machining

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

CNC lathe CK6132 Features:

High rigidity casting bed
High precision spindle bearing
Bed guideways industively hardened

Specification	CK6132x500/750/1000mm
Max.swing over bed	Φ320 mm
Max.swing over carriage	Φ150 mm
Distance between centers	500/750/1000mm
Spindle bore	40mm
Spindle nose	A2-5
Rail width	212mm
Taper of spindle bore	MT5
Chuck	6''
Range of speed (Variable)	150-2500 rpm
X axis travel	180mm
Z axis travel	500/750/1000mm
X/Z rapid speed	4/7m/min
X/Z screw	2004/4006
Station of toolpost	4 or 6
Max. section of tool	2020mm or 1616mm
Stroke of tailstock sleeve	100mm
Dia./hole of tailstock sleeve	32mm/MT3
Main motor power	2.2kw or 3.7kw
Coolant pump power	120w
Overall dimenstion (LWH)	1600/1920/2100x1120x1750mm
Packing size (LWH)	1815/2120/2300x1300x2000mm
NW/GW	800/900/1050kg;950/1050/1200kgs

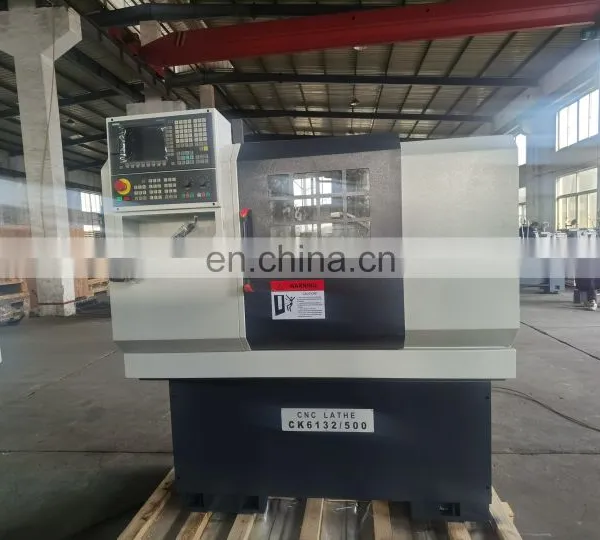

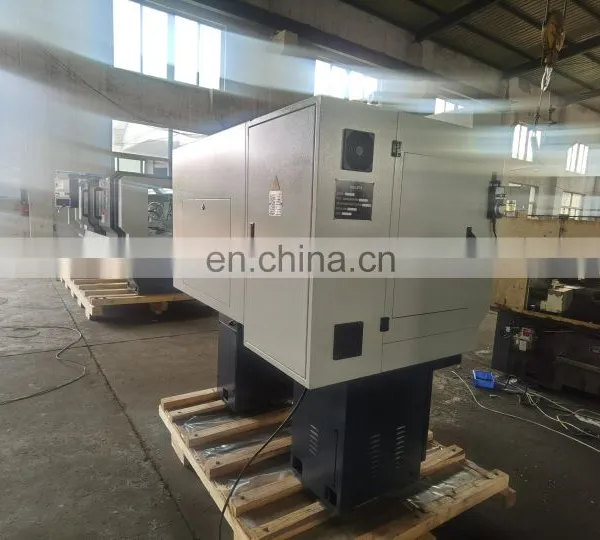

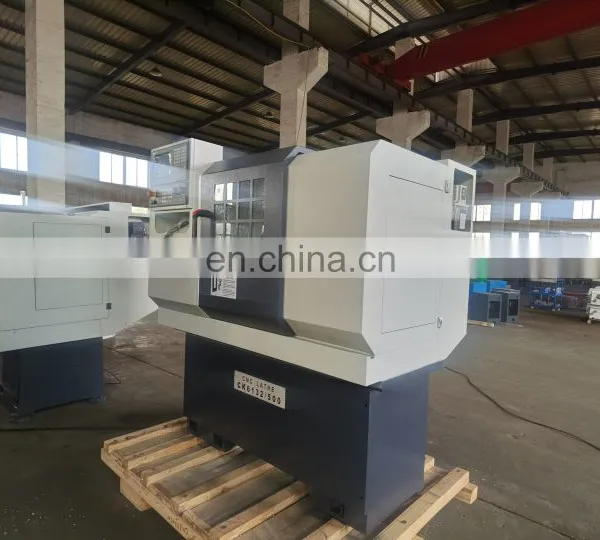

Machine pics

Machine Accessories

Standard Accessories:

Cooling system
Auto-lubricating system
Work lamp
GSK-980TDc controller with feeding servo motor
4-Position electrical tool post
Manual 3-jaw chuck

Optional Accessories:

GSK218M controller

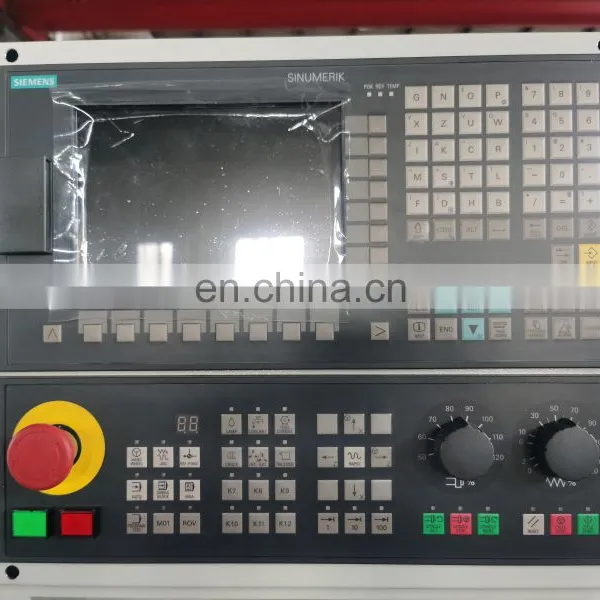

Simens 808D controller, Advance controller
Fanuc Oi TF controller
6-Position electrical tool post
Hydraulic chuck
Bar Auto-feeding (KT-16 and KT-20)

Gang tools type
