Home > Products > CNC LATHE > vertical lathe machine C5123 for metalworking from Chinese factory

vertical lathe machine C5123 for metalworking from Chinese factory

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Products Recommend

Product Description

Specification	C5123
Working table	2240×2200×1300mm
Max. turning diameter of railhead	2300mm
Max. working height	1300mm
Max. weight of workpiece	8T
Worktable diameter	2000mm
Speed range of table	3.2-80rpm
Speed-step of table	16
Travel of railhead (Horizontal)	1210mm
Travel of railhead (Vertical)	800mm
Travel of sidehead(Horizontal)	630mm
Travel of sidehead(Vertical)	1150mm
Travel of crossbeam	890mm
Feed range of railhead and sidehead	0.8-86mm/min
Moving degrees limit of railhead	±30°
Cutting section of tool bar(W×H)	30×40mm
Power of feeding motor	1.3/1.8kw
Power of main motor	30kw
Overall dimensions	3235×3240×3910mm
Weight of machine(about)	19.5T

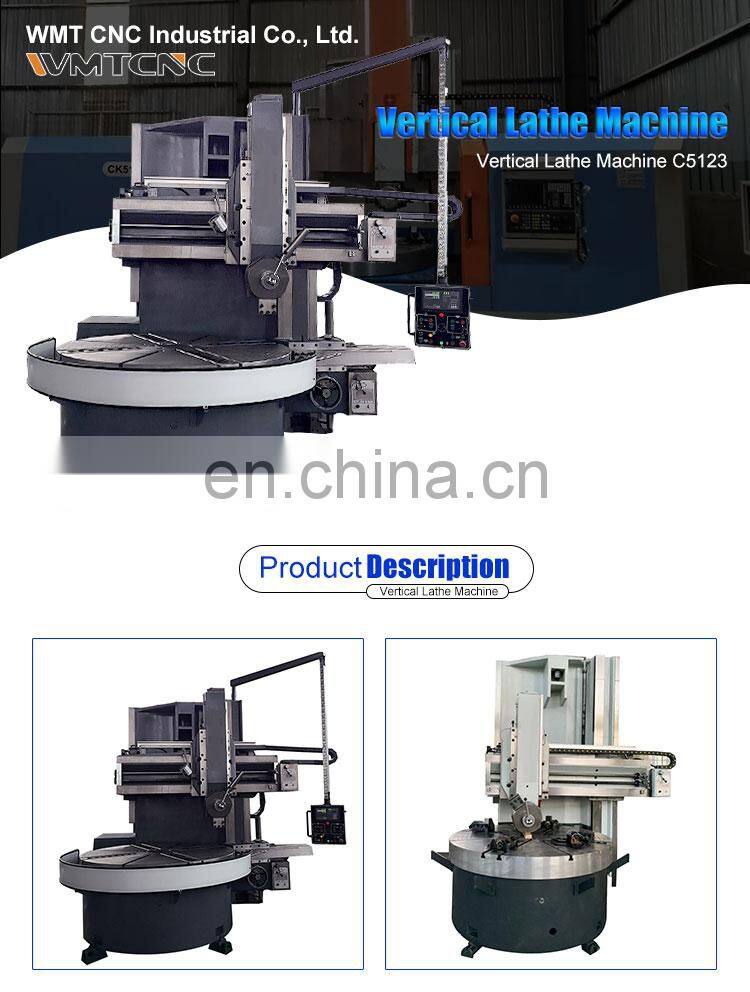

Detailed Images

Accessory	Main configuration
Chuck jaw	2 axis DRO
Tool holder	Main motor
Foundation block	Gear box gear
Anchor bolt	Electrical
Hexagon nut	Hydraulic elements
Gasket	PLC
Chuck wrench
Hexagon wrench
Square socket bent wrench

Company Profile

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?

A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?

A4:One set only.

Q5:How about your quality?

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?

A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?

A7:Yes, we can design and manufacture according to your specific requirements.

Company Profile

Jingjiang Fuji Technology Co., Ltd.

Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
