Product Description
Product Description

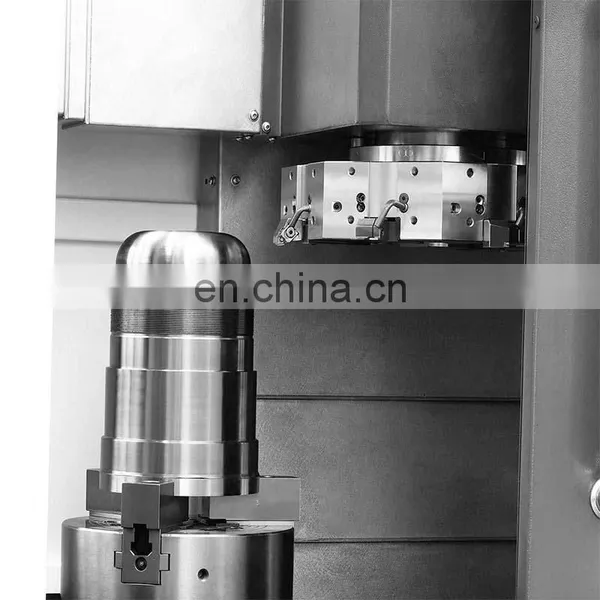

VK600 vertical type cnc lathe machine with 8-station turret
Main Features:
1. Space saving, footprint 50% smaller.
2. Easy setup.
3. No deflection from gravity.
4. Weight doubled, power tripled.
5. Standard 8-station turret-stands up for versatile production requirements.
6. Compact design, plus, square base casting minimizes floor space requirements and increases anti-vibration forces.
7. High speed spindle unit with powerful servo drive motor-offers high speed finish cutting, and low speed heavy duty cutting in the same machine
Specification | Unit | VK600 | ||
Capacity | Max. swing dia | mm | Ø750 | |
Max. cutting dia | mm | Ø600 | ||
Max. cutting height | mm | 600 | ||
Chuck | Chuck type | Hydraulic chuck | ||
Chuck size | inch | 21"*18" | ||
Spindle | Spindle speed | rpm | 1000,*Gear box | |
Main motor power | kW | 15/18,*18.5,*22 | ||
Spindle nose | A2-11 | |||
Turret | Center height | mm | 160 | |
No. of tool | nos | 8-station | ||
Tool shank size | mm | 40X40 | ||
Axis | X/Z axis travel | mm | 450(+400:-50)/600 | |
X/Z axis rapid traverse | m/mm | 15/18 | ||
Accuracy | Positioning X/Z | mm | 0.015/0.015 | |
Repeatability X/Z | mm | 0.005.0.008 | ||
Matching | IT | IT6 | ||
Others | Power consumption | kVA | 35 | |
Overall dimension (LxWxH) | mm | 2300X2000X3400 | ||
Weight (about) | kg | 11500 |
