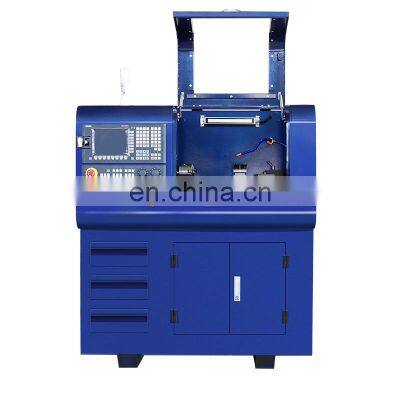

Desktop CNC Lathe Machine CNC210 With Siemens808D For Hobby School And Training

Jingjiang Fuji Technology Co., Ltd. Gold Verified Supplier

4Yrs

Desktop CNC Lathe Machine CNC210 With Siemens808D For Hobby School And Training thumbnail-1

Desktop CNC Lathe Machine CNC210 With Siemens808D For Hobby School And Training thumbnail-2

Desktop CNC Lathe Machine CNC210 With Siemens808D For Hobby School And Training thumbnail-3

Desktop CNC Lathe Machine CNC210 With Siemens808D For Hobby School And Training thumbnail-4

Desktop CNC Lathe Machine CNC210 With Siemens808D For Hobby School And Training thumbnail-5

Desktop CNC Lathe Machine CNC210 With Siemens808D For Hobby School And Training photo-1

Desktop CNC Lathe Machine CNC210 With Siemens808D For Hobby School And Training photo-2

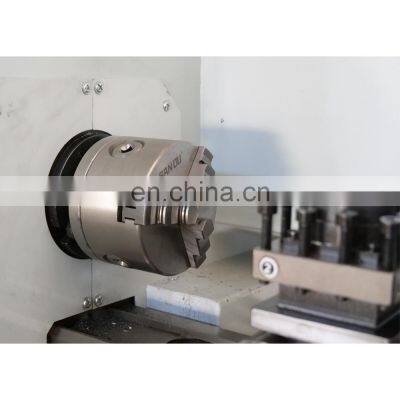

Desktop CNC Lathe Machine CNC210 With Siemens808D For Hobby School And Training photo-3

Desktop CNC Lathe Machine CNC210 With Siemens808D For Hobby School And Training photo-4

Desktop CNC Lathe Machine CNC210 With Siemens808D For Hobby School And Training photo-5

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Product Description

Main Configuration:

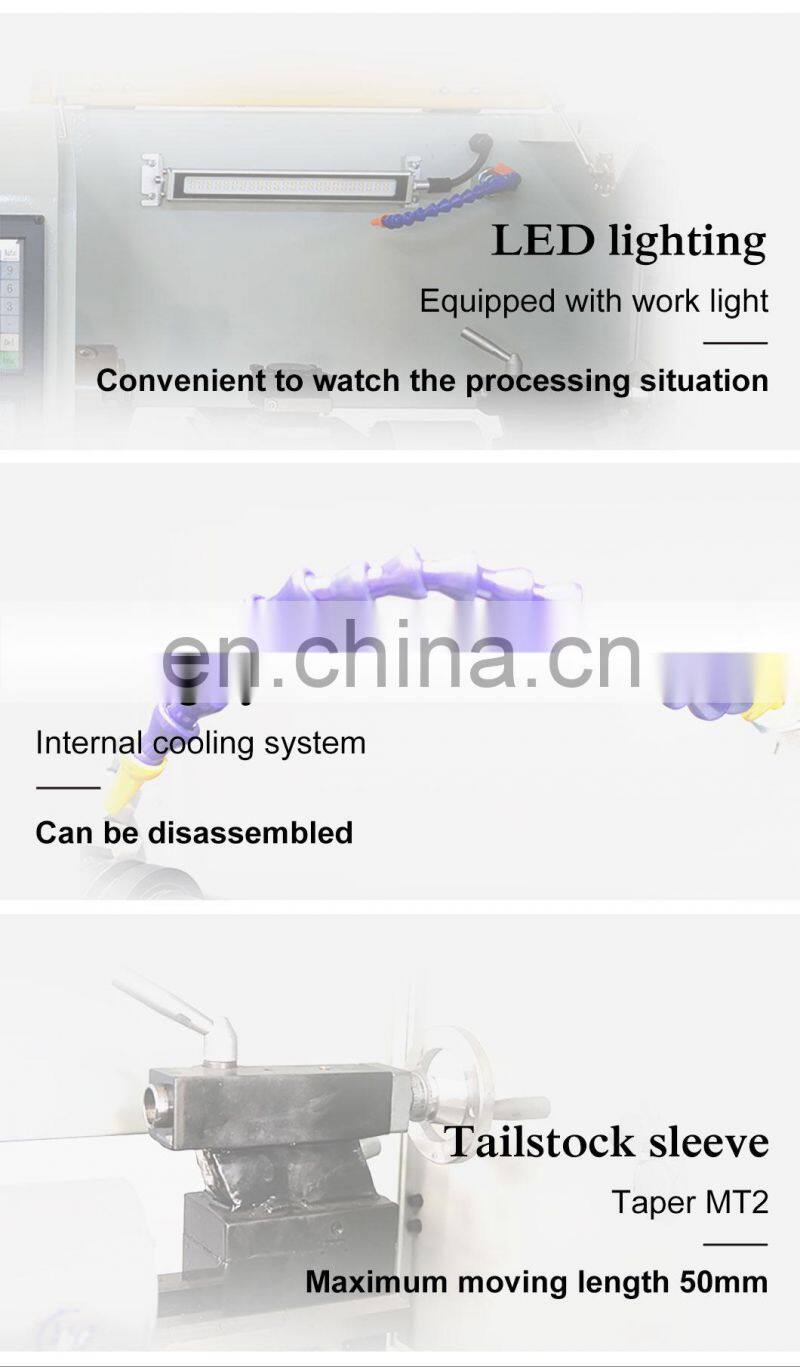

Work lampCoolant system
Manual 3-jaw chuck
Electrical handwheel

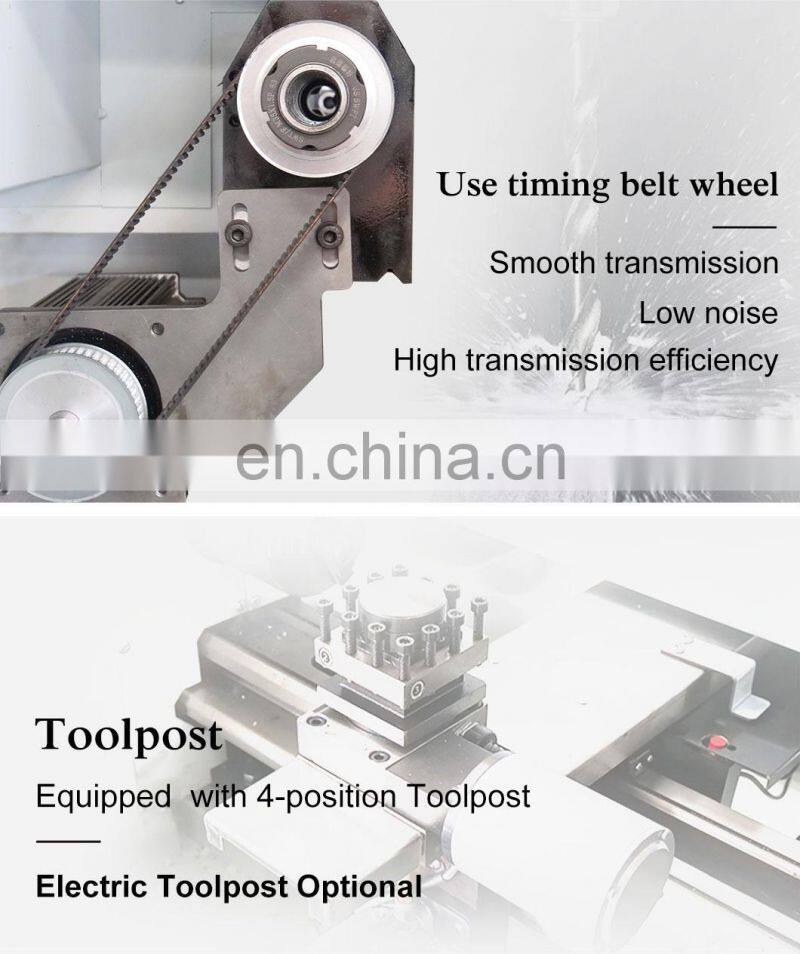

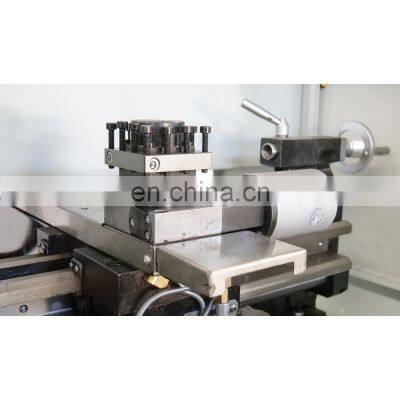

4-position electrical toolpost
Manual lubrication system

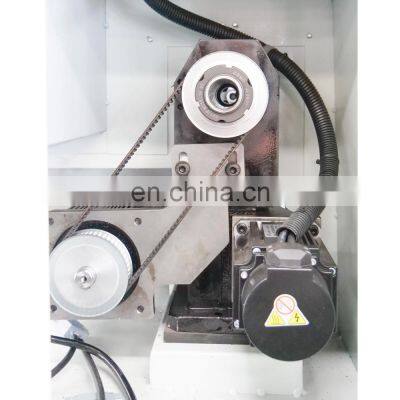

X/Z feeding motor and main motor: servo motor
Machine stand with drawer
Voltage:110V/60HZ/1HP

Main Features:

1. X/Z feeding motor and main motor: servo motor.

2. Machine stand with drawer.

3. Lower noise and high precision.

4. Suitable for educational training and mould machining.

5. Small size and cheap price.

Specification	CNC210
Max. swing over bed	210mm
Distance between centers	400mm
Rail width	100mm
Spindle bore dia.	26mm
Spindle taper	MT4/5C (Optional)
Spindle speed	3000rpm
Tool post	4-position
X-axis travel	105mm
Z-axis travel	300mm
X rapid speed	5000mm/min
Z rapid speed	5000mm/min
Spindle motor power	1.2kw
Main motor type	Srevo motor
Controller system	SIEMENS808D
X motor torque	1.9N.m
Z motor torque	1.9N.m
Min. setting unit	0.001mm
Tailstock dia.	22mm
Tailstock tavel	50mm
Tailstock taper	MT2
Packing size(without stand)	1170X700X860mm
Overall size	1300X800X1500mm
N.W(without stand)	200kgs
N.W	230kgs
Voltage	110V/60HZ/1HP

Product Details

Company Profile

Professional Service

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2: Can we visit your factory before order?

A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3: Do you have a stock?

A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4: What’s the MOQ?

A4: One set only.

Q5: How about your quality?

A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6: Do you have professional engineers?

A6: Yes, we have professional engineers and designers. We can provide OEM services.

Q7: Can you provide customized machines?

A7: Yes, we can design and manufacture according to your specific requirements.
