Z5045 Multi-functional Vertical Drilling Machine with CE Standard

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

Machine Specification

Features

1,Drilling,Milling and Tapping.

2,Headstock and worktable up and down perpendicularly.

3,Head swivels 360 ° horizontally

4.Gear driven lower noise

5,Positive spindle lock

Specification	Z5045
Max.drilling capacity	Φ45mm
Spindle taper	MT3/MT4/R8
Spindle travel	Φ130mm
Step of spindle speed	6 steps

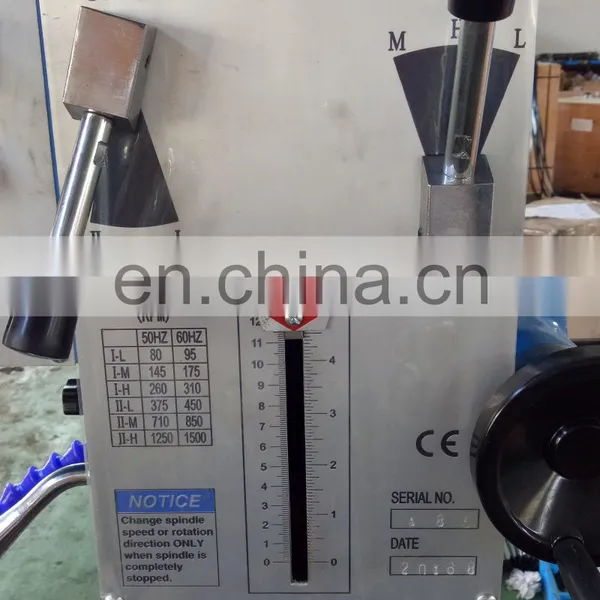

Range of spindle speed 50Hz	80-1250rpm
60Hz	95-1500rpm
Min.distance from spindle axis to column	290mm
Max.distance from spindle nose to worktable	700mm
Max.distance from spindle nose to stand table	1125mm
Max.travel of headstock	Φ250mm
Swivel angle of headstock(horizontal/vertical)	360°
Max.travel of worktable bracket	Φ600mm
Worktable size of avaliablity	730×210mm
Swivel angle of table horizontally	±45°
Size of stand worktable of avaliability	417×416mm
Motor Power	0.75kw/1.1kw/1.5kw
Speed of motor	1400rpm
N.W/G.W	470/530kgs
Packing size	1850×950×1000mm
Loading amount/20" container	12pcs

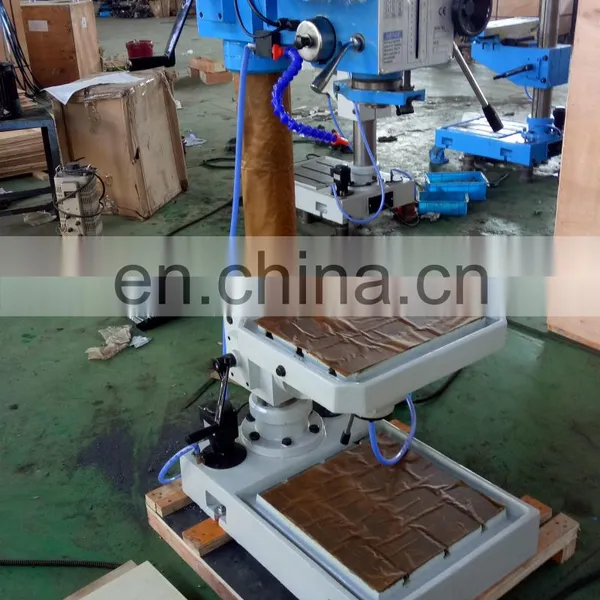

Details Images

Machine Accessories

Standard Accessories

Drill chuck 1-13mm/B16
Draw bar
Allen wrenchs
Wedge
Tie rod

Optional Accessories.

Halogen lamp
Coolant system
58pcs clamping kits
Face milling cutter Φ63mm
Milling chuck(8pcs/set)
H/V precision rotary table HV-150mm
Auto-tapping electrical
Millingl vice QH-125mm
Double speed motor
