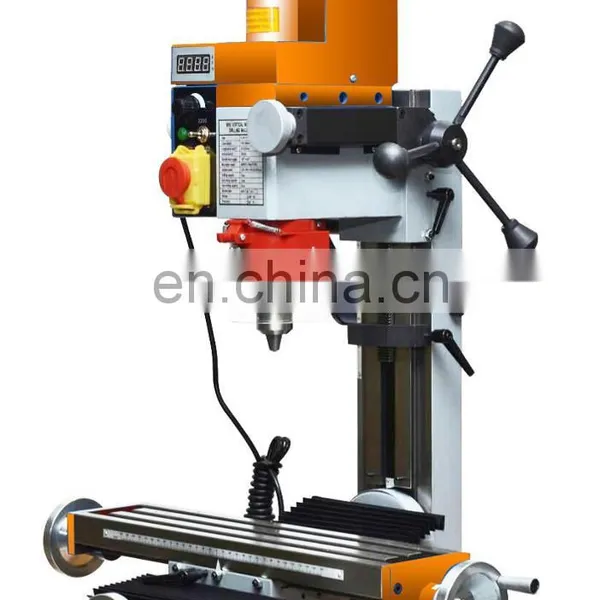

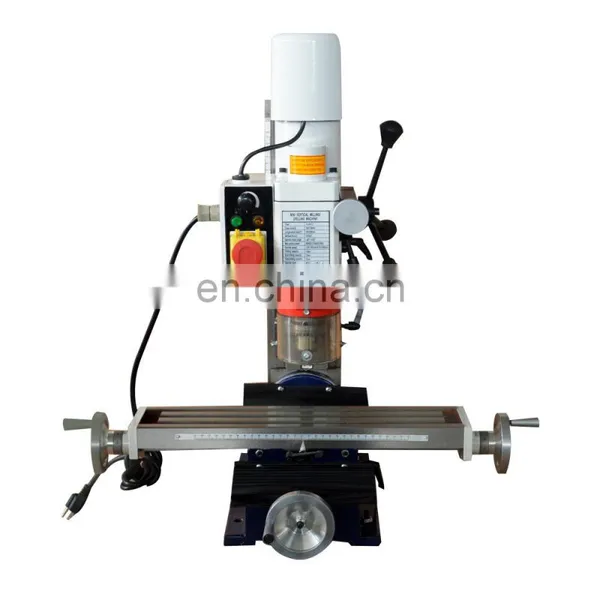

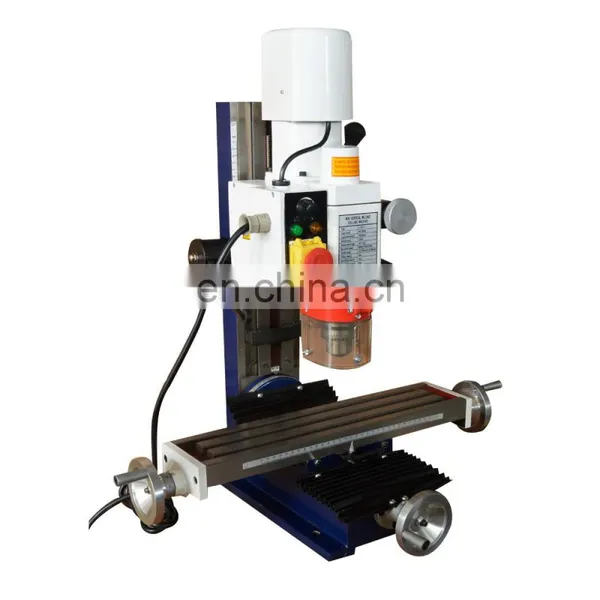

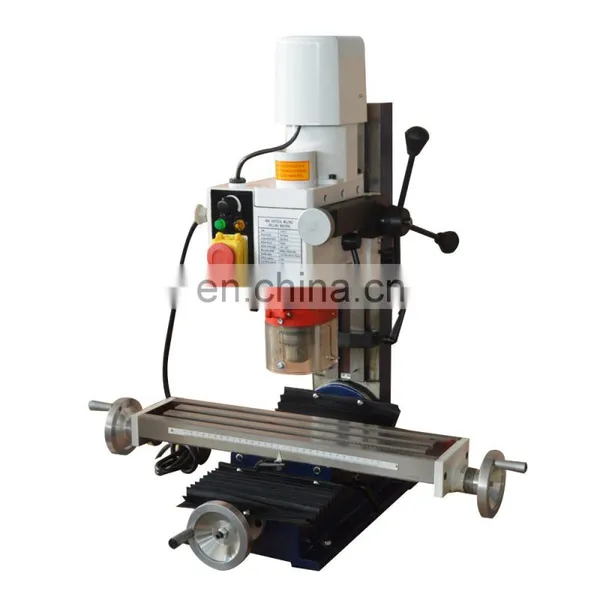

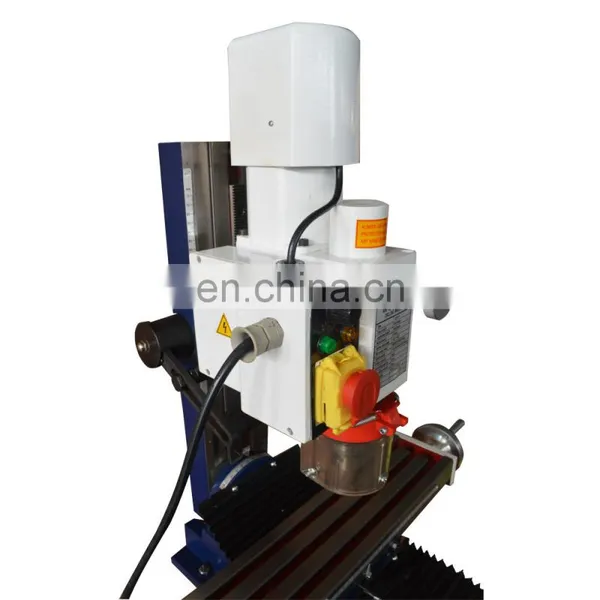

ZAY7013V milling and drilling machine for metal working

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Features:

Variable speed Spindle micro feed DC motor Positive spindle lock Imported speed control unit

XJ9512 MINI milling machine
Technical spec.	ZAY7013V
Max. Drilling capacity	13mm
Max face mill capacity	16mm
Max end mill capacity	30mm
Max. distance from spindle to table	300mm
Working table size	460x110mm
Swivel angle of headstock	+_45 degree
Spindle taper	MT3/R8
Spindle speed	L:50-1100RPM;H:120-2500RPM
X-axis travel	300mm
Y-axis travel	130mm
Z-axis travel	220mm
Motor power	550W/brushless motor
N.W./G.W.	65/85KGS
Packing size(LXWXH)	570x550x850mm
