High quality fresadora universal X6325U vertical and horizontal metal mini milling machine from China

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

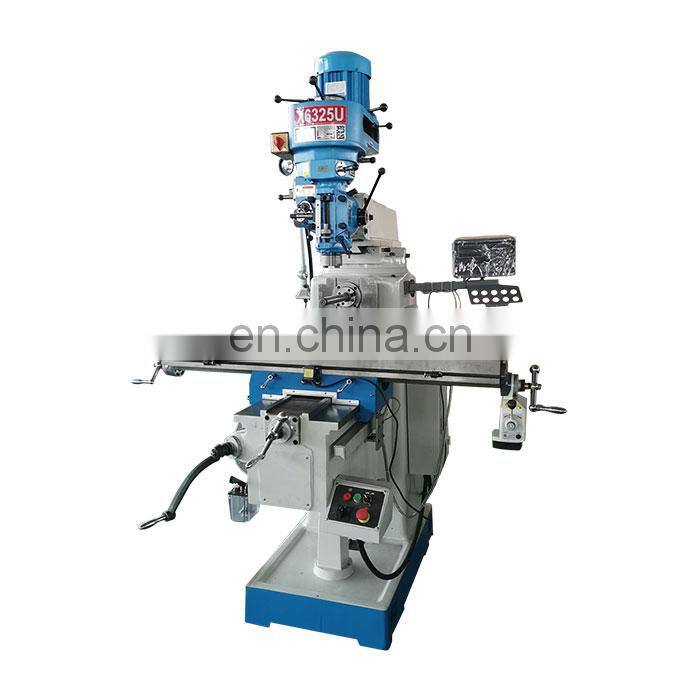

X6325U vertical and horizontal metal mini milling machine

Metal Milling Machine Main Features:

1. Rectangular guideway on Y and Z axis makes the machine stable and rigid. 2. Fixed structure is used to connect the mill head without addapter, which makes the cut intensity well.

Specificaiton	X6325U
Table size	1270×254mm (Optional:1370×254mm)
T-slotes (No./Width/Pitch)	3/16/65mm
Table travel (X/Y/Z)	800×400×400mm
Spindle taper:vertical/horizontal	R8/NT30(V),NT40
Ditance between horizontal nose and table surface	0-400mm
Ditance between spindle axis and ram surface	270mm
Spindle speed range	80-4200rmp(variable)
		66-4540( vertical,16 steps)
		40-1300rpm( horizontal, 12 steps)
Arm travel	400mm
Main motor power	3KW(vertical)
Main motor power		4KW(horizontal)
Machine overall size (LWH)	1600×1550×2150mm
Machine weight	1380kg

Machine Details

Optional accessories:

Company Profile

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?

A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?

A4:One set only.

Q5:How about your quality?

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?

A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?

A7:Yes, we can design and manufacture according to your specific requirements.
