boring milling machine TK611C/4 china heavy horizontal milling boring machine with CE

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

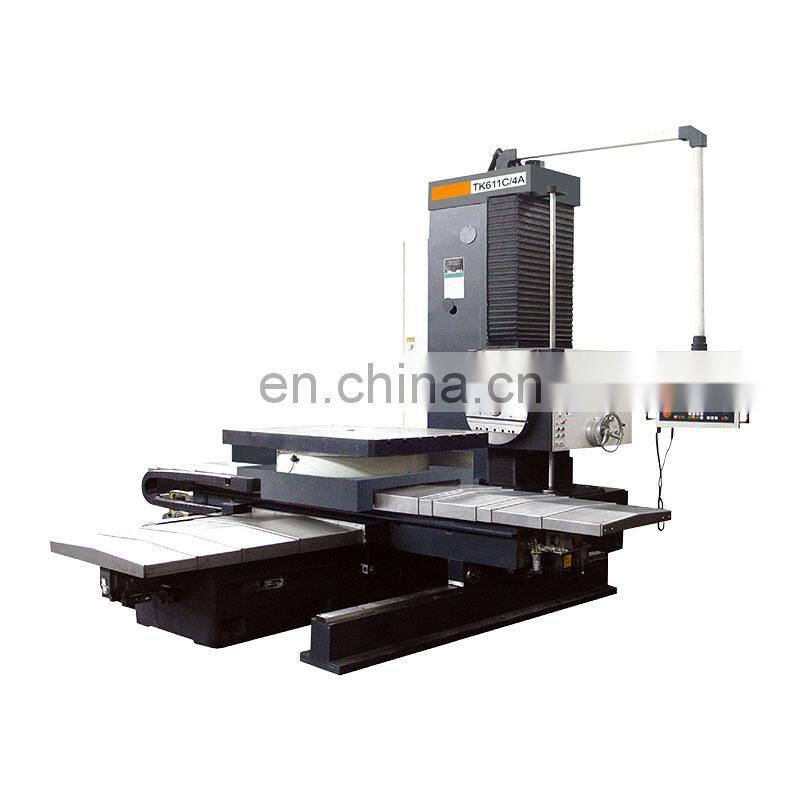

Horizontal Milling and Boring Machine TK611C/4 Main Features:

1. This machine equipped with a single column, side hung box, four-point positioning worktable, manual rotation (optional Hirth CNC turret 360x1 °indexing).

2. X, Y, Z axis controlled by CNC system, could realize simultaneous motion.

3. Boring axis’ flexible and axis of facing head are controlled by servo motor, can realize automatic processing.

4. X, Y, Z axis with rectangular sliding guide .Teflon plastic paste process, shock absorption, and high precision. 5. The spindle box with counterweight balance, spindle and axis of facing head are controlled by AC servo motor.

Specification	TK611B/1 (TK611B/1A)	TK611C/4 (TK611C/4A)
Table size(L*W)	1320 x1010mm
Spindle dia.	110mm
X Travel	850mm	1800 mm
Y Travel	900mm (830 mm)	1200 mm (1105 mm)
Z Travel	1300mm
W Travel	550 mm
Worktable Travel	Manual type( ± 360° CNC control)
Spindle center line to table	5-905 mm (835 mm)	5-1205 mm (1105 mm)
T slot(NWD)	722mm125mm
Table loading	5T
CNC controller	SIEMENS 828D or FANUC Ol MD
Axes quantity	X/Y/Z （X/Y/Z/B ）
Spindle taper	BT50(P50T-1)
Spindle speed	12-1100rpm
Main motor power& torque	F:11/15Kw (1100Nm)
Main motor power& torque		S:12/16Kw (1100Nm)
Max.boring/drilling dia.	240m m/50mm
Max.axial feeding force on spindle	13000 Nm
X/Y/Z Rapid traverse	5000m m/m in
X/Y/Z Feeding speed	5-1000mm/min
Feeding speed	0.5-1000mm/min (Normal)
W Rapid traverse	2060mm/min (Normal)
Radial stroke of facing head tool holder	160mm
Facing head speed	4-125rpm
Max.machining dia. of facing head tool holder	φ630mm
Max.permitted torque of facing head	1100 Nm
Feeding speed of facing head	0.2-330mm/min
Rapid traverse of facing head tool holder	1370mm/min
X/Y/Z Positioning accuracy	0.026/0.03/0.03mm	0.04/0.03/0.03mm
X/Y/Z/W (GB/T17421.2-2000) Repeated accuracy	0.015/0.015/0.015/—mm
Machine size(LWH)	5.3 x 2.6 x 2.9m	5.3x3.7x3.1m
Weight	11T	16.5 T

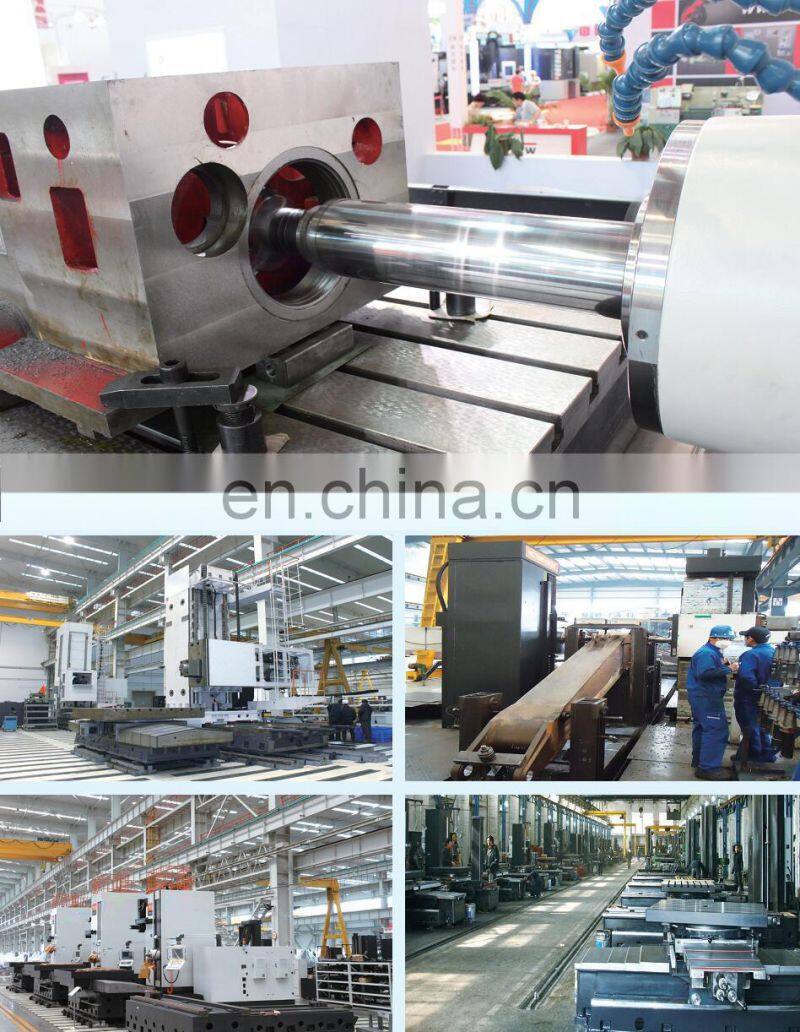

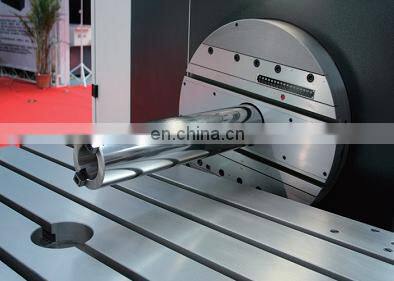

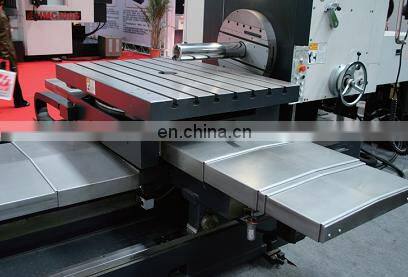

Detailed Images

Company Profile

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?

A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?

A4:One set only.

Q5:How about your quality?

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?

A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?

A7:Yes, we can design and manufacture according to your specific requirements.
