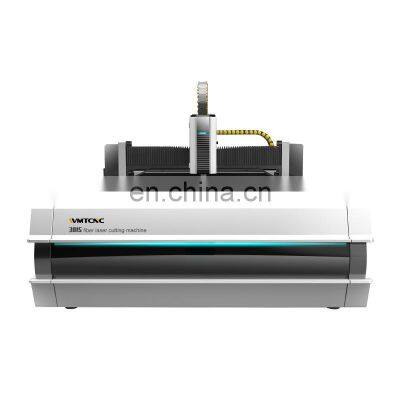

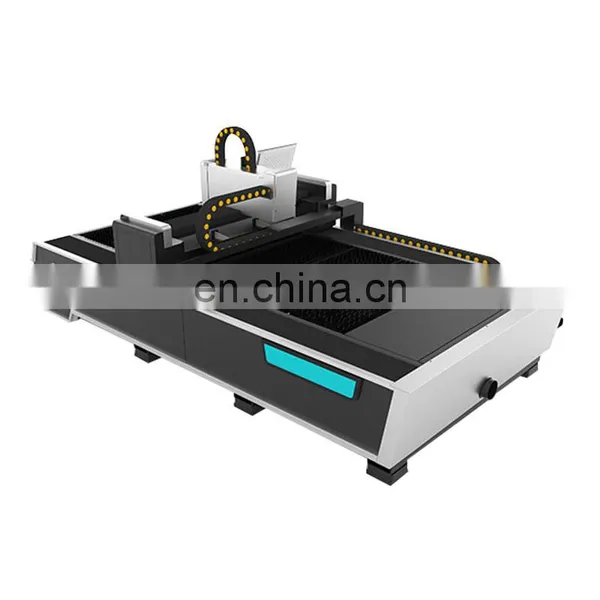

2022 hot sale fiber laser cutting machine 3015C for Sheet Metal Cutting

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Single platform fiber laser cutting machine 3015C Main Features:

1. Fiber laser cutting machine includes a cooling, lubricating and dust collection system guaranteeing durability and longevity. The strict assembly process and the world’s top brand parts ensure high cutting precision and powerful cutting ability, so as to maximize the productivity and profitability of sheet metal fabricators.

2. High impact resistance performance, Good integrity, rigidity and toughness.

3. Integrated casting aluminum beam, no rivet nailing at two ends, more stable. 4. Professional sheet cutting system cypcut 2000C. 5. More user-friendly human-machine interaction. 6. Simple, economical, practical and convenient. 7. Highly integrated and highly intelligent with file reading, design, output and processing control all in one. 8. The single platform laser cutting machine is suitable for 1000w-6000w laser cutting. 9. The cutting thickness is related to the laser power.

Carbon steel plate：0.5-22mm Stainless steel plate：0.5-12mm Aluminum plate：0.5-12mm

Specification	3015C
Cutting range	3000mm*1500mm
Max. linkage speed	60m/min
Tube size range	Round tube Φ20-Φ220mm Square tube Φ20-Φ150mm
Max. loading of pneumatic chuck	300kg
Automatic adjustment of cutting gas pressure	O2
Automatic tube inspection	Edge-seeking, center-finding
Table load bearing	750kg
Machine overall dimensions	With 3m rotating shaft: 520036002000mm With 6m rotating shaft: 820036002000mm
Overall weight	With 3m rotating shaft: 3750kg With 6m rotating shaft: 4209kg
Z axis travel	315mm
Max. acceleration	0.6G
Positioning accuracy	±0.03mm
Repositioning accuracy	±0.02mm
Requirements for tubes	Diameter＜φ50mm Wall thickness of tubes≥1.2mm； Diameter≥φ50mm Wall thickness≥2.5% of Diameters of tubes
Min. tube material surplus	110mm
W axis rotation angle	Unlimited n*360
Max. rotational speed of W axis	75RPM
3m rotary axis positioning accuracy	0.03mm
Repeated positioning accuracy of 3m rotating axis	0.02mm
6m rotary axis positioning accuracy	0.03mm
Repeated positioning accuracy of 6m rotary axis	0.02mm
U axis max. moving speed	50m/min
20mm square position size difference	≤0.50mm

Detailed Images

Cast Aluminum Crossbeam:

It adopts the low-pressure steel film casting process, so the crossbeam has the characteristics of high density, high rigidity and light weight, which can obtain higher dynamic response and improve processing efficiency.

Plate Welding Heavy Work Bed:

High impact resistance performance, Good integrity, rigidity and toughness; Integrated casting aluminum beam, no rivet nailing at two ends, more stable.

Professional Sheet Cutting System Cypcut 2000C:

Cypcut Laser Cutting System; More user-friendly human-machine interaction; Simple, economical, practical and convenient; Highly integrated and highly intelligent with file reading, design, output and processing control all in one.

Samples & Application: 1. The plate is specially used for cutting 0.5-25mm carbon steel plate, 0.5-16mm stainless steel plate, cold-rolled plate, electrolytic plate, 0.5-16mm aluminum alloy plate, 0.5-10mm brass and red copper and other metal materials.

2. Fiber laser cutting machine has a wide range of applications. It is usually used in automobile manufacturing, hardware products, kitchenware, sheet metal processing, advertising industry, lighting processing, fitness equipment and other popular industries.

Company Profile

FAQ

Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?
A4:One set only.

Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
