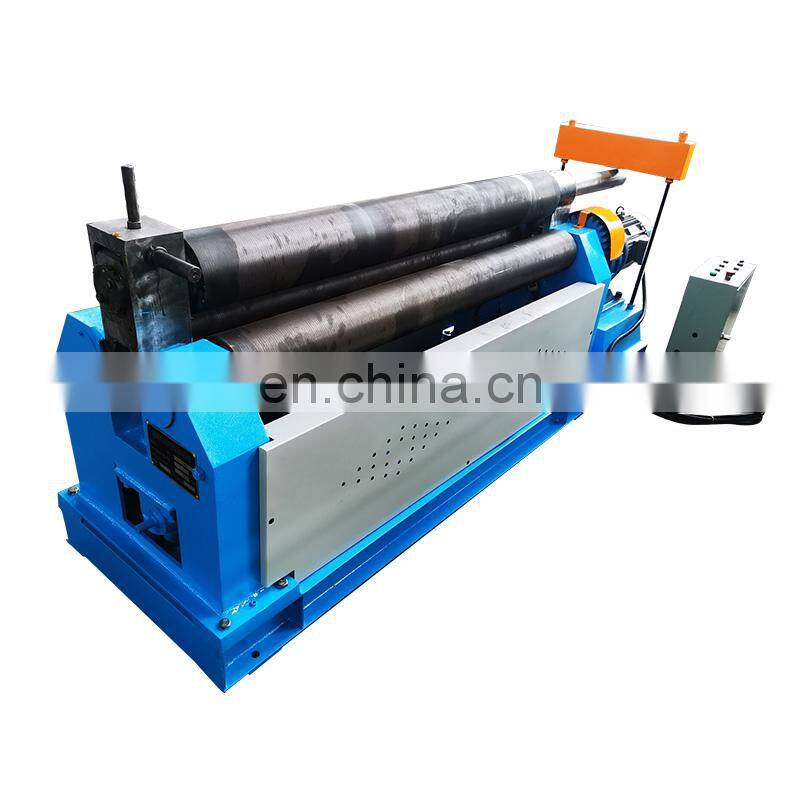

plate bending press rollers W11- 6x3200 sheet metal plate mechanical three rolling machine

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

Machine Features:

1. The machine adopts the four-roller structure with the upper roller as the main drive, both upward and downward movement through hydraulic motors powered.

2. The lower roller makes vertial movements and imposes a force on the piston through the hydraulic oli in the hydraulic cylinder so as to clamp the plate tight.

3. Side rollers are arranged on the two sides of the lides of the lower roller, and make inclining movement along the guide rail, and provide drive through the screw, the nut, the worm and the leadscrew.

4. The advantage of the machine is that the preliminary bending and rolling of the top ends of the plates can be conducted on the same machine.

Specification	Max Thicknessof Plate (mm)	Max Width of plate (mm)	Yielding Limit of Sheet (mpa)	Coiling Speed (m/min)	Min Full Loading Diameter (mm)	Diameter of Top shaft (mm)	Diameter of Bottom shaft (mm)	Central distance between Bottom Shafts (mm)
W11-4×1500	4	1500	245	5	300	150	140	185
W11-6×1500	6	1500	245	5	450	160	160	250
W11-6×2000	6	2000	245	4.5	450	185	170	250
W11-6×3200	6	3200	245	4.5	380	240	180	280
W11-8×2000	8	2000	245	4.5	400	230	180	300
W11-8×2500	8	2500	245	4.5	600	230	180	300

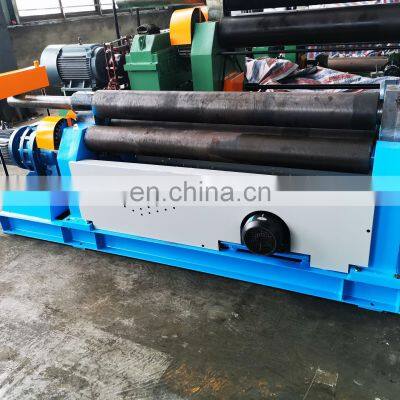

Detailed Images

Company Profile

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?

A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?

A4:One set only.

Q5:How about your quality?

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?

A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?

A7:Yes, we can design and manufacture according to your specific requirements.
