Home > Products > SHAPING & SLOTTING MACHINE > metal shaper machine horizontal gear planer BC6050 Shaping Machine

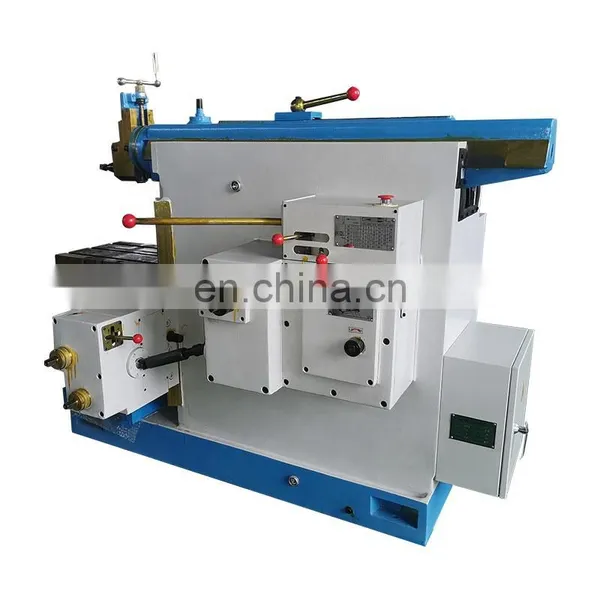

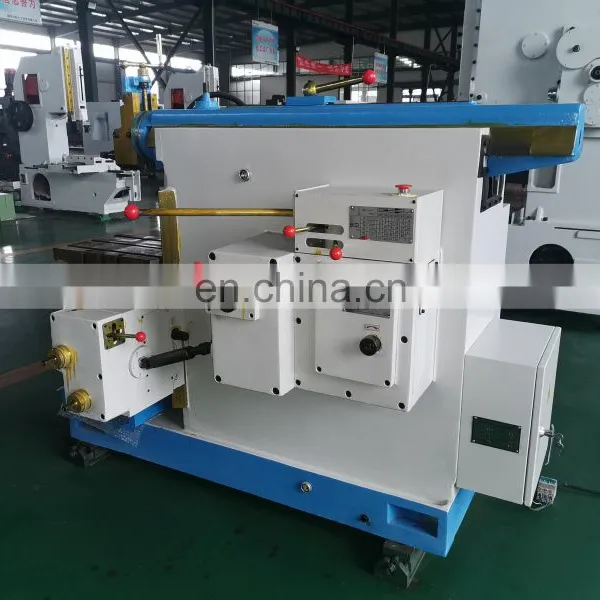

metal shaper machine horizontal gear planer BC6050 Shaping Machine

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

Product main features:

1. Shaper workbench can about rotational angle worktable moving structure with lateral and lifting; to planing inclined plane, thereby expanding the scope of use.
2. Feed system of shaper with a cam mechanism, adjust the feed quantity. Change the amount of knife, very convenient.
3. Shaper in knife system overload safety device is installed, when due to careless handling or by external influence and cutting overload when, take the knife itself slipping, nondestructive parts which guarantees the machine to normal operation.
4. The sliding pillow and bed rails and with speed gear pair and the main rail sliding surface, lubrication oil pump has played for circulating lubrication.
5. Shaper with parking brake mechanism, so the speed of transformation. When starting machine tools and parking, the power supply can not be cut off.

Specification	BC6050
Maximum planing length	630mm
Maximum distance from the bottom of the working table	385mm
lateral travel	630mm
Vertical stroke	360mm
Tool frame travel	120mm
Sleeper reciprocating times (per minute)	14/20/28/40/56/80
Main motor power	3W
The maximum size(width*thickness)of the handle	20×30mm
The size of the T groove in the center of the worktable	18mm
Angle of rotation	±60°(toolpost)
Workbench size	630×400/660×400mm
Shape size	2000×1300×x150mm
Machine tool weight (about)	1750/1870KG
Package dimensions	2000/1300/1650mm

Company Profile

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?

A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?

A4:One set only.

Q5:How about your quality?

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?

A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?

A7:Yes, we can design and manufacture according to your specific requirements.
