Product Description

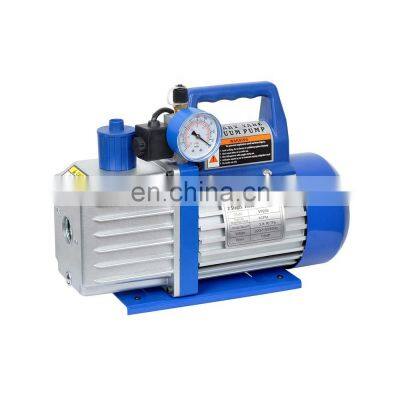

VP235 Pump Vacuum Pump Mini Vacuum Pump For Air Conditioning VP235
2.Copper wire motor,long service life.
3.Big sight glass for monitoring oil level,prevent oil lack.
4.The overall design of pump and motor is more portable.
5.Low maintenance cost
Technical Data | ||||
Model | VP235 | |||
50Hz | 3.5CFM , 100L/min | |||
60Hz | 4CFM , 114L/min | |||
Ultimate Vacuum | 3x10-1Pa , 25microns | |||
Stage | Dual Stage | |||
Power | 1/3HP | |||
Inlet Port | 1/4"&3/8"Flare | |||
Oil Capacity | 360ml | |||
Dimensions(mm) | 320x134x232 | |||
Weight | 11KG |
Single Stage | SC-1.0A | SC-1.5A | SC-2.0A | SC-2.5A | SC-3.0A | SC-4.0A | SC-5.0A | ||
Flow Rate | 220V 50Hz | 1.5CFM | 2.5CFM | 3.5CFM | 4.5CFM | 6CFM | 8CFM | 10CFM | |
42L/min | 70L/min | 100L/min | 128L/min | 170L/min | 226L/min | 283L/min | |||
110V 60Hz | 1.8CFM | 3CFM | 4CFM | 5CFM | 7CFM | 9CFM | 12CFM | ||
50L/min | 84L/min | 114L/min | 142L/min | 198L/min | 254L/min | 340L/min | |||
Ultimate Vacuum | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | ||
150 microns | 150 microns | 150 microns | 150 microns | 150 microns | 150 microns | 150 microns | |||
Power | 1/4HP | 1/4HP | 1/3HP | 1/3HP | 1/2HP | 3/4HP | 1HP | ||
Inlet Port | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"&3/8" | 1/4"&3/8" | 1/4"&3/8" | ||
Oil Capacity | 320ml | 300ml | 350ml | 350ml | 450ml | 700ml | 800ml | ||
Dimensions(mm) | 270x119x216 | 270x119x216 | 278x119x216 | 278x119x216 | 320x134x232 | 370x140x250 | 390x140x250 | ||
Weight | 5.3kg | 5.5kg | 6.5kg | 6.8kg | 10kg | 14kg | 14.5kg |
Dual Stage | 2SC-1C | 2SC-1.5C | 2SC-2.0C | 2SC-2.5C | 2SC-3.0C | 2SC-4.0C | 2SC-5.0C | ||
Flow Rate | 220V 50Hz | 1.5CFM | 2.5CFM | 3.5CFM | 4.5CFM | 6CFM | 8CFM | 10CFM | |
42L/min | 70L/min | 100L/min | 128L/min | 170L/min | 226L/min | 283L/min | |||
110V 60Hz | 1.8CFM | 3CFM | 4CFM | 5CFM | 7CFM | 9CFM | 12CFM | ||
50L/min | 84L/min | 114L/min | 142L/min | 198L/min | 254L/min | 340L/min | |||
Ultimate Vacuum | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | ||
25microns | 25microns | 25microns | 25microns | 25microns | 25microns | 25microns | |||
Power | 1/4HP | 1/3HP | 1/3HP | 1/2HP | 3/4HP | 1HP | 1HP | ||
Inlet Port | 1/4"Flare | 1/4"Flare | 1/4"&3/8" | 1/4"&3/8" | 1/4"&3/8" | 1/4"&3/8" | 1/4"&3/8" | ||
Oil Capacity | 180ml | 280ml | 360ml | 350ml | 700ml | 600ml | 700ml | ||
Dimensions(mm) | 270x119x216 | 270x119x216 | 320x134x232 | 320x134x232 | 370x140x250 | 370x140x250 | 390x140x250 | ||
Weight | 6kg | 7kg | 11kg | 11.8kg | 15kg | 15.5kg | 16kg |
