Home > Products > Elevator Parts > NV15-B1/B1 elevator shaft components guide rail bracket

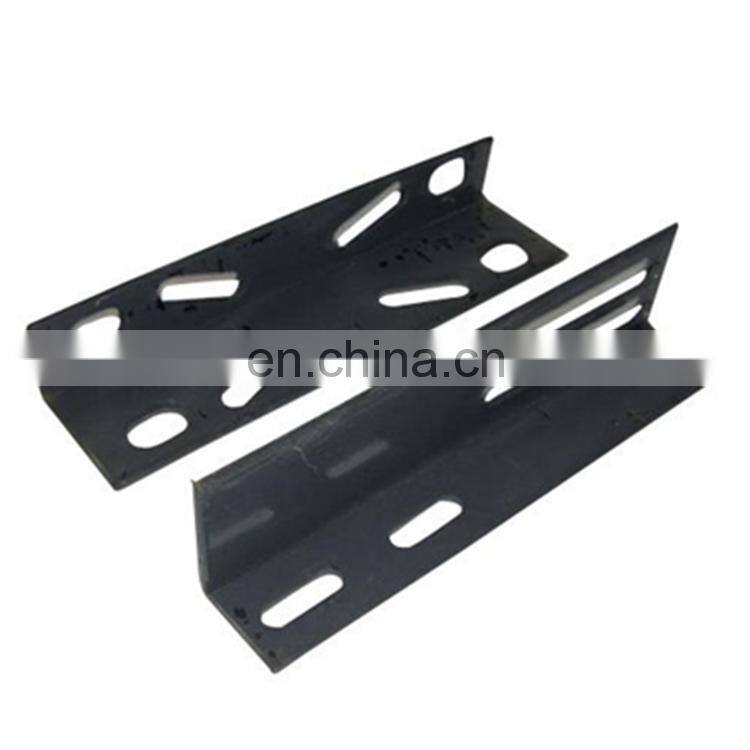

NV15-B1/B1 elevator shaft components guide rail bracket

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

Product Paramenters

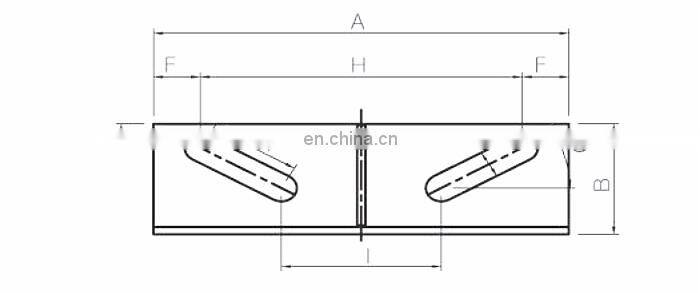

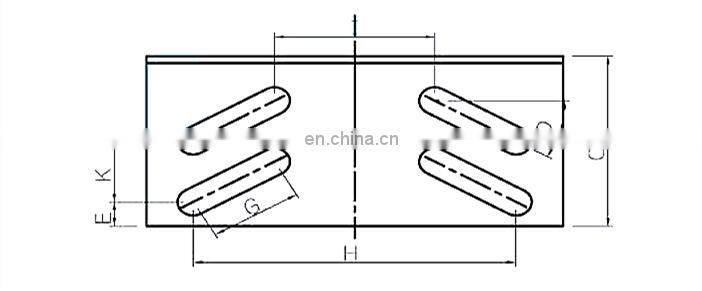

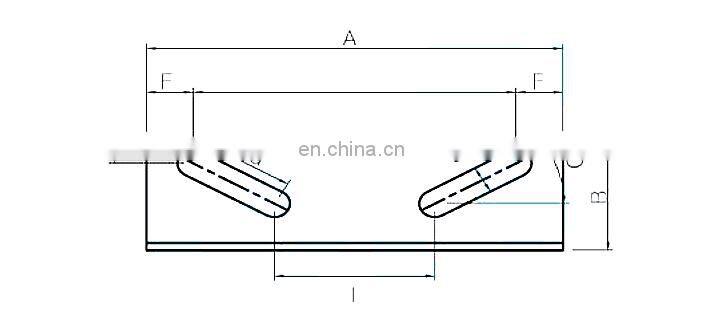

Nova Code	A±1	B±1	C±1	D	E	F	G	H	L±1
NV15-B1	130	50	75	11	12	22.5	27	85	47
NV15-B2	200	62	95	15	13.5	22.5	45	155	77
NV15-B3	270	65	100	19	13.5	25	54	220	126
NV15-B4	270	70	105	19	13.5	25	54	220	126

Nova Code	J	K	O
NV15-B1	4	28	45°
NV15-B2	5	34	30°
NV15-B3	6	34	30°
NV15-B4	8	34	30°

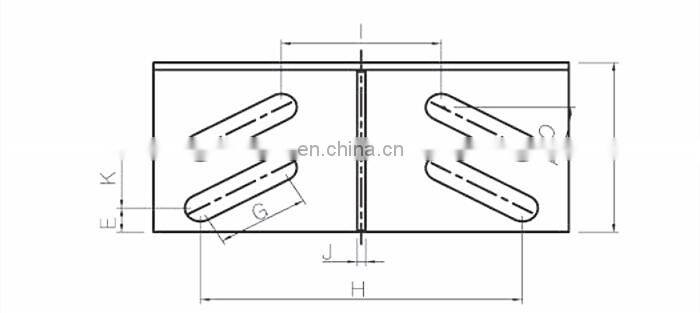

Nova Code	A±1	B±1	C±1	D	E	F	G	H	L±1
NV15-BR1	130	50	75	11	12	22.5	27	85	47
NV15-BR2	200	62	95	15	13.5	22.5	45	155	77
NV15-BR3	270	65	100	19	13.5	25	54	220	126
NV15-BR4	270	70	105	19	13.5	25	54	220	126

Nova Code	J	K	L	M	O
NV15-BR1	4	28	46	71	45°
NV15-BR2	5	34	57	90	30°
NV15-BR3	6	34	59	94	30°
NV15-BR4	8	34	62	97	30°

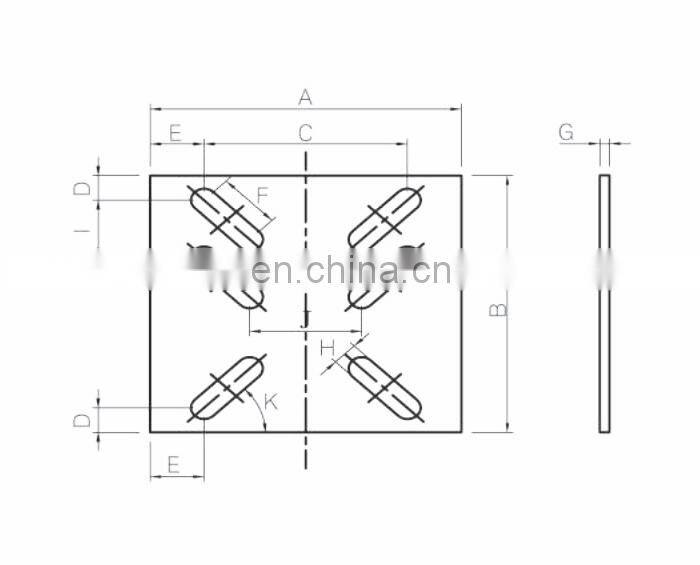

Nova Code	A±1	B±1	C	D	E	F	G	H±1	L
NV15-BL1	130	125	85	12	22.5	27	4	11	28
NV15-BL2	200	157	155	13.5	22.5	45	5	15	34
NV15-BL3	270	165	220	13.5	25	54	6	19	34
NV15-BL4	270	165	220	13.5	25	54	8	19	4

Nova Code	J±1	K
NV15-BL1	47	45
NV15-BL2	77	30
NV15-BL3	126	30
NV15-BL4	126	30

Shaft Components

Elevator Cabin

Door System

Traction System

Safety Components

Electric Components

·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Elevator Cabin includes
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safetey Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.
