Home > Products > Amphibious Excavator > Amphibious Excavator Amphibious Floating Excavator Diggers in Water

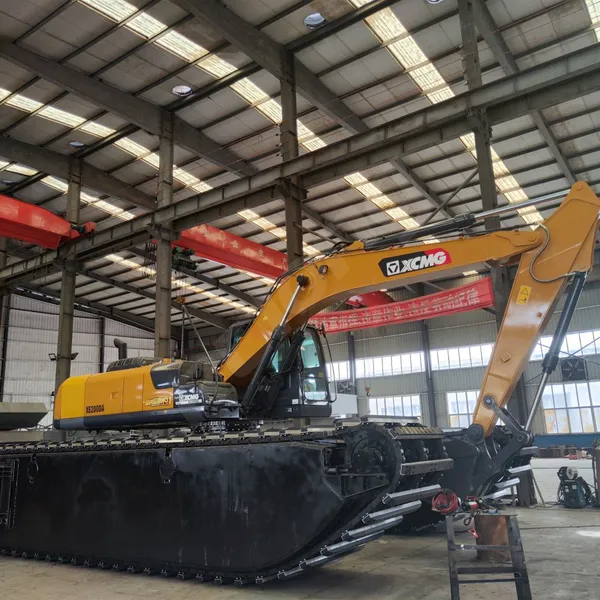

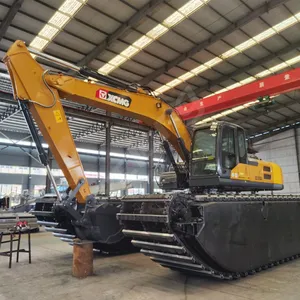

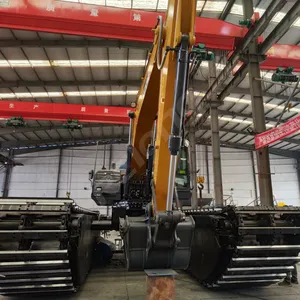

Amphibious Excavator Amphibious Floating Excavator Diggers in Water
- 20 Piece / Pieces per Month
- Qingdao
- T/T L/C D/P D/A
- 60 days
- Earthmoving Machinery Amphibious Swamp Buggy Excavator with Dredging Pump
- Amphibious Excavator Land and Water Excavator for Swamp Marsh and Water
- Amphibious Excavator Sand Dredging Excavator with Amphibious Pontoon
- Pontoon Amphibious Excavators for Swamp/River/Deep Water/Lake
- Dredging excavator Pontoon Amphibious Excavators for Sale
- Pontoon Amphibious Excavators with Additional Side Pontoons and Spuds
Product Details
Brand Name: | Relong | Place of Origin: | China | Model Number: | RL-AE30 |
Certification: | CE, ISO9001: 2000 | After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Moving Type: | Crawler Excavator | Bucket capacity: | 0.1~0.5m³ |
Product Description
Description | Model Specification | ||||||
RL-AE06 | RL-AE12 | RL-AE20 | RL-AE25 | RL-AE30 | RL-AE34 | RL-AE40 | |
Track length on ground | 2700mm | 3500mm | 5000mm | 5000mm | 6500mm | 7000mm | 7000mm |
Max. Track Length | 5700mm | 6200mm | 9500mm | 9500mm | 10500mm | 11500mm | 13500mm |
Transportation Length | 7260mm | 8070mm | 11460mm | 11660mm | 13610mm | 14480mm | 14480mm |
Transportation Height | 3700mm | 3700mm | 3950mm | 3950mm | 4040mm | 4140mm | 4800mm |
Counterweight clearance | 1810mm | 2010mm | 2010mm | 2010mm | 2010mm | 2210mm | 2540mm |
Spud height | 6000mm | 6000mm | 8000mm | 8000mm | 10000mm | 12000mm | 12000mm |
Overall width(with spud) | 5500mm | 6160mm | 6800mm | 6800mm | 8000mm | 8000mm | 8000mm |
Track side | 1640mm | 1840mm | 1840mm | 1840mm | 1840mm | 2040mm | 2340mm |
Track gauge | 3500mm | 3660mm | 3700mm | 3700mm | 4700mm | 4700mm | 4700mm |
Overall width(no spud) | 4500mm | 5160mm | 5200mm | 5200mm | 6400mm | 6400mm | 6400mm |
Single track width | 1300mm | 1500mm | 1500mm | 1500mm | 2000mm | 2000mm | 2000mm |
Spud space | 4000mm | 4500mm | 5600mm | 5600mm | 5600mm | 6000mm | 6000mm |
Spud span | 4900mm | 5560mm | 5600mm | 5600mm | 6800mm | 7000mm | 7000mm |
Max.digging reach | 6700mm | 8210mm | 9790mm | 9990mm | 10720mm | 10740mm | 11240mm |
Max. Digging reach on ground | 6500mm | 8010mm | 9699mm | 9899mm | 10520mm | 10520mm | 11040mm |
Max. Digging depth | 3400mm | 5580mm | 5660mm | 5860mm | 6415mm | 5910mm | 6365mm |
Max. Dumping height | 5174mm | 6755mm | 7880mm | 8080mm | 8163mm | 8296mm | 8605mm |
Min. Dumping height | 2583mm | 3300mm | 2501mm | 2501mm | 3638mm | 3838mm | 4370mm |
Max. Digging height | 8510mm | 9055mm | 9980mm | 9980mm | 11040mm | 11320mm | 11530mm |
Max. Bucket pin height | 6203mm | 8040mm | 8267mm | 8267mm | 9610mm | 9610mm | 10300mm |
Max. Vertical digging depth | 2027mm | 2505mm | 3029mm | 3029mm | 4050mm | 3080mm | 3980mm |
Max. Vertical radius | 4046mm | 5555mm | 6980mm | 6980mm | 8079mm | 9275mm | 9070mm |
Min. Digging Clearance | 325mm | 465mm | 562mm | 562mm | 420mm | 910mm | 1760mm |
Max. Swing radius | 2365mm | 2445mm | 3560mm | 3560mm | 4019mm | 4413mm | 4505mm |
Relong Technology Co., Ltd. is located in Qingdao City, Shandong Province. It is a company dedicated to intelligent robots, ship design, water transportation equipment, marine water quality and ecological environment testing, salvage services; industrial automatic control system devices, radar and supporting equipment, communication equipment, which is a high-tech enterprise integrating sales and artificial intelligence software development, including consulting, design, production, installation, and operation management. Relong provides one-stop customized service according to each client's different dredging site condition. Professional design, international welders welding work, professional field service and after-sale service are the foundation of Relong brand equipment high quality and high reputation.
Q: What are your factory workshops?
A: Our factory production process includes casting, mechanical process, lathe process, heat treatment, assembly, and test, etc. Warmly welcome to visit & test my factory any time.
Q: How does your factory do regarding quality control?
A: "Quality is a priority. We always attach great importance to quality controlling from the beginning to the end. Our factory has 15~30 QC.
Q: Is it easy for customers to change the parts by themselves?
A: Yes, the structure is simple, customers can change it very easily. We will also supply you with maintenance tools for free.
Q: Can you install the motor or diesel engine with the pump for us?
A: Yes, we can, it's no problem, we are experienced in this.
Q: We don't know which pump model we need, can you help us?
A: Yes, please tell me your detailed requirements, include liquid, flow rate, head, etc,
My engineers teal will calculate & select the most suitable pump model for you, offer a pump solution for you.
Q: How long can you reply to us if we send an inquiry?
A: Generally within 2 hours, we will send you an official quotation sheet, with price, technology data, performance curve, dimension, etc.
