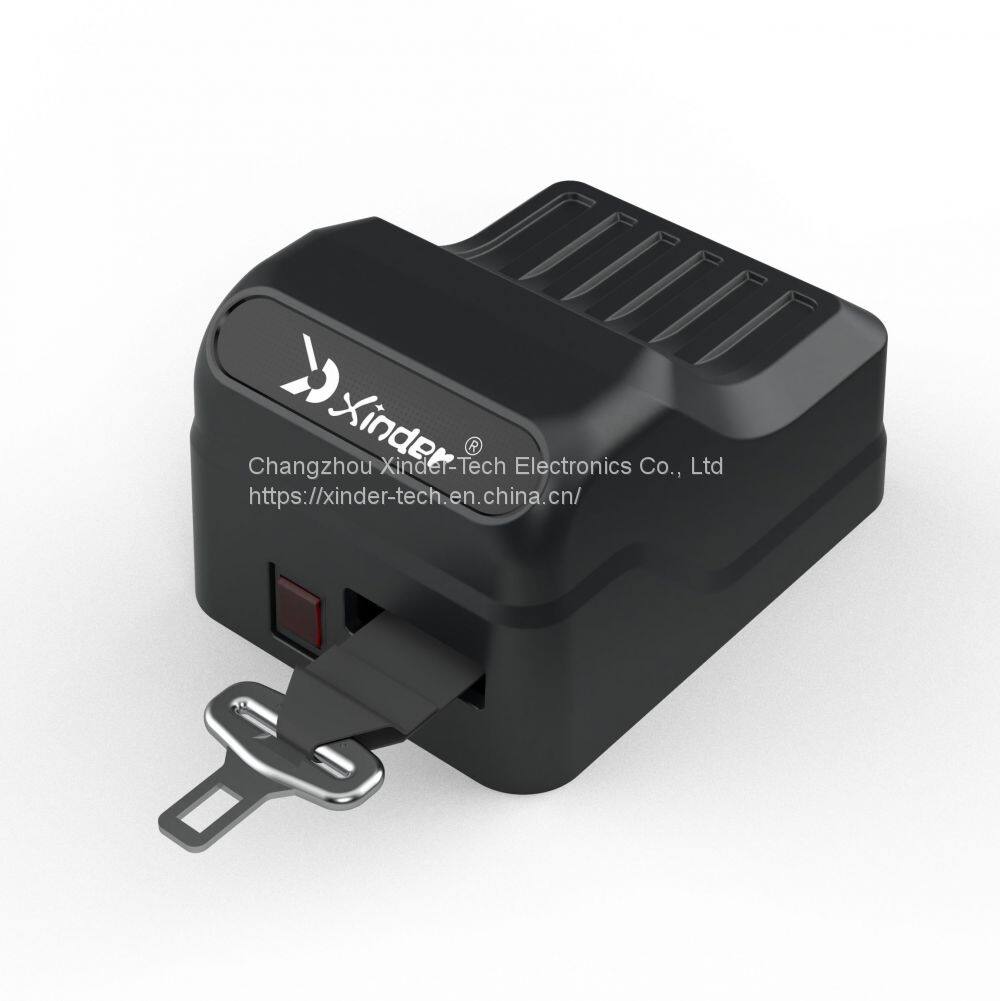

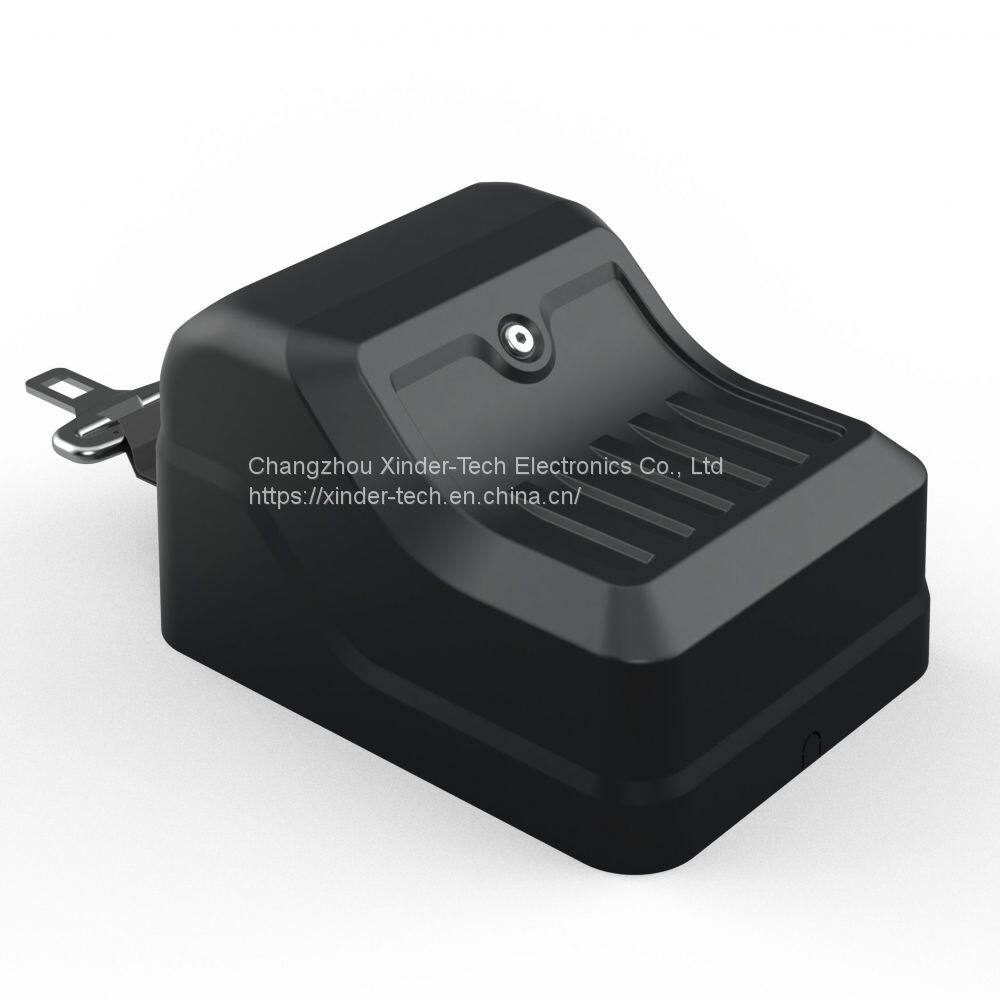

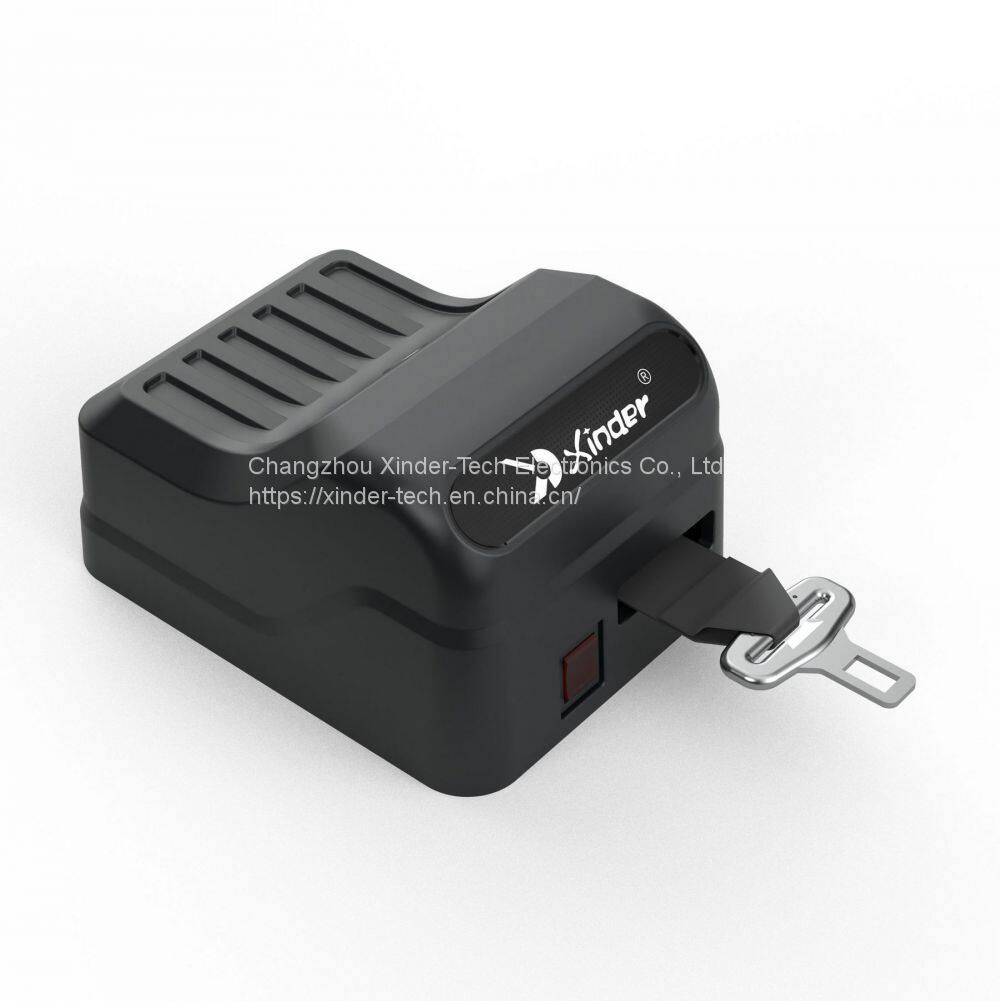

WCC Electric Winch for Wheelchair

Introduction

• This electric winch is installed and fixed on the vehicle floor (installed centrally), and is a device that provides assistance for wheelchair passengers to get on and off vehicle.

•


• The wheelchair winch has upward power traction and downward power braking. It can provide upward traction when the wheelchair occupant gets on vehicle and provide downward braking when the wheelchair occupant gets off vehicle.

•


• First fix the triangular belt on the wheelchair frame, and then the caretaker can use the wireless remote control to operate this winch. When the wheelchair climbs the slope, this winch pulls the wheelchair forward. Because of the automatic locking device, it can stop at any time by releasing the button, and the wheelchair will not roll back. When the wheelchair gets off vehicle, it can control the wheelchair getting off vehicle at a certain speed with no rapid descent.

•


• There is a switch for emergency operation. When the wireless remote control is fail, it can be operated by this switch.

Advantages

• Smooth operation and low noise;

• it can stop at any time by releasebutton；

• operated by wireless remotecontrol；

• has switch for emergency operation；

• light；

Technical Specifications:

^{voltage: 12Vdc;}

^{Traction force: 1250N/281.25 lbf/127.5kgf (the slope angle is 14°);}

^{Length of belt: ＜4100mm;}

^{Working noise: ＜60dB;}

^{Working speed: 270±20mm/s (without load),120-200mm/s(with load);}

Working environment temperature: -25℃~85 ℃
