Home > Products > SWIR lens > 1" F1.4 35mm C-Mount Fixed Focus Swir Lens

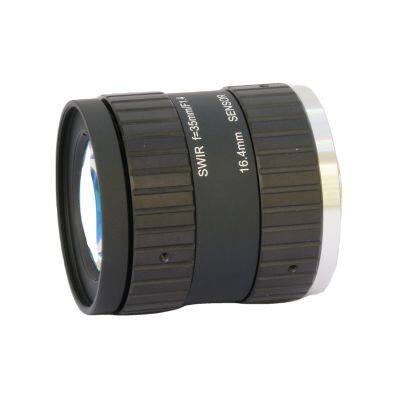

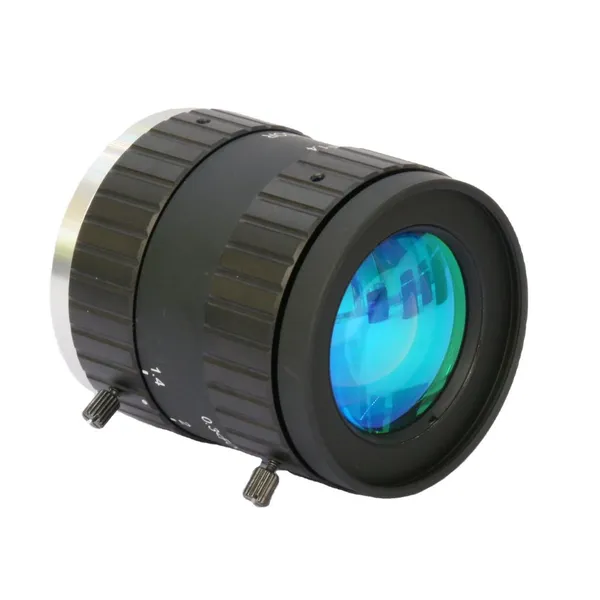

1" F1.4 35mm C-Mount Fixed Focus Swir Lens

Name: 1" F1.4 35mm C-Mount Fixed Focus Swir Lens
Brand: CCHT
Availability: InStock

FOB Price

USD $246 - $308 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Technical Parameter of SWIR Lens
Model No.: 02-011-002
No.	Iterm		Specification
1	Imager sensor		1"(16.4mm)
2	Wavelength		700~1800nm
3	FL		35mm
4	Interface		C-Mount
5	Aperture range		F1.4-F22
6	FOV (D×H×V)	1"	26.54°×21.23°×15.92°
		1/2"	13.19°×10.55°×7.91°
		1/3"	9.93°×7.94°×5.96°
7	Object size (At the nearest focus distance)	1"	135.934×108.747×81.56mm
		1/2''	66.93×53.55×40.16mm
		1/3"	50.1×40.08×30.06mm
8	RFL（in air）		21.49mm
9	Control mode	Focus	Manual
		Iris	Manual
10	Distortion rate	1"	-1.94%@y=8mm
		1/2"	-0.49%@y=4.0mm
		1/3"	-0.27%@y=3.0mm
11	Focusing range		0.3m~∞
12	Weight		189g
13	Working temperature		-20℃～+60℃

Technical Parameter of SWIR Lens

No.	Iterm		Model No.
No.	Iterm		02-011-001	02-011-002
1	Imager sensor		1"(16.4mm)	1"(16.4mm)
2	Wavelength		700~1800nm	700~1800nm
3	FL		25mm	35mm
4	Interface		C-Mount	C-Mount
5	Aperture range		F1.4-F22	F1.4-F22
6	FOV (D×H×V)	1"	36.66°×29.35°×22.04°	26.54°×21.23°×15.92°
		1/2"	18.37°×14.70°×11.03°	13.19°×10.55°×7.91°
		1/3"	13.79°×11.03°×8.28°	9.93°×7.94°×5.96°
7	Object size (At the nearest focus distance)	1"	198.59×157.08×116.85mm	135.934×108.747×81.56mm
		1/2''	97.07×77.46×57.99mm	66.93×53.55×40.16mm
		1/3"	72.58×57.99×43.44mm	50.1×40.08×30.06mm
8	RFL（in air）		20.84mm	21.49mm
9	Control mode	Focus	Manual	Manual
9	Control mode	Iris	Manual	Manual
10	Distortion rate	1"	-3.09%@y=8mm	-1.94%@y=8mm
		1/2"	-0.72%@y=4.0mm	-0.49%@y=4.0mm
		1/3"	-0.4%@y=3.0mm	-0.27%@y=3.0mm
11	Focusing range		0.3m~∞	0.3m~∞
12	Weight		186g	189g
13	Working temperature		-20℃～+60℃	-20℃～+60℃
