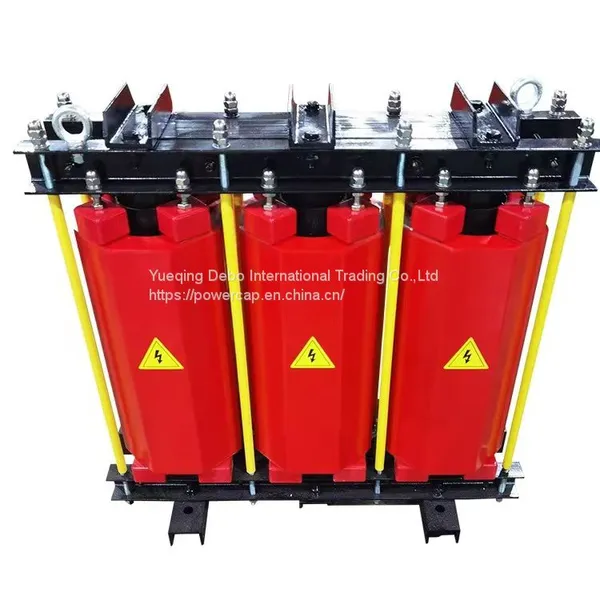

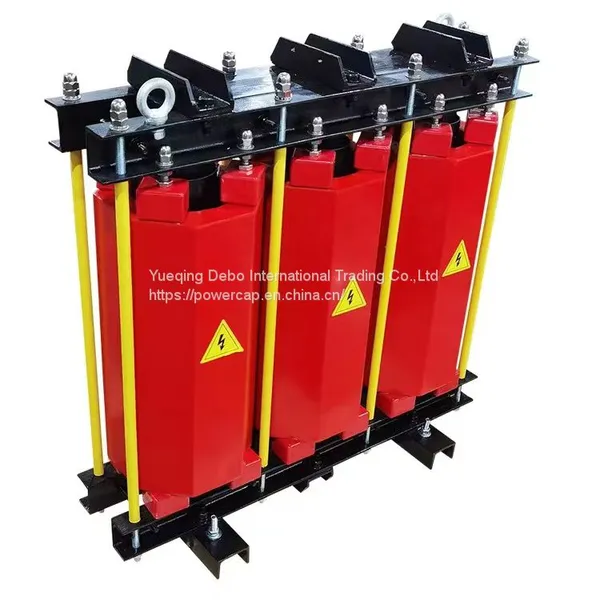

CKSC high-voltage Series Reactor

CKSC high-voltage Series Reactor

This product is connected in series with shunt capacitor and

the function of compensating reactive power of power grid

Improve power factor, suppress harmonic current, limit closing

inrush current and other functions, applied to electric power system,

electrified railway, metallurgy, petrochemical and other higher

protection fire requirements, electromagnetic interference

requirements and urban network substations with limited

installation space, underground substation and microcomputer

controlled substation.

Operating environmental conditions

1. The altitude shall not exceed 1000 meters.

2. The operating ambient temperature is - 25 ℃~+45 ℃, and the relative humidity is not more than 90%.

3. There is no harmful gas, flammable and explosive substances around.

4. The surrounding environment should have good ventilation conditions.

Performance parameter

1. The dry reactor is smaller than the traditional oil-immersed reactor and air-core reactor, and has the characteristics of light weight, small space, simple structure and convenient installation.

2. The temperature resistance grade reaches F (155 ℃); During normal operation, the core and coil temperature rise of dry-type iron-core reactor shall not exceed 90K.

3. The dry-type iron-core reactor can operate for a long time at 1.35 times the rated current.

4. The noise of dry-type iron-core reactor shall not exceed the national standard.

5. The withstand voltage level of dry-type iron-core reactor meets the provisions of JB5346-1998.

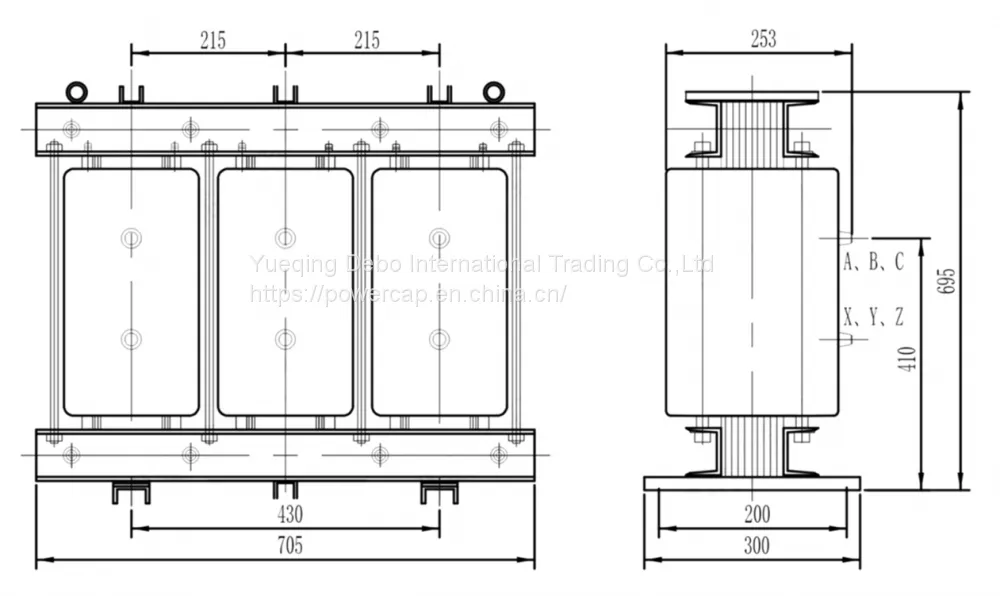

Overall outling drawing:
