Oil immerse type Discharge coil for substation

Application

This series of discharge coils are used to connect with high-voltage shunt capacitors in power systems, so that the remaining charge after the capacitor bank is removed from the power system is quickly released. Therefore, installation of discharge coils is a necessary technical safety measure for shunt capacitors in substation, which can effectively prevent the capacitor bank from closing again. The capacitor is still charged and the closing overvoltage and current endanger the safety of the equipment, and ensure the safety of the maintenance personnel. This series of products with secondary winding for line monitoring, measurement and secondary protection.

Structure and performance characteristics

1 The product adopts high quality epoxy resin system vacuum casting molding, oil-free, completely free from oil leakage, environmental pollution and flammable ect.

2 Simple structure, installation and use is very convenient.

3 the product maintenance is simple, just wipe off the surface dust when the power failure maintenance.

4 Good insulation performance, safe and reliable use.

5 Use special formula and process, so that the product has high mechanical strength, excellent weather resistance, in a variety of environments for a long time without cracking, fracture and other phenomena.

Environment Condition

a. Conditions of use: indoor and outdoor, ambient temperature (indoor products stored, no rain)

Class A -40-+40℃

Class B -25-+45℃

Class C -10-+55℃

b, Altitude is not more than 1000m(if there are special requirements can be customized)

C, Seismic level: earthquake intensity 8 degrees, no damage

d, Installation location: no harmful gas, steam and no conductive or explosive dust

e. Maximum wind speed :35m/s

f, Relative humidity: the monthly average relative humidity of indoor discharge coil does not exceed 90%, and the daily average relative humidity does not exceed 95%

Technical Data

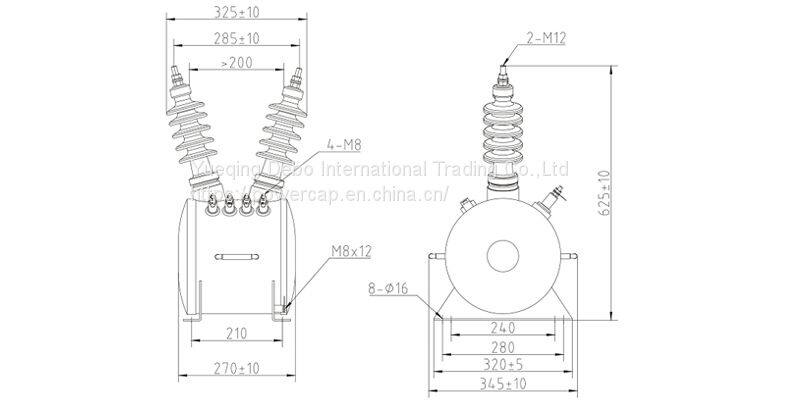

Drawing
