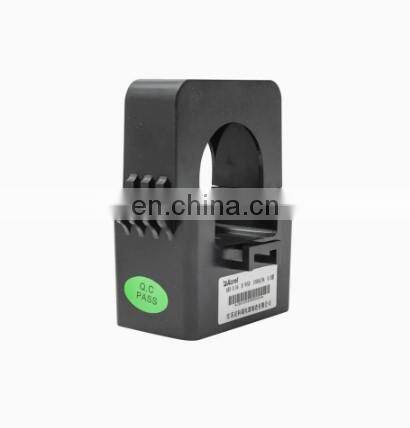

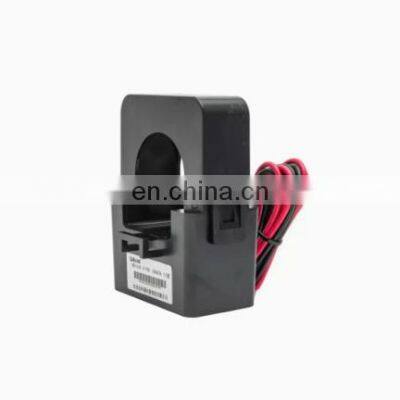

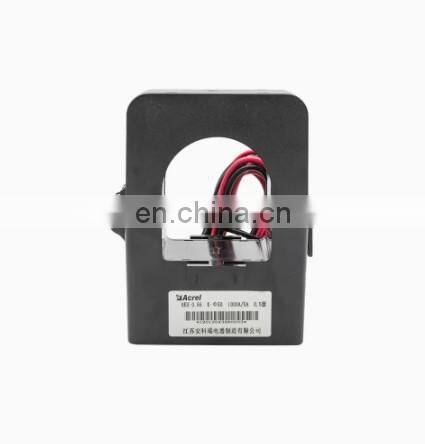

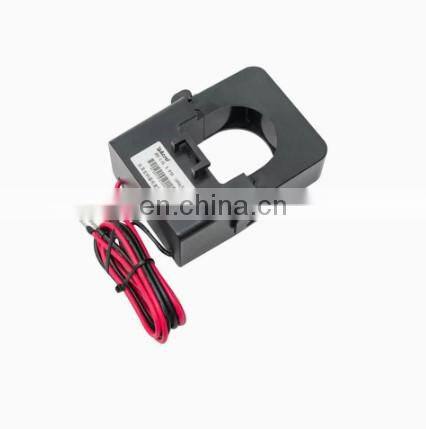

Acrel AKH-0.66K-50 600/5A AC Split Core Current Transformer clamp on CTs
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Acrel AKH-0.66K-24 300/5A Electric CT current sensor AMP Meters transformers CE certificate
-
Acrel AKH-0.66K-24 150/5A ROHS CE open type Current Transformer for measuring class 1
-
Acrel AKH-0.66K-24 250/5A Split Core Current Transformer with cable 2 meters
-
BR AC Rogowski Coil current Transducer class 0.5S real-time measurement split coil Current Sensor 4-20mA Output
-
china manufacturer Acrel high accurancy Split Core Current Transformer price
-
hot sale open-close type current transformer manufacturer Class 0.5S
Product Description
Products Description
Split Core Current Transformer AKH-0.66K-Φ50
AKH-0.66/K-Φ series split current transformers are mainly used in reconstructing projects of urban and rural power grids.
Product has the advantages of small size, high accuracy, strong load capacity, easy installation, etc
.● Measurement: Alternating Current (AC)
● Accuracy: Class 0.5
● Primary Current Input: Max 1000A AC
● Rated Voltage: 660V AC
●Rated Frequency: 50~60Hz
● Installtion: Clamp-on (installed on Cable)
● Loop Count: 1 Loop
● Diameter range: φ50mm
● Standard&Certificate: IEC/EN61869-1;IEC/EN61869-2;CE
● Ambient air temperature -30℃-70℃
● Ambient air temperature -30℃-70℃
● Height above sea level≤3000m
● Power frequency withstand voltage 3000v/1min 50Hz
● Used inplace without direct rain and snow,without severe pollution and acute shock
Technical Parameter
Model Name | Current Ratio (Primary/Secondary) | Accuracy Class | Rated Load (VA) | Perforation Hole Size (mm) |
AKH-0.66K-φ50 | 600/5 | 0.5 | 10 | φ50 |
700/5 | ||||
800/5 | ||||
1000/5 |
Wiring Illustration
Dimension & Installation
Model Name | Outline Size (mm) | Perforation Size (mm) | Tolerance (mm) | ||||||||||
W | H | D | M | N | φ1 | φ2 | |||||||
AKH-0.66K-φ50 | 46.5 | 110 | 90 | 54 | 66.5 | 47 | 52 | ±1 | |||||
Solution Structure
