Acrel AKH-0.66K-24 250/5A Split Core Current Transformer with cable 2 meters
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
BR AC Rogowski Coil current Transducer class 0.5S real-time measurement split coil Current Sensor 4-20mA Output
-
china manufacturer Acrel high accurancy Split Core Current Transformer price
-
hot sale open-close type current transformer manufacturer Class 0.5S
-
Open loop AKH-0.66 low voltage split core current transformer with cable for sale
-
high quality Class 0.5 min current transformer split core sensor CE Certificates
-
Acrel High Quality low voltage UL 16mm Split Core Current Transformer CE with cable
Product Description
Products Description

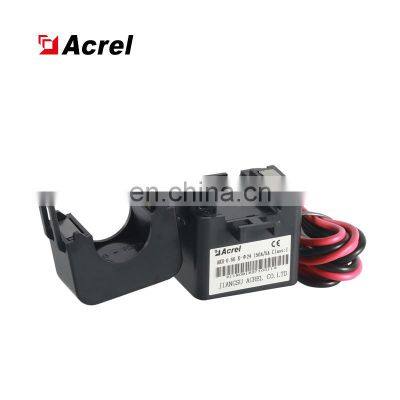

Split Core Current Transformer AKH-0.66K-Φ24
AKH-0.66/K-Φ series split current transformers are mainly used in reconstructing projects of urban and rural power grids.
Product has the advantages of small size, high accuracy, strong load capacity, easy installation, etc
.● Measurement: Alternating Current (AC)
● Accuracy: Class 0.5
● Primary Current Input: Max 300A AC
● Rated Voltage: 660V AC
●Rated Frequency: 50~60Hz
● Installtion: Clamp-on (installed on Cable)
● Loop Count: 1 Loop
● Diameter range: φ24mm
● Standard&Certificate: IEC/EN61869-1;IEC/EN61869-2;CE
● Ambient air temperature -30℃-70℃
● Ambient air temperature -30℃-70℃
● Height above sea level≤3000m
● Power frequency withstand voltage 3000v/1min 50Hz
● Used inplace without direct rain and snow,without severe pollution and acute shock
Technical Parameter
Model Name | Current Ratio (Primary/Secondary) | Accuracy Class | Rated Load (VA) | Perforation Hole Size (mm) |
AKH-0.66K-φ24 | 150/5 | φ24 | ||
200/5 | ||||
250/5 | ||||
300/5 |
Wiring Illustration
Dimension & Installation
Model Name | Outline Size (mm) | Perforation Size (mm) | Tolerance (mm) | ||||||||||
W | H | D | M | N | φ1 | φ2 | |||||||
AKH-0.66K-φ24 | 39 | 71 | 46 | 36 | 52 | 24 | 23.5 | ±1 | |||||
Solution Structure
