ADL200 Single Phase Kilo Watt-hour Meter/Din Rail Electric Energy meter/Support OEM quantity can be discussed

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Products Description

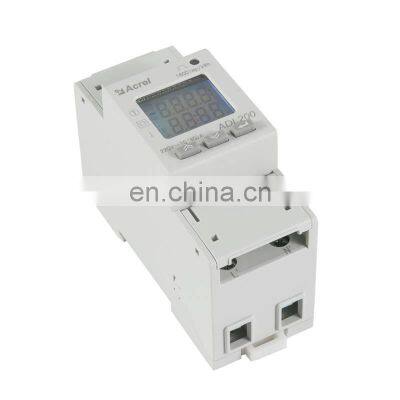

ADL200 Single-phase DIN Rail Energy Meter

· kWh Accuracy Class 1
· Diverse Electricity Parameters Measurement
· Multi-rate/Flexible Tariff (Optional)
· HMI for Parameters Setting
· DIN Rail Installation
· LCD Display
· RS485 (MODBUS-RTU)---Optional
· IEC62053-21:2003; IEC62053-22:2003; CE; EAC

Features Introduction

Diverse Electricity Parameters Measurement

* U (Voltage)
* I (Current)
* P (Power)
* Q (Reactive power)
* S (Apparent power)
* PF (Power factor)
* kWh (Kilowatt-hours)
* kVarh (Kilovar-hours)

Multi-rate/Flexible Tariff

* 4 Time zone

* 4 Tariff rate (Spike, Peak, Flat, Valley)
* 2 Time period list
* 14 Time period by day

HMI for Parameters Setting

* Protocol
* Address
* Baud rate
* Parity
* All Display

DIN rail Installation

* 35mm standard DIN rail

LCD Display

*8 digits

Function & Parameter

Function

Function	Description
Measurement of kWh	Single-phase active kWh (positive and negative)，3 months historical energy data frozen storage
Measurement of electrical parameters	Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency
Display	8 bits section LCD display
Key programming	3 keys to set parameters like code, address, baud rate, multi-tariff and communication protocol
Key programming
Pulse output	Active energy pulse output
Multi-tariff (Optional)	Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates
Communication	Communication interface: RS485, Communication protocol: MODBUS-RTU

Technical Parameters

Paramters	Description
Input Voltage	Reference voltage	AC 220V
	Reference voltage	AC 220V
		Reference frequency	50Hz
		Reference frequency	50Hz
		Power consumption	<10VA
		Power consumption	<10VA
Input Current	Basic current	10A
		Maximum current	80A
		Maximum current	80A
		Starting current	4‰Ib
		Starting current	4‰Ib
		Consumption	<4VA
Measurement performance	Accuracy of measuring	Class 1
	Accuracy of measuring	Class 1
		Range of measuring	000000.00~99999999kWh
		Range of measuring	000000.00~99999999kWh
Active pulse	Pulse width	80±20ms
Active pulse		Pulse constant	1000imp/kWh
Communication	Interface	RS485(A+、B-)
		Connection mode	Shielded twisted pair conductors
		Connection mode	Shielded twisted pair conductors
		Protocol	MODBUS-RTU
Clock accuracy	Error≤0.5s/d

Working Environment

Item	Description
Temperature range	Working Temperature	-25℃~55℃
	Working Temperature	-25℃~55℃
		Storage Temperature	-40℃~70℃
		Storage Temperature	-40℃~70℃
Relative humidity	≤95%(No condensation)
Altitude	<2000m

Wiring&Installation

Wiring Illustration

Installation Instruction

Typical Connection
