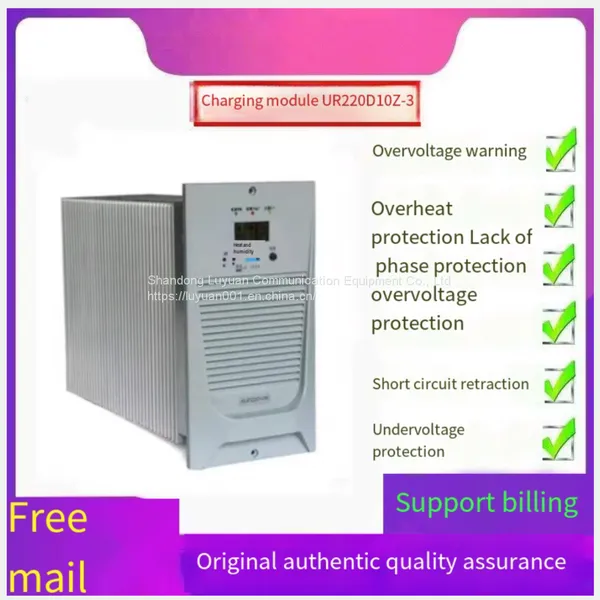

DC screen charging module UR220D10Z-3 High frequency switch rectifier module

Technical characteristics

ACDC circuit adopts passive PFC technology with high power factor.

Dc circuit adopts a new LLC resonant circuit, the whole process of soft switch control, high efficiency.

It greatly improves the reliability of the whole machine and breaks through the limitations of the traditional hard switch and phase-shift resonant soft switch technology.

Built - in EMC design.

According to the characteristics of the battery charger, add specific protection circuit to ensure the safety of the machine in any use.

Adopt the second generation of advanced technology.

Natural air cooling cooling system.

Small size and light weight.

■ Output performance

The nominal output voltage is 220V, and the large output current is 10A.

■ Communication performance

The module CAN communicate with the host computer through RS485 mode, send the output voltage and current of the module, module protection and alarm information to the host computer, and accept and execute the control commands issued by the host computer. Communication compatibility: In addition, the communication between modules can be realized through the CAN bus.
