WNS3-1.6-YQ Horizontal Oil Fired Steam Boiler 3 Ton Steam Boiler

1、 Performance description of a 3 ton oil gas steam boiler: WNS3-1.6-YQ horizontal oil steam boiler 3 ton steam boiler

1. Boiler model: WNS3-1.6-YQ

2. Raed evaporation: 3000kg/h

3. Rated steam pressure: 1.6Mpa

4. Steam temperature: 204 ℃

5. Hydrostatic test pressure: 2.05Mpa

6. Feed water temperature: 20 ℃

7. Smoke exhaust temperature: 91.7 ℃

8. Design thermal efficiency: 94.3%

9. Applicable fuels: natural gas, diesel, biogas, gas fuel, etc

10. Fuel consumption: 186kg/h (calculation of low calorific value of diesel)

11. Boiler heating area: 64.3 square meters

12. Low calorific value of natural gas: 35438kJ/Nm3

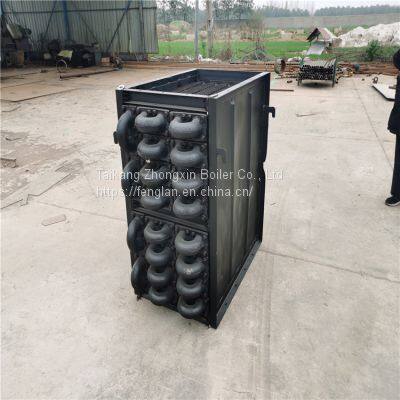

13. Heating area of energy-saving device: 38.4 square meters

14. Stable operating range of boiler: 80% -100%

15. Boiler large piece transportation size: 4350 × two thousand and two hundred × 2600 mm WNS3-1.6-YQ Horizontal Oil Fired Steam Boiler 3 Ton Steam Boiler

16. Boiler weight: 9T

17. Boiler main steam diameter: DN65

18. Boiler safety valve diameter: DN40

19. Chimney diameter: Φ five hundred

20. Boiler water supply outlet: DN40

21. Boiler discharge diameter: DN40

22. Boiler water volume: 5.3m ³

23. Boiler feed pump: 4KW, lift 160 meters

24. Tap water pressure: 0.3-0.5Mpa

25. Softened water power supply: 220V 50HZ

26. Burner brand: Italian Riyalo or Baide

27. Burner model: RL250 or TBL260P

28. Burner power: 2600KW

29. Burner motor power: 5.5KW

30. Burner operation mode: two stage fire
