Double Anti-Combination Eye Wash

The surface is coated with ABS anticorrosive coating, effectively resistant to various chemicals such as acid, alkali, salt and oil.

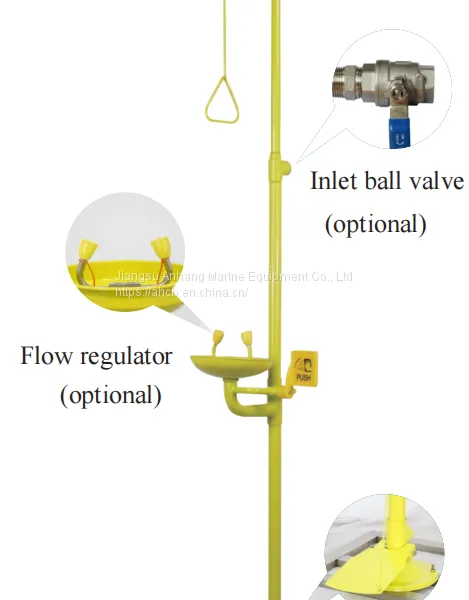

It can be equipped with

1. Pedal. (Hand and foot linkage, more convenient operation). Step on the pedal or push away the hand push plate, the eyewash switch is turned on. Close the hand push plate, and the eyewash switch is turned off.

2. High-performance evacuation antifreeze device. After use, the water inlet control switch is turned off. The water in the equipment can be evacuated manually to prevent freezing. The product can effectively solve the serious consequences caused by the blockage of the pipeline caused by the low ambient temperature and the failure to use the freezer.

3. Flow regulator. The water flow can be adjusted according to the pressure of the water source, which can effectively prevent secondary injuries to the injured due to excessive water pressure.

Technical Parameters

1.Manufacturing Standards：ANSI Z358.1-2014

2.Main material：SS304(Optional Q235 or SS316L)+ABS coating

3.Function：Eyewash and shower

4.Working temperature：0℃～55℃

5.Applicable medium: Drinking water or clear water at room temperature and in line with sanitary standards

6.Nominal pressure：1.0MPa

7.Work pressure：0.2MPa～0.4MPa

8.Inlet size：Internal thread 1-1/4" (can be customized according to user requirements)

9.Drain size：Internal thread 1-1/4" (can be customized according to user requirements)

10.Shower flow：≥75.7L/min

11.Eyewash flow：≥11.4L/min,(The eyewash nozzle is equipped with a buffer device to prevent secondary damage to the injured eye due to excessive water flow)

12. Shower head: The standard configuration is ABS shower head (optional stainless steel shower head)

13. Eye wash nozzle: The standard configuration is ABS eye wash nozzle (optional stainless steel eye wash nozzle)
