250mA Low-pressure differential linear regulator 6206-3.3V SOT-23 -3L

6206-3.3V     SOT-23 -3L

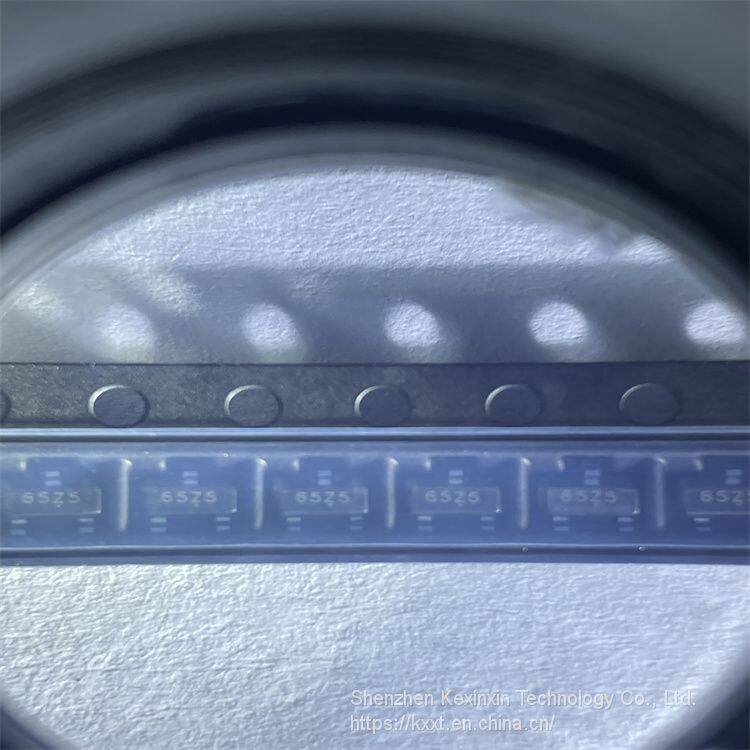

marking code: 65z5

250mA  Low-pressure differential linear regulator

 Summary:

The 6206 series is a high-precision, low-power,

High voltage, positive voltage regulator chip, and CMOS

Process and laser trimming technology. In case of output current,

The input and output pressure difference is also very small. XC6206 series chips include

One current limiting circuit, one driver triode, one

A high-precision reference voltage source and an error correction circuit.

XC6206 series can use low ESR ceramic capacitors. This current limit

The return circuit of the controller can provide current limiter and output pin

For short circuit protection. The chip's

The range of output voltage is 1.2V to 5.0V, and the interval is 0.1v

Features:

● High precision output voltage: ± 2%

● Output voltage: 1.2V~5.0V (in steps of 0.1V)

● Maximum working voltage: 6V

● Very low static bias current (Typ.=8.0 μ A)

● Strong carrying capacity: when Vin=4.3V and Vout=3.3V

Iout=300mA

● Very low input and output voltage difference:

0.2V at 90mA and 0.40V at 200mA

● Good input stability

● Low temperature adjustment coefficient

● It can be used as regulator and reference voltage

Application:

● Battery power supply system

● Cordless telephone equipment

● Wireless control system

● Portable/handheld computer

● Portable consumer equipment

● Portable instrument

● Electronic equipment

● Automotive electronic equipment

● Voltage reference source

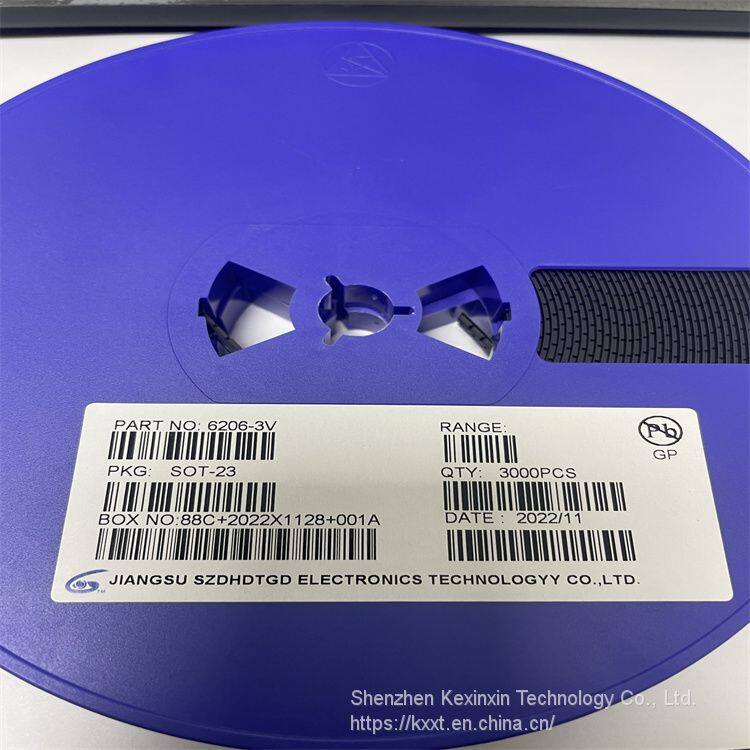

Factory Pack Quantity: 3000
