Home > Products > HAWKER PZS > HAWKER 3BPzS420 24V420Ah POWER BATTERY
HAWKER 3BPzS420 24V420Ah POWER BATTERY
- 20 Bag / Bags per Month
- Hong Kong
- Other
- 5 days
Product Details
Brand Name: | HAWKER | Place of Origin: | China | Model Number: | 3BPzS420 24V420Ah |
Type: | Battery Pack | Use: | Other, MOTIVE POWER BATTERY | Rechargeable: | Yes |
Product Description
HAWKER 3BPzS420 24V420Ah POWER BATTERY
HAWKER 3BPzS420 24V420Ah POWER BATTERY
HAWKER 3BPzS420 24V420Ah POWER BATTERY
Hawker Pzs type traction battery
Battery model
Nominal/rated capacity
(5 hours)
Maximum cell size(mm)
Weight of charged solution
(+/-5%kg)
length
width
height
2 BPzS 120
120
47
198
370
8.4
3 BPzS 180
180
65
198
370
11.8
4 BPzS 240
240
83
198
370
15.5
5 BPzS 300
300
101
198
370
19.0
6 BPzS 360
360
119
198
370
22.5
7 BPzS 420
420
137
198
370
26.1
8 BPzS 480
480
155
198
370
29.8
9 BPzS 540
540
174
198
370
33.5
10 BPzS 600
600
192
198
370
37.8
2 BPzS 160
160
47
198
435
9.8
3 BPzS 240
240
65
198
435
14.0
4 BPzS 320
320
83
198
435
18.1
5 BPzS 400
400
101
198
435
22.6
6 BPzS 480
480
119
198
435
26.6
7 BPzS 560
560
137
198
435
31.1
8 BPzS 640
640
155
198
435
35.2
9 BPzS 720
720
174
198
435
42.1
10 BPzS 800
800
192
198
435
46.8
2 BPzS 180
180
47
198
505
12.0
3 BPzS 270
270
65
198
505
16.9
4 BPzS 360
360
83
198
505
21.6
5 BPzS 450
450
101
198
505
26.3
6 BPzS 540
540
119
198
505
31.1
7 BPzS 630
630
137
198
505
36.1
8 BPzS 720
720
155
198
505
40.8
9 BPzS 810
810
174
198
505
45.5
10 BPzS 900
900
192
198
505
50.3
2 BPzS 230
230
47
198
575
13.6
3 BPzS 345
345
65
198
575
19.4
4 BPzS 460
460
83
198
575
25.2
5 BPzS 575
575
101
198
575
31.1
6 BPzS 690
690
119
198
575
36.9
7 BPzS 805
805
137
198
575
42.7
8 BPzS 920
920
155
198
575
48.6
9 BPzS 1035
1035
174
198
575
54.3
10 BPzS 1150
1150
192
198
575
60.2
Battery model
Nominal/rated capacity
(5 hours)
Maximum cell size(mm)
Weight of charged solution
(+/-5%kg)
length
width
height
2 BPzS 250
250
47
198
600
14.3
3 BPzS 375
375
65
198
600
20.5
4 BPzS 500
500
83
198
600
26.9
5 BPzS 625
625
101
198
600
32.9
6 BPzS 750
750
119
198
600
39.4
7 BPzS 875
875
137
198
600
45.8
8 BPzS 1000
1000
155
198
600
51.5
9 BPzS 1125
1125
174
198
600
57.7
10 BPzS 1250
1250
192
198
600
64.0
2 BPzS 280
280
47
198
715
19.1
3 BPzS 420
420
65
198
715
25.4
4 BPzS 560
560
83
198
715
32.9
5 BPzS 700
700
101
198
715
39.9
6 BPzS 840
840
119
198
715
47.2
7 BPzS 980
980
137
198
715
54.8
8 BPzS 1120
1120
155
198
715
62.3
9 BPzS 1260
1260
174
198
715
71.0
10 BPzS 1400
1400
192
198
715
76.7
2 BPzS 310
310
47
198
750
19.1
3 BPzS 465
465
65
198
750
25.6
4 BPzS 620
620
83
198
750
33.6
5 BPzS 775
775
101
198
750
42.1
6 BPzS 930
930
119
198
750
50.1
7 BPzS 1085
1085
137
198
750
58.2
8 BPzS 1240
1240
155
198
750
66.3
9 BPzS 1395
1395
174
198
750
74.5
10 BPzS 1550
1550
192
198
750
81.3
The HawKer essential series battery is a highly reliable and cost-effective battery. This new series of products adheres to the technical characteristics of Hawk Power as a global leader in industrial batteries. A highly cost-effective electric forklift battery.
product mix
Hawker's Essential series products are new European designed open end lead-acid batteries, using both DIN and JIS specifications.
This series of products has a sturdy structure and adopts mature tubular plate technology. The battery cells and covers are made of high-temperature resistant polypropylene material and welded through a heat sealing process, which can effectively prevent acid leakage.
The battery cells are all installed in customized boxes, using flexible bolt connections and sealing insulation of the connecting strips, ensuring safety and reliability, and easy maintenance.
The exhaust port cover adopts a flip over design and is equipped with an electrolytic liquid level mark, which is safe to use and can fully discharge the gas released during charging, facilitating maintenance.
Optional
The electrolyte float and electrolyte warning light of the JIS series battery can be installed according to the height of the battery.

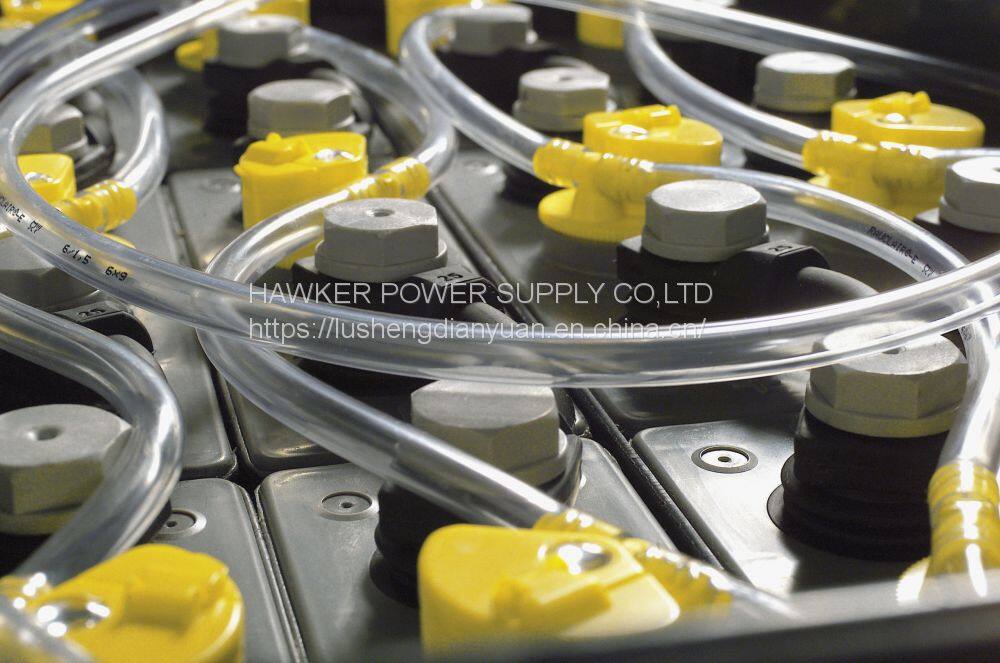

The water adding system is also available for ordering. This system can safely add water to the most suitable location through a water adding device, and can significantly shorten the water adding time.
It is recommended that users choose Hawker modular high-frequency chargers to be used together with the battery. Choosing chargers of the same series can maintain the best charging state of the battery and maximize its service life.
The charger adopts high-quality electronic components, and the perfect charging curve not only optimizes battery charging, but also greatly saves power consumption, energy conservation, and environmental protection.
The HAWKER charger adopts an innovative module design, making maintenance and use more convenient.
characteristic
High reliability and cost-effectiveness
Advanced structure and high-quality components
Suitable for most brand hosts and models
Hawk Power Group's globally unified design and production processes
Branches spread throughout various regions, facilitating timely service and support
PzJD&PzJB cells-Hawker essential,bolt-on connectors,dimensions resembling DIN/EN 60254-2,IEC 60254-2,GBT 7403-1/2
Cell Designation
2PZJD160 3PZJD240 4PZJD320 5PZJD400 6PZJD480 7PZJD560 8PZJD640
2PZJD230 3PZJD345
4PZJD460 5PZJD575 6PZJD690 7PZJD805 8PZJD920
2PZJD250 3PZJD375 4PZJD500 5PZJD625 6PZJD750 7PZJD875 8PZJD1000
2PZJD280 3PZJD420 4PZJD560 5PZJD700 6PZJD840 7PZJD980 8PZJD1120
2PZJD310 3PZJD465 4PZJD620
5PZJD775 6PZJD930 7PZJD1085 8PZJD1240
