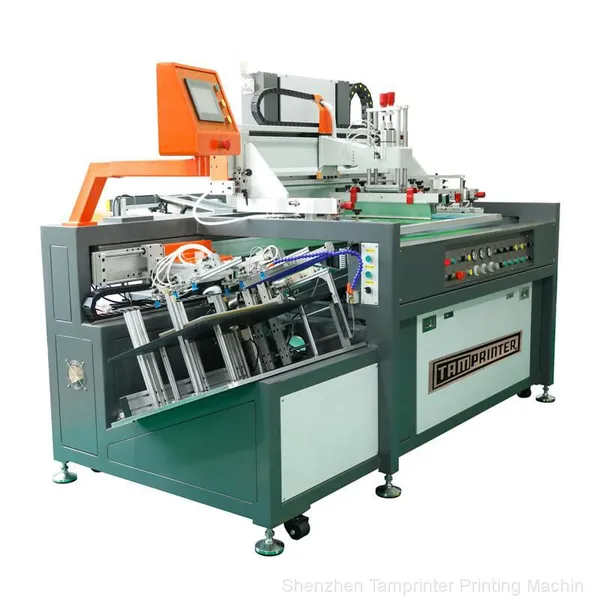

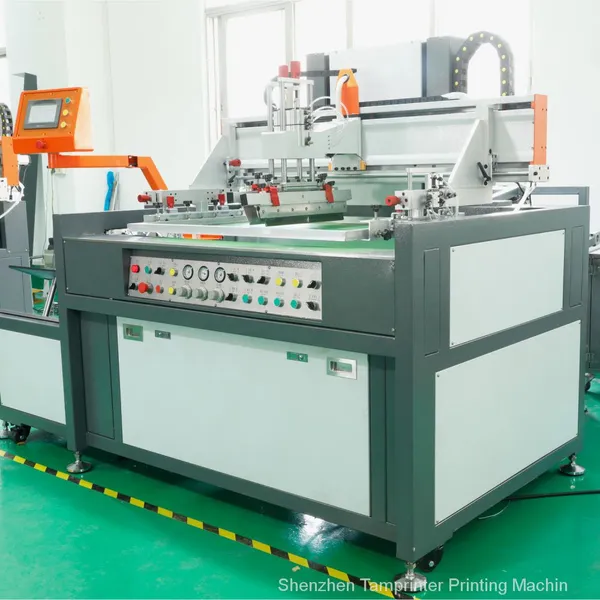

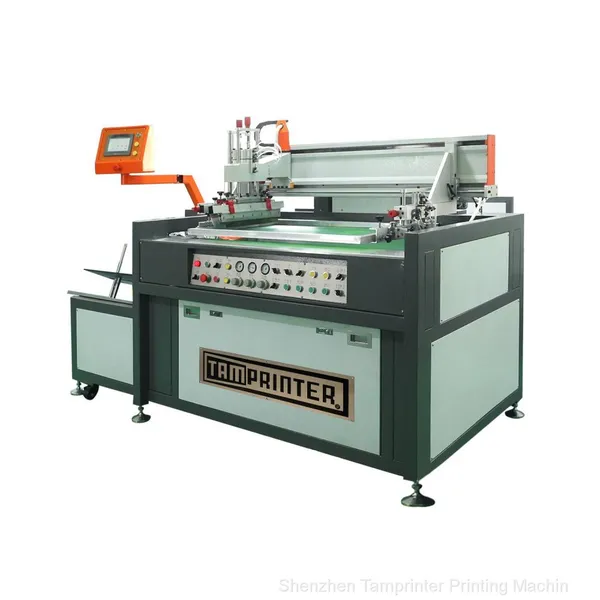

Fully automatic membrane switches sheet screen printing machines

UV Silk Screen Printing Varnish UV Crystal Varnish Fully Auto Screen Printing Machine

tamprinter printing machine simulation working :

/v_show/id_XNTE1NDA1ODQyNA==.html
/p/COEauh8APTl/?igshid=1vhvhv5ff2ndg

tamprinter printing machine Whole body visit :
/p/COEaj7PgDFa/?igshid=146yc50gq93fs

is suitable for the automatic high-precision screen printing of reflective film materials and paper, and realizes automatic feeding, automatic printing, and automatic unloading.

HS CODE :8443192290

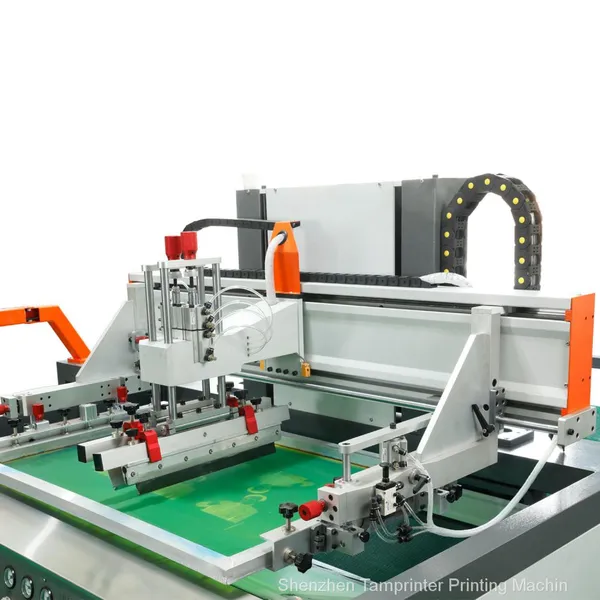

1. Adopting invert motor for side lifting printing table, servo motor drive the printing head by horizontal movement. Specifications

2. Printing head and screen frame are driven independently, servo motor controls the printing.

3. Printing knife drive by pneumatic control,  independent digital control for stroke.

4. Operation model: manual/semi-auto/full-auto

5. Digital control for Printing suspended time.

6. The lifting of printing head can be independently adjusted for convenience of cleaning Scraper and covering ink blade and screen mesh.

7. Easy to adjust the position of screen frame with the pneumatic and mechanical fixture.

8. Adopting digital control technology controlled the servo motor for stability and precision of feeding and delivering. 9.PLC programming, touching screen, simple to operate, easy to use.

Advantages:

1. Automatic operating, save labour 2~3 operator

2. High precise printing with overprinting colors

3. Easy operate, Plc+ touch screen rotary gimbal mounting

4. Anti-static and dust remove are available for clean printing

5. Excellent design, suitable for soft materials, hard materials, up to 5mm thickness

6. New comer can learn to operate in two hours.

7. Improve working style to replace physical

8 . Cheaper price than stop cylinder screen printer, but more versatile

Features: Four sets of servo drives respectively drive lifting, printing, loading and unloading, coordinated actions, efficient and reliable.

         The wind drawing gauge is equipped with a pressing and warping edge mechanism, which highly imitates the manual positioning action, has a wide range of adaptability and accurate positioning.

         The printing pressure is uniform and adjustable, which can be adapted to the different needs of various inks.

         The unique screen synchronization and off-network mechanism avoids sticking to the network.

         The constant pressure control system ensures the pressure balance of the squeegee and the uniforming knife to ensure high printing quality.

         Powerful suction motor, unique blowing and suction control, so that the substrate is firmly adsorbed and released in time.

Cantilever vertical lifting mode, independent lifting of the printing head, easy to operate.

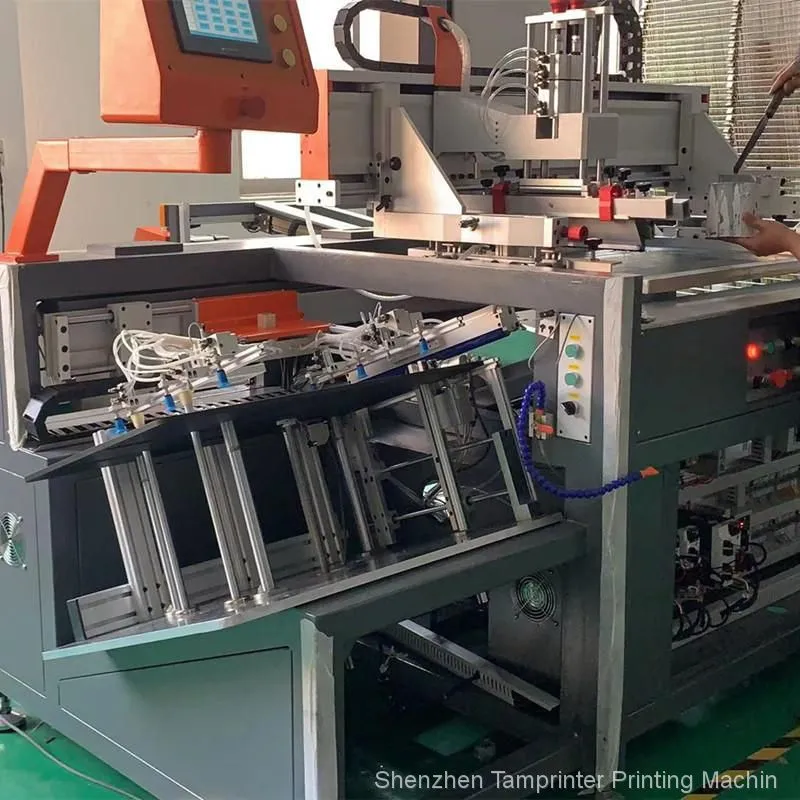

The air blowing system cooperates with the paper separating pick to reliably separate the printing substrate.

Precise fine-tuning mechanism, fine-tuning of the XY direction of the screen, convenient for plate registration.

Chinese man-machine interface operation, reliable and durable, easy to adjust, accurate setting and complete functions.

It can be installed along the drying tunnel or perpendicular to the drying tunnel to meet the needs of different sites.
