Round Gold Mill Plant Wet Pan Mill

 1 : The Introduction of wet pan mill

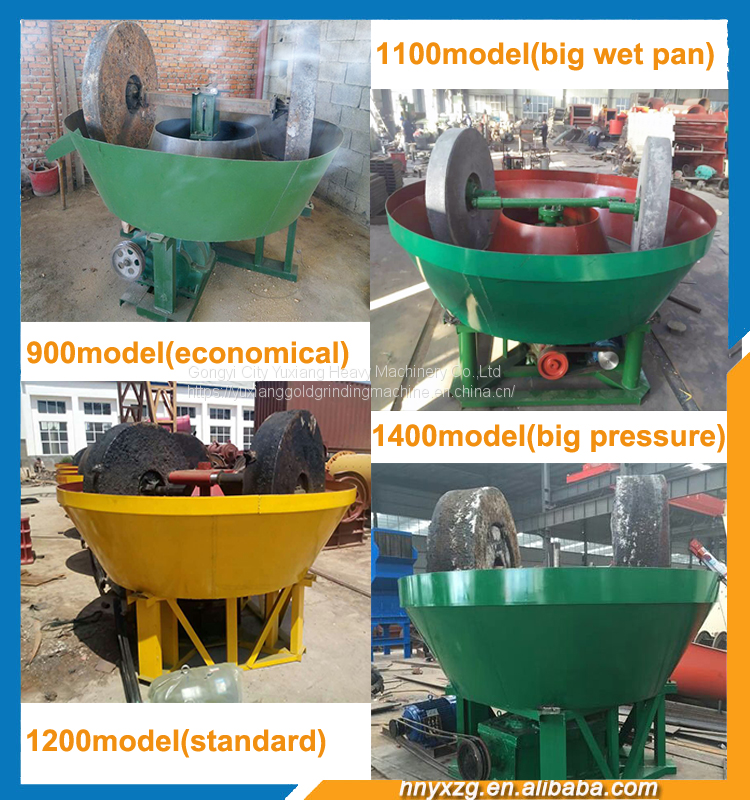

Wet pan mill is the best equipment to replace ball mill. because it have small investment, high output, low production cost, good efficiency and easy installation. And the machine is the ideal beneficiation equipment for small and medium-sized enterprise. wet pan mill is mainly used to process the gold, silver, lead, zinc, iron, molybdenum, copper, antimony. The wet pan mill is named by the diameter of roller. Φ1300,Φ 1350,Φ 1400,Φ 1500,Φ 1600 is suitable for selection of iron ore, molybdenum ore ,lead ore ,zinc ore, antimony ore and so on. Φ 850, Φ 900, Φ 1000,Φ 1100,Φ 1200 is suitable for selection of gold ore. Above all, 1200a type is the most popular and widely use.

 2 : Working Principle of wet pan mill

The wet pan mill repeatedly squeeze and mill gold ore through the weight of the wheels until the gold ore has been crushed completely. And then add 1 kg mercury into the water . Meantime, every 5-10 minutes, add gold ore to the machine. After 24 hours, recycle mercury. Then pack mercury with big density of cloth. Twist the cloth and let the mercury come out. The gold will be left in the cloth.

wet pan mill list

 *Notes: The model is named according to the diameter. Diameter*Thickness*Width+20mm.

◊ The raw material should be put into the machine after the machine running normally.
◊ This machine is not allowed to state with the material in the machine. If the machine is stopped because of stoppage, the residual material in the machine should be cleared. Then start the machine again.

◊ The material should be put into the machine uniformity, not sometimes much sometimes less. It's better to use a feeding equipment.
◊ The bearing part should be add butter regularly.
◊ Every bolts should be checked to avoid flexible.
◊The bearing should be changed in time if it is damaged to avoid damage other parts.
◊ While the machine is running formally, you should check if there is abnormal sound in the reducer box and or bearing part, if there is a too high temperature, if there is too big motor current and so on. If it happened, you should stop the machine to remedy of the trouble.
◊ The motor V-belt should be removed while examine and repair the machine for your safe.

Professional technical team is at service

Gongyi City Yuxiang Heavy Machinery Co.,Ltd has professional technical team.They can make drawings by Auto CAD or 3D Solidworks.When customer has special request,our technical department can structure the machine in 3D format to simulate the working condition.In this way,we can remove the interfere items in advance.And we have the complete installation instructions about all of our machine.In this way,the customer can have all machines ready to produce soon even they are not familiar with this machine or first order from us.

**What you are buying is not only a wet pan mill machine,but also a complete aftersale service system!

And Our technical department can design electrical arrangement and the related machines needed.

Professional production team

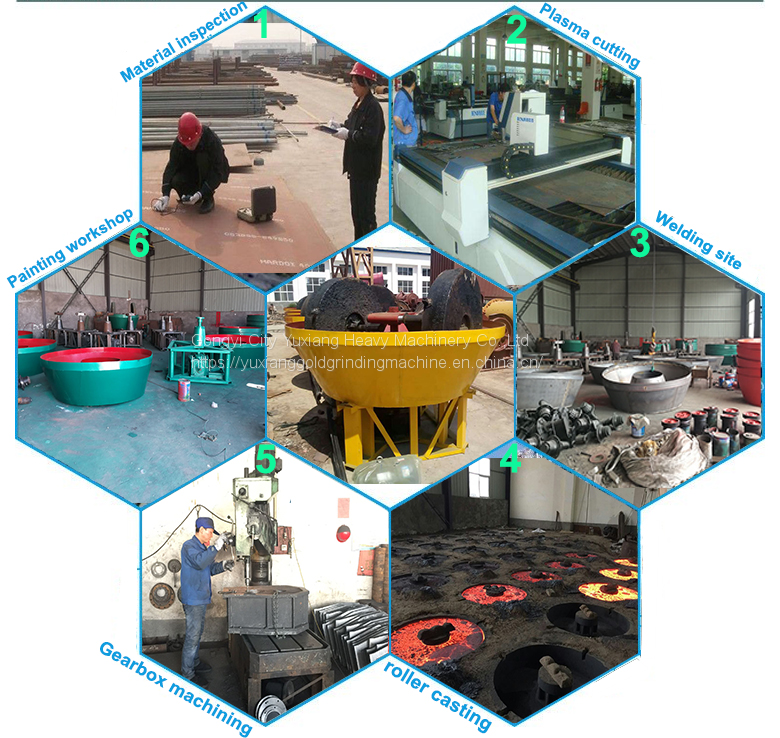

Our company equipped with big high efficiency equipments like :plasma cutting,bending machine,welding machine,painting line,etc.

Standard 1100 model and 1200 model wet pan mill in the stocks so we can delivery after order.

 For 1300 and above size,we have parts in the stock,so we can delivery within 5days after order.

GONGYI YUXIANG HEAVY MACHINERY CO.,LTD. is an professional manufacturer of wet pan mill&mining series machines,with R&D team, excellent technical team, sales team and strong production capability, we have been devoting our self to the development and promotion of gold mining machinery and all our products have got CE certificates.
