Free Platform 3 Phase 1(5)A Input Smart Din Rail 45~65Hz Wifi Wireless Electricity Energy Meter RS485 with Modbus-RTU Protocol

FOB Price

CNY 950 - 1000 / Piece

2 Pieces(Min.Order)

Supply Ability 100 Piece / Pieces per Month
Port shanghai
Payment Terms:T/T Credit Card PayPal Cash
Delivery Detail:15 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	Acrel	Place of Origin:	China	Model Number:	ADW300-WIFI/CT200(APP)
Phase:	Three Phase	Output Voltage:	380v	Operating Temperature:	-20℃~55℃
Dimensions:	72mm87.8mm71.5mm	Display Type:	Digital Only	Accuracy Class:	0.5
Measuring Energy Range:	0-9999.99kwh

Product Description

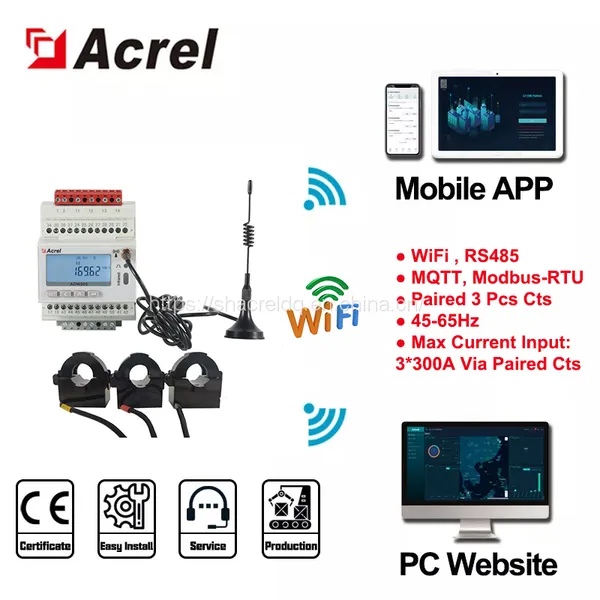

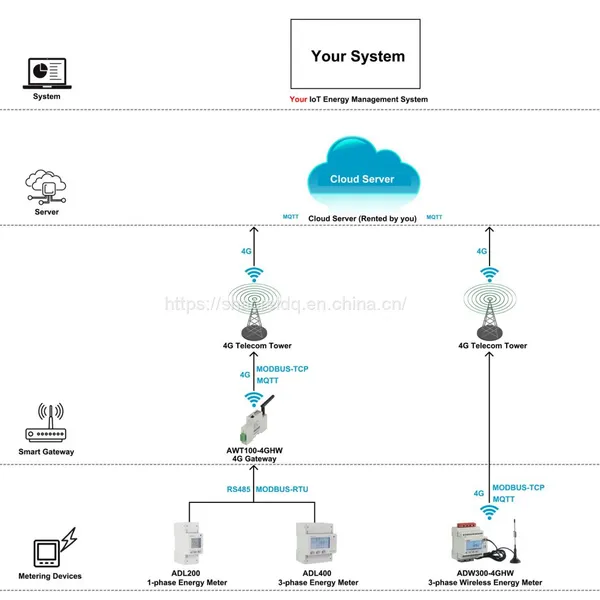

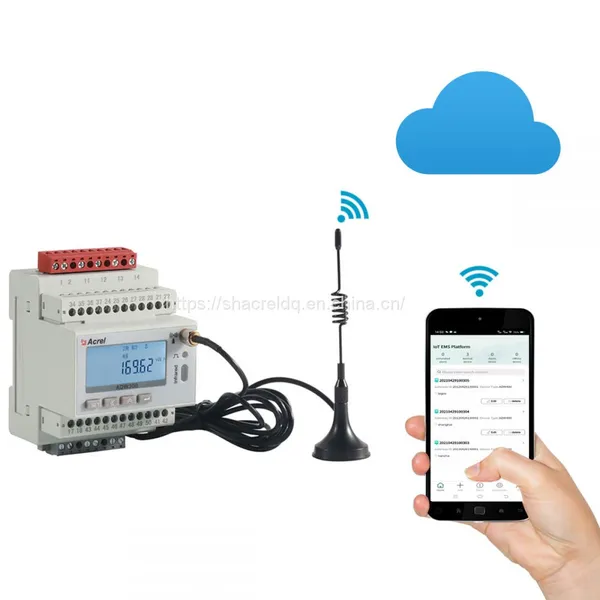

ADW300-WF wifi IoT 3-phase Wireless Smart Energy Meter+ 3 pcs 0-300A/5A cts

(IOT Platform with WEB&APP Access)

ADW300 wireless energy meters have multiple built-in communication modules designed for different situations when paired with IoT energy management systems or other demands for remote connection. Meanwhile, ADW300 can provide various extraction function modules and various electrical parameter measurements to meet different requests from customers. Also, as proof of quality, ADW300 is strictly compliant with the standard of IEC 62052-11; IEC62053-22; LVD.

Noted: If you have any special requirements, for example, another bandwidth and communication solution or special power supply and size, please feel free to Contact Us.


Specification

Optional

● Communication Methods: WiFi - Support 2.4GHz or 5GHz, RS485

● Communication Protocol: MQTT, MODBUS-TCP

● Measurement: 3-phase Active Power, Reactive Power, Current, Voltage, Harmonic and etc.

● Application Scenario: Building, Factory, Smart Grids, DB Room and etc

● Rated Voltage: Up to 3x660~792Vac L-L

● Rated Current: 3x300A AC (via CTs)

● HMI Programming: Setting of CT/PT Ratio, Phase Wiring, Communication and etc

● Standard&Certificate: CE; IEC; LVD

●K: 4DI/2DO

●T: 4 channels temperature

●L: 1 channel residual current

●LR: Lora

●4G: 4G-LTE

●NB: NB-IOT wireless communication

●LoRaWAN

Function

Three-phase voltage, current, frequency power, total power (active, reactive, apparent) Voltage and current phase angle, voltage, and current imbalance.

Voltage, current total harmonic, and 2-31st harmonic.

Record of extreme values of voltage, current, and power in the current month and last month

Maximum current, power demand, and real-time current, power demand.

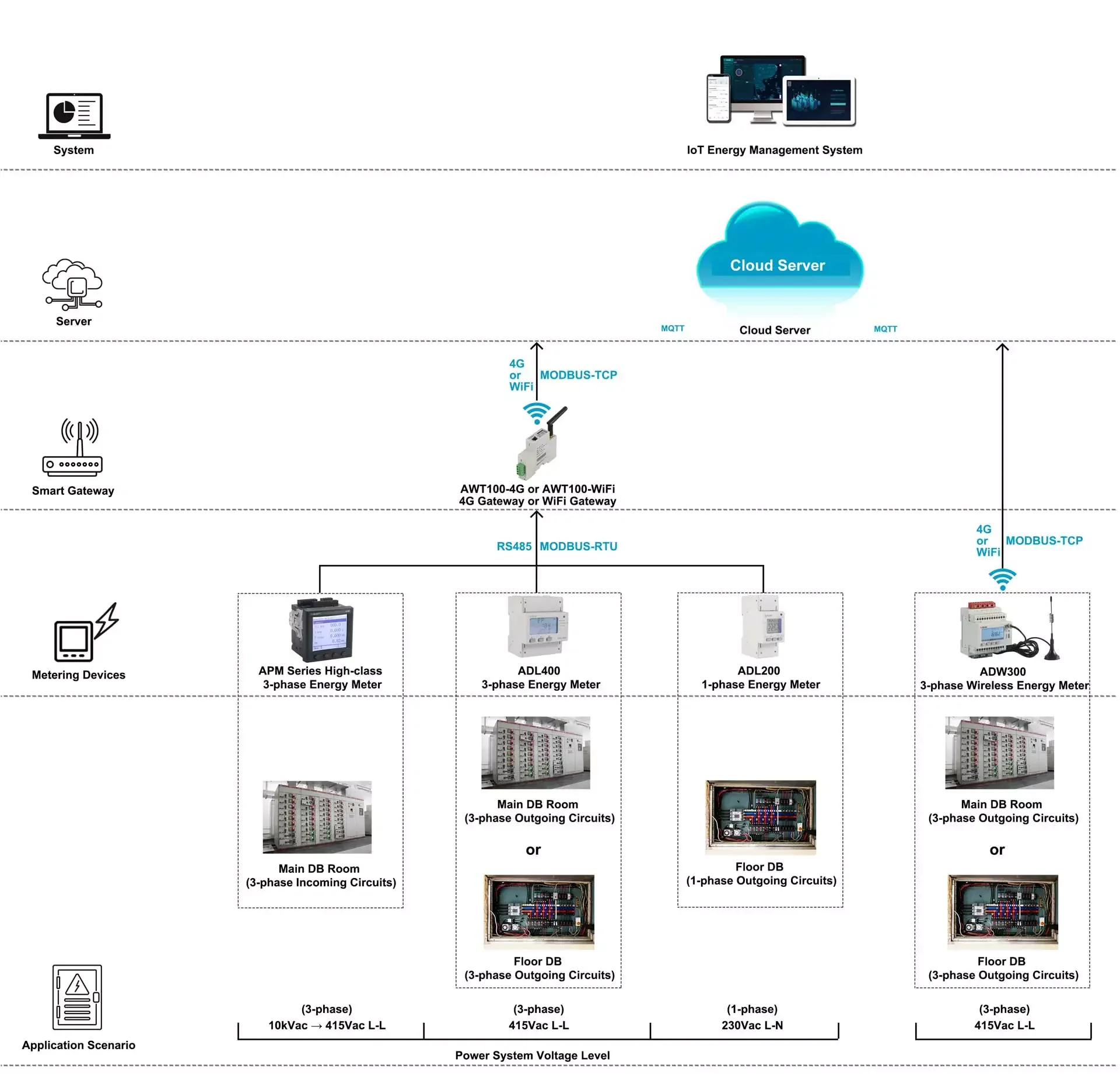

	Multiple Communication Methods Optional ● 4G LTE ● NB-IoT ● WiFi (2.4GHz&5GHz) ● LoRa ● RS485 (MODBUS-RTU) ● Paired with IoT Energy Monitoring System
	Power Quality Analysis ● Total Harmonic ● 2nd~31st Harmonic ● Voltage Unbalance ● Current Unbalance
	Expanded Function Optional ● 2-channel DO (Digital Output) ● 4-channel DI (Digital Input) ● 4-channel Cable Temperature Monitoring ● 1-channel Residual Current Measurement
	Alarm Function ● Over/Under Current ● Over/Under Voltage ● Over/Under Power ● Phase Loss

1. Function description

Function	Description
Measurement (Standard)	Three-phase AC kWh, kVarh, Active Power, Reactive Power, Quadrant Reactive Power Energy, Current, Voltage, Voltage&Current Unbalance, Power Factor, Apparent Power, Frequency, Harmonic (2~31st&THD)
Measurement (Optional)	Temperature Measurement:4-channel (A, B, C, N) Cable Temperature Monitoring; Thermistor: NTC; Range: -40~+99℃; Accuracy:±2℃
Measurement (Optional)	Residual Current Measurement: 1-channel Residual Current Monitoring (Need to be paired with Residual Current Transformers)
Communication (Optional)	RS485 Port with Modbus-RTU protocol - 1 start bit,8 data bits,1 stop bit, no parity; Baud Rate 1200~38400 bps, etc. Infrared Communication - Constant Baud Rate 1200 bps
Communication (Optional)	4G LTE - Normal Communicaiton Module Support: LTE-FDD: B1/B3/B5/B8; LTE-TDD:B34/B38/B39/B40/B41 4G LTE - Global Communication Module Support: LTE-FDD: B1/B3/B5/B7/B8/B20/B28; LTE-TDD: B38/B40/B41
	WiFi - Support 2.4GHz or 5GHz
	LoRaWAN
	LoRa
	NB-IoT
Display (Standard)	LCD Display and LED Indicator
HMI (Standard)	Keypads Programming: Setting of CT/PT Ratio, Communication, Phase Wiring and etc
Software (Standard)	Adjustment Software: Setting of Data Upload Interval, WiFi configuration (Account&Password), Server Address, Port and etc
Alarm Function (Standard)	Undervoltage, Overvoltage, Undercurrent, Overcurrent, Underload, Overload, Communication Disconnection and etc
I/O Function (Optional)	4-channel or 2-channel DI (Digital Input) 2-channel DO (Digital Output)

2. Technical parameter

Parameter	Description&Value
Voltage Input	Rated Voltage	3x380~456Vac L-L or 3x660~792Vac L-L (via direct connection) 3x100~120Vac L-L (via PTs)
	Reference Frequency	45~65Hz
	Power Consumption
Current Input	Rated Current	3x300A AC (via CTs)
	Starting Current	1% Ib (Class 0.5); 4% Ib(Class 1)
	Power Consumption
Phase Wiring	3P4W	3-phase 4-wire
Phase Wiring	3P3W	3-phase 3-wire
Auxiliary Power Supply	Voltage Range	85~265Vac
Auxiliary Power Supply	Power Consumption	<2W
Measurement Performance	Standard	IEC 62053-22:2003; IEC 62053-21:2003
Measurement Performance	kWh Accuracy	Class 0.5S
Pulse	Width of Pulse	80±20ms
Pulse	Pulse Constant	6400imp/kWh; 400imp/kWh

3. Environment

Condition	Description&Value
Temperature	Operating Temperature: -20℃~+55℃; Storage Temperature: -40°C ~+70°C
Humidity	≤95%RH, no condensation, without corrosive gas
Altitude	≤ 2000m

PIN Overview of ADW300


3-phase 3-wire CT operated	3-phase 4-wire CT operated
Current&Voltage&Power Supply Wiring of ADW300

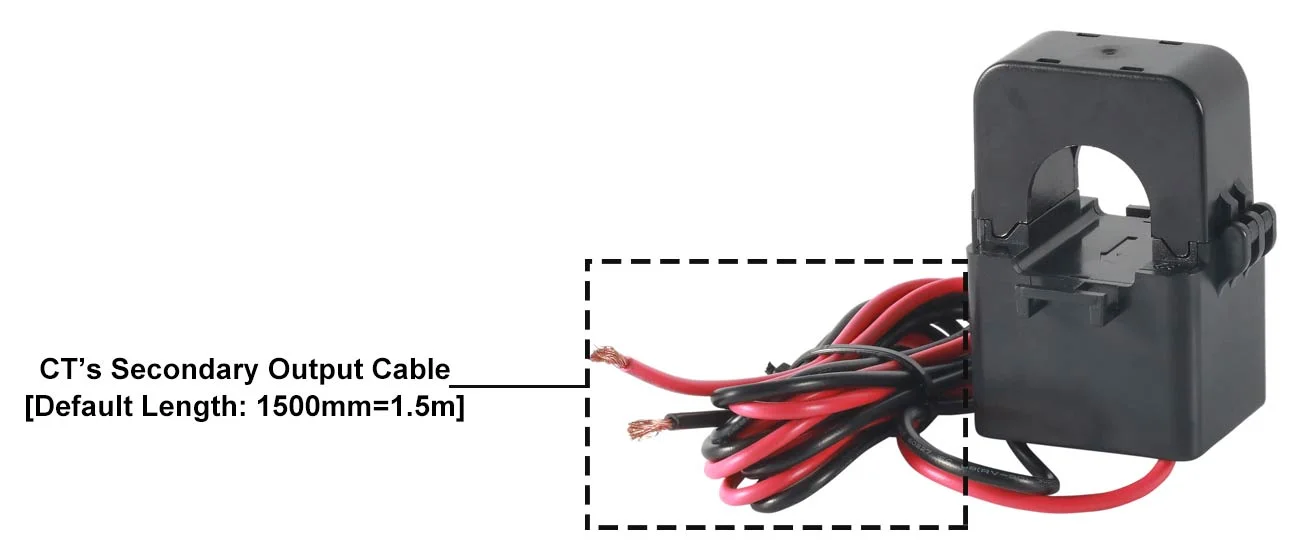

AKH-0.66/K K-φ Series Split Core Current Transformer
