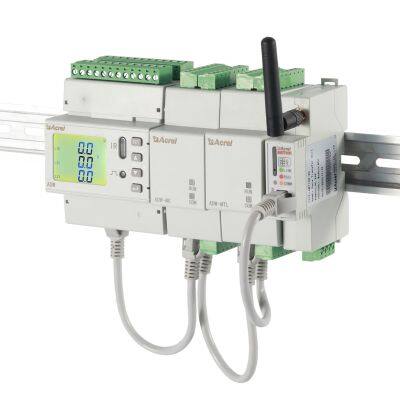

Acrel ADW210 Series Multi channel IOT three phase energy meter with RS485 Modbus

Name: Acrel ADW210 Series Multi channel IOT three phase energy meter with RS485 Modbus
Brand: Acrel
Availability: InStock

FOB Price

USD $165.9 - $165.9 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Shanghai
Payment Terms:T/T L/C D/P D/A Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	Acrel	Place of Origin:	China	Model Number:	ADW210-D24
Phase:	Three Phase	Output Voltage:	380V	Operating Temperature:	-20℃~+55℃
Dimensions:	88*54mm	Display Type:	Analog Only	Accuracy Class:	Class 1
Measuring Energy Range:	0-99999KWH

Product Description

Overseas sales engineer: Christine Chu

email:Christine.chu@email.acrel.cn

Mob:+86 18706168051(whatsapp/skype/wechat)

General

          ADW210 series multi-loop power meter is mainly used for the measurement of all electric parameters of three-phase circuit.Colleagues can select the current input of the maximum four circuits. ADW2XX series products are connected by split core current transformer, easy to install on site, and realize remote wireless communication through wireless communication module.

Parameters

Auxiliary power		AC/DC 85～265V; Consumption≤10VA;
Input	Frequency	45～65Hz;
	Voltage	AC 3×220V/380V; Overload: 1.2 times of rated value (continuous); 2 times of rated value / 1s; Power consumption: ≤ 0.5VA;
	Current	AC 5A、100A、400A、600A;(External opening transformer); Power consumption: ≤ 0.5VA; Overload: 1.2 times of rated value (continuous); 10 times of rated value / 1s;
Measurement accuracy		Frequency 0.05Hz, voltage、current Class 0.5; 2-31st harmonic accuracy: ± 1%; Active electric energy level 1, reactive electric energy level 2;
Features	Pulse output	Output mode: optocoupler pulse with open collector;
	Communication	RS485、Modbus-RTU; Baud rate 1200～38400;
	Switching Input	Dry contact input、Built in power supply;
	Switching Output	Output mode: Relay normally open contact output; contact rating: AC 250V/3A DC 30V/3A;
