Home > Products > Climatic Chamber > Programmable Salt Spray Test Equipment For Powder Coating

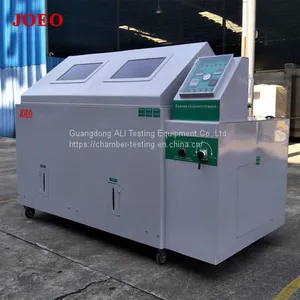

Programmable Salt Spray Test Equipment For Powder Coating
- 300 Bag / Bags per Month
- Guangdong,China
- T/T L/C
- 15 days
- solar panel salt spray test box, used to test the corrosion of materials
- Antiwear Salt Spray Test Equipment , Programmable Salt Mist Chamber
- Relative Humidity 85% Salt Fog Test Chamber Tower Spray System
- Programmable Salt Spray Corrosion Test Chamber Testing Room Capacity108L
- Programmable Environmental Stress Chamber Rain Test Machine
- Rain Spray Environmental Test Chamber Dustproof Stainless Steel
Product Description
Inlet and drainage system:
The water inlet adopts the automatic water replenishment system. When the water level is too low, it will be replenished automatically, and manual water replenishment can be used.If you need more models about our test equipment, please reference our chamber-testing(.)com
Drainage water pump with acid, alkali and corrosion resistance, increase the service life, reduce the waiting time for drainage.
All pipeline accessories are imported acid-alkali corrosion resistant components, long life.
Humidification system:
1. Electronic bit mode P.I.D micro humidification system is adopted.
2. Attached overheat and overflow double protection device.
3. The humidification and dehumidification systems are completely independent.
4. Water level control mining height molecular floating ball water valve.
5. Automatic humidifying water replenishment device.(the machine should be connected to the water source)
Dehumidification system:
The evaporator condenses and dehumidifies, and the humidity is stable.
Bubble acceleration humidifier, humidity stability rate is fast.
Adopt high speed return air extraction system.
Safety protection device:
1. With leakage power off type no fuse protection switch.
2. Low water level protection switch.
3. Low-salt protection switch
4. Double overtemperature protection device can prevent mechanical or electronic movement from losing control.
5. Failure point Chinese indication screen.
Inside box size(cm) | 60x45x40 | 90x60x50 | 120x80x50 |
Outside box size(cm) | 107x60x118 | 141x88x128 | 190x110x140 |
Testing room temperature | Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃ | ||
Pressure barrel temperature | Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃ | ||
Brine temperature | 35℃±1℃ 50℃±1℃ | ||
Testing room Capacity | 108L | 270L | 480L |
Brine tank capacity | 15L | 25L | 40L |
Salt concentration | The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O) | ||
Air pressure | 1.00±0.01kgf/cm2 | ||
Spray volume | 1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average) | ||
Testing room relative humidity | 85% above | ||
PH | 6.5~7.2 3.0~3.2 | ||
Spray form | Programmable spray (Including continuous and intermittent spray) | ||
power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
