Home > Products > stone cutting machine > Hualong Machinery Automatic granite curbstone Multi-disc Cross Cutter Line paving stone cutting machine for slab cutting to size
Hualong Machinery Automatic granite curbstone Multi-disc Cross Cutter Line paving stone cutting machine for slab cutting to size
- 78 Set / Sets per Month
- XiaMen or FuZhou
- T/T L/C Other
You May Like
-
HUALONG machinery HKNC-400J Italian Esa cnc 5 axis sawjet marble countertop Water Jet granite Bridge Saw Cutting Machine
-
HUALONG machinery Italian system sawjet 5 Axis CNC granite marble Bridge Saw and 3 axis Water jet Stone Cutting Machine
-
Hualong Machinery 16 heads Stone Machine kota stone polishing machine Synthetic quartz stone production line
-
Hualong Machinery 24 heads granite polishing machine for Resin Line granite polishing with 12-24 heads high speed
-
HuaLong machinery HLQY-32-1700 Machinery High Efficiency Multi-blade Cutting Granite Machine block cutting equipment
-
HUALONG machinery HLQY-32-1700 Multi-blade Block Cutting Machine bridge saw with 6 pillars
Product Details

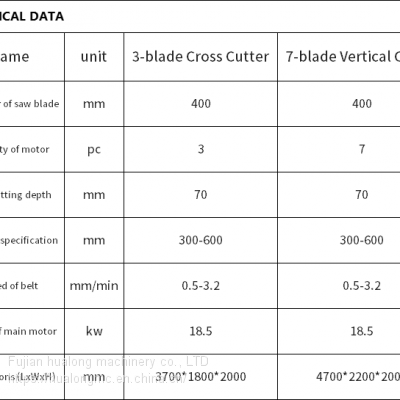

| Brand Name | Hualong | Place of Origin | China | |
| Type | Stone Cutting Machine | Use | Other, Building Material Shops, Manufacturing Plant, Construction works , Stone Processing | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 Year | Weight | 3000 kg | |
| Dimension(L*W*H) | 8400*2200*2000mm | Production Capacity | 100 set/per month | |
| Condition | New | Voltage | 380V/50Hz | |
| Power(W) | 18.5 kw |
Covered by plastic PE film wholely and with anti-skif packing stuitable for shipment by container
Product Description

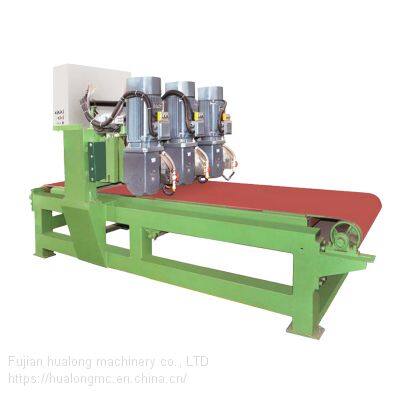

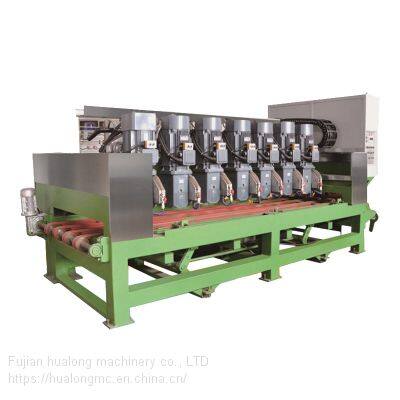

Multi-disc Cross Cutter
Hualong HLCC-3/7 is an automatic cross cutting production line designed for cutting granite and marble slabs to size. The max cutting depth is 70mm. It can be fitted with up to 7 independent cutter groups. This is an extremely high efficiency equipment for slab cutting-to-size mass production.
Features
1) The slab to cut is positioned on a conveyor which travels on the workbench. The conveyor consists of a multilayer belt with a thick rubber coating ideal for resisting cuts caused by the diamond disc cutters when operating.
2) The slab automatically stops when it reaches a concealed end stop.
3) A motorised longitudinal end stop maintains the slab aligned during cutting operations.
4) Once cutting operations have terminated the discs are raised off the workpiece and then returned to their original position and the slab cut into tiles is discharged from the machine and a new slab is fed in.
Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
Company Profile
Our History
Hualong Machinery Co., Ltd, establishd in 1989, is a leading manufacturer of stone machinery and equipment in China, which occupies a land area of over 50,000 square meters, and has more than 300 skillful employees. The company has passed ISO9001:208 quality system certification and the European CE safety ceftification.
Our main products contains stone quarry machine series and processing machines series, including block cutting machine, bridge saw and CNC machines, CNC processing center, polishing line machine etc. The products have enjoyed a high reputation in domestic market and were also sold to over 20 countries such as USA, UK, Germany, France, Spain, Finland, Russia, Uzbekistan, India, Indonesia, Vietnam, Australia, Egypt, South Africa, Nigeria, etc.
With strong R&D ability and manufacture capability, certificated as a high-tech enterprise by government, we can supply special machine custom-made on request, and offer global after-sale service..
Welcome visiting and enquiry. Looking forward to a good start and long-term cooperation with you.
Our Factory
Hualong Machinery Co., Ltd, establishd in 1989, is a leading manufacturer of stone machinery and equipment in China, which occupies a land area of over 50,000 square meters, and has more than 300 skillful employees. The company has passed ISO9001:208 quality system certification and the European CE safety ceftification.
Our Product
Stone quarry machine, block cutting machine, bridge saw and CNC machines, CNC processing center, polishing line machine and robot palletizer, etc.
