ABOT 160V-260V Single Phase AVR 220V Servo Voltage Stabilizer 30KVA
- 1 Set / Sets per Month
- Shenzhen
- T/T Credit Card Other
- 7 days
- ABOT Three Phase Static Voltage Stabilizer 100KVA 50/60Hz 380V 400V 415V
- ABOT For Generator Use 3 Phase Full Automatic SBW Voltage Stabilizer 400V/380V
- ABOT 150V-260V Input 220V Output Single Phase SVC Voltage Regulator Stabilizer
- ABOT Servo Motor Type Pure Copper With Compensation SVC Voltage Stabilizer 3 Phase
- ABOT Outdoor Use Three Phase 400V to 220V 230V Step Down Dry Type Isolation Transformer
- ABOT Three Phase 415 Volt to 690/400V/380V/220V Volt Dry Type Isolating Step Down Transformer
Product Details
Brand Name: | ABOT | Place of Origin: | China | Model Number: | SVC-20KVA |
Usage: | SVC | Phase: | Three Phase | Current Type: | AC |
Product Description
Brief Introduction:

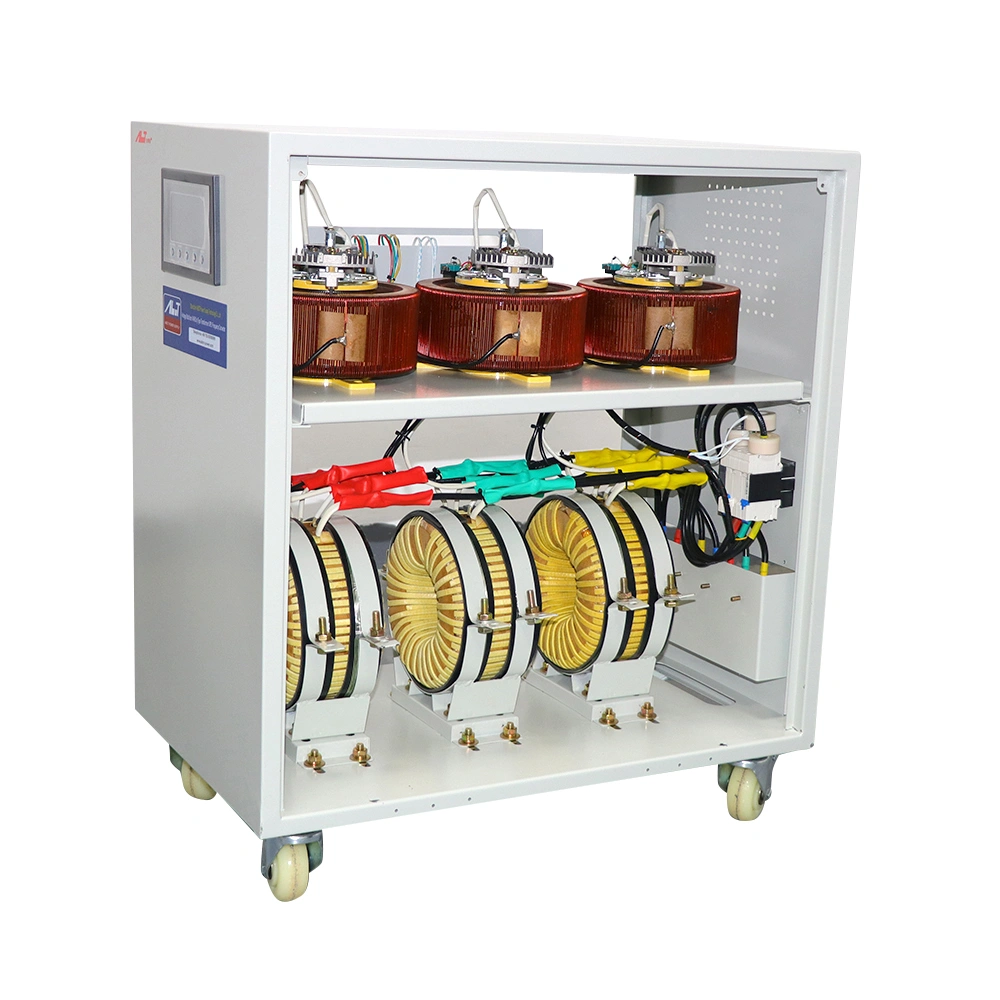

SVC series single and three phase full automatic AC voltage regulator is made of contact type auto regulator, servo motor and auto controlled circuit. When the voltage is unstable or load changes, the auto control system will send signal to start servo motor, to let output voltage adjust to rated value and stable voltage.
Technical Parameters
Input | Voltage | 220V ±20% |
Frequency | 50Hz/60Hz | |
Output | Rated Voltage | 220V±2% |
Accuracy | ±(1~5)% optional (±2% general setting) | |
Response Time | <1s | |
Waveform Distortion | No additional waveforms generated (static) | |
Efficiency | ≥98% | |
Overload Ability | 150%(60min) 300%(10min) | |
Relative Humidity | 20%~90% | |
Seismic Coefficient | 0.3G | |
Ground Clearance | >8mm | |
Ground Resistance | 0.1Ω | |
Heat Resistance of Wire | Level H, 180℃ | |
Noise | ≤55dB | |
Cooling System | fan |
Product Dimensions
Model | Capacity (KVA) | Power (KW) | Phase | Input | Output | Current(A) | Size(mm) L*W*H | Weight(KG) |
SVC-3009 | 6 | 4.8 | 3 | 380V±20% | 380V±(1-5)% | 9 | 500*350*480 | 28 |
SVC-3010 | 10 | 8 | 15 | 500*350*480 | 36 | |||
SVC-3015 | 15 | 12 | 23 | 500*400*730 | 80 | |||
SVC-3020 | 20 | 16 | 30 | 500*400*730 | 90 | |||
SVC-3030 | 30 | 24 | 45 | 500*400*730 | 105 | |||
SVC-3040 | 40 | 32 | 60 | 610*480*850 | 150 | |||
SVC-3050 | 50 | 40 | 76 | 500*400*730 | 160 | |||
SVC-3060 | 60 | 48 | 91 | 500*400*730 | 180 | |||
SVC-3080 | 80 | 64 | 121 | 660*510*1120 | 220 | |||
SVC-30100 | 100 | 80 | 152 | 660*510*1120 | 240 |
Q1, Are you a manufacturer or a trading company?
Re: We are an original manufacturer working from design, production to sell, specializing in various voltage regulator stabilizer, transformer, UPS and solar inverter for more than 11 years.
Q 2, what's the payment terms?
Re: We accept T/T, PayPal, Western Union, Alipay.
Q 3, What is your standard of packaging?
Re: For the small capacity voltage regulator stabilizer/transformer/UPS/solar inverter, we will use carton, for big capacity products, we shall use strong wooden case for good protection.
Q 4, Can you accept OEM /ODM?
Re: Yes, we welcome OEM/ODM orders for voltage regulator stabilizer/transformer/UPS/solar inverter. We offer customer with customized products, as we have strong R&D team with 5 experienced engineers to meet kinds of custom requirements.
Q 5, how's the delivery time ?
Re: Usually it will take about two weeks for production, also depending on the order quantity. Voltage regulator stabilizer/transformer/UPS/solar inverter.
Q 6, How do you control quality?
Re: We have QC to inspect the goods during materials coming, production, and packaging. 100% full inspection is guaranteed before delivery.
Q 7, What's your shipping method?
Re: We are in Shenzhen, near to Hong Kong. All shipments are convenient here. International express (TNT, UPS, DHL and FedEx), by air and by sea. We always compare at least 3 shipping costs before decision.
