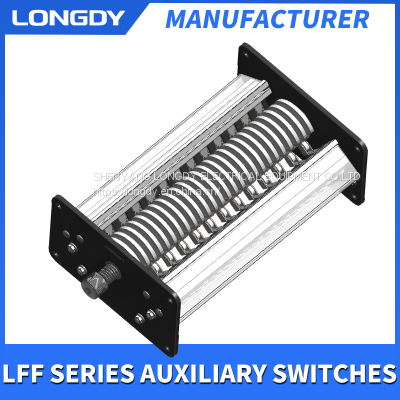

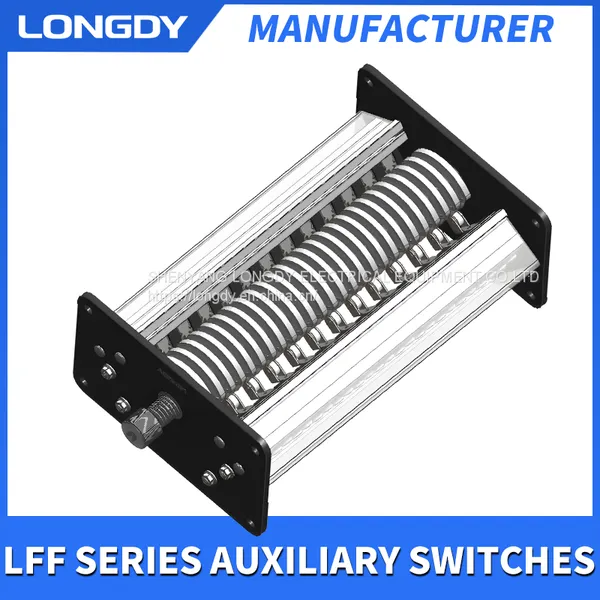

Auxiliary switch circuit breaker ten open and ten close high-voltage switch circuit breaker crimping wiring

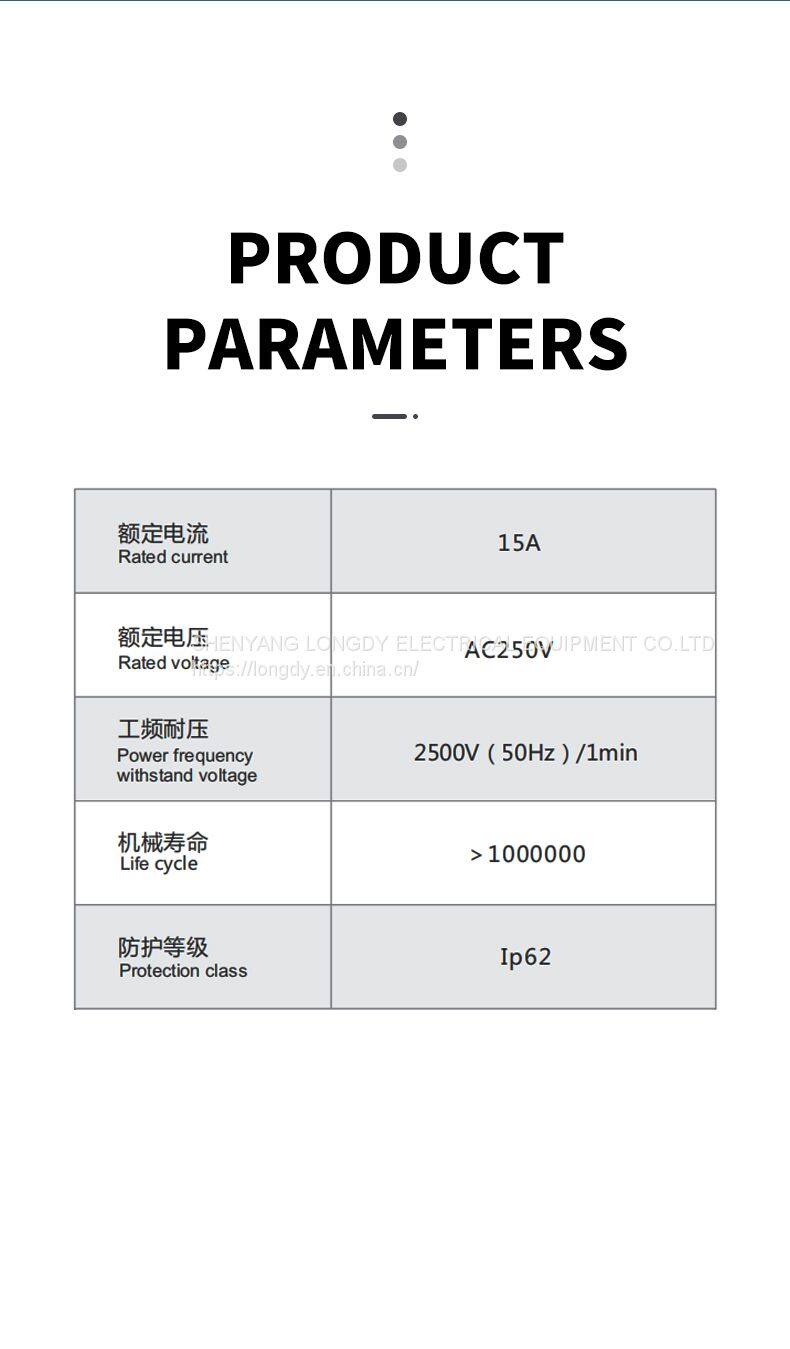

Rated voltage: AC250V
Rated current: 15A
Power frequency withstand voltage: 2500V (50Hz)/1min
Protection level: IP62
Mechanical life:>1000000 times

Product Overview

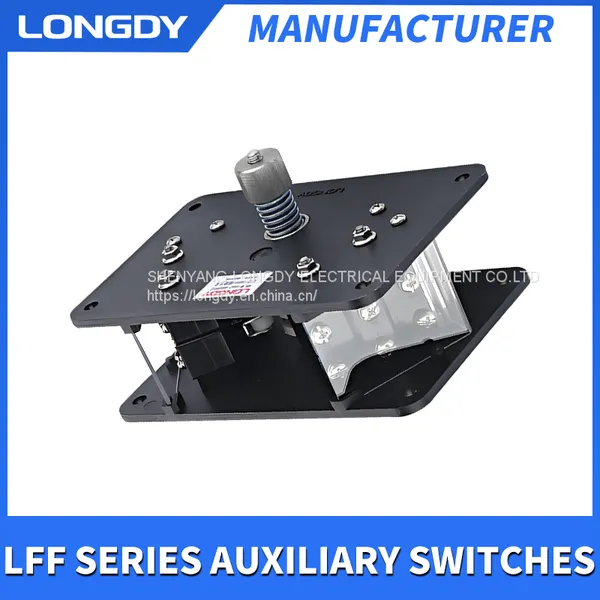

LFZ series auxiliary switches are one of the supporting components of high-voltage equipment, suitable for controlling the closing, opening, interlocking, and signal circuits of various high-voltage switch operating mechanisms. They can also be used as conversion or combination switches.
The LFZ series auxiliary switches are directly equipped with Omron micro switch groups, which have strong breaking capacity, high carrying current, long service life, and high reliability. Due to the characteristics of its equipped microswitch, it does not rely on external driving speed to determine the opening and closing speed, making it very suitable for use on mechanisms with slower driving speeds, effectively ensuring the breaking capacity.
The cam group of the LFZ series auxiliary switch adopts a stepless adjustable angle structure design, which achieves the angle adjustment of a single or multiple cams through the adjustment of clamping force. This achieves the "universal angle" setting of the auxiliary switch and ensures the locking force to ensure the reliability of the auxiliary switch. The switch is widely applicable and convenient for on-site adjustment.
environment condition
1. Surrounding air temperature: -25 ℃~+80 ℃;
2. Altitude: not exceeding 5000 meters;
3. Humidity: Within 24 hours, the average relative humidity shall not exceed 95%; The average pressure of water vapor shall not exceed 2.2kPa; The monthly average relative humidity shall not exceed 90%; The average pressure of water vapor shall not exceed 1.8kPa;
4. Vibration acceleration not exceeding 15m/s ²；
5. The surrounding air is not significantly polluted by dust, smoke, corrosive or combustible gases.
