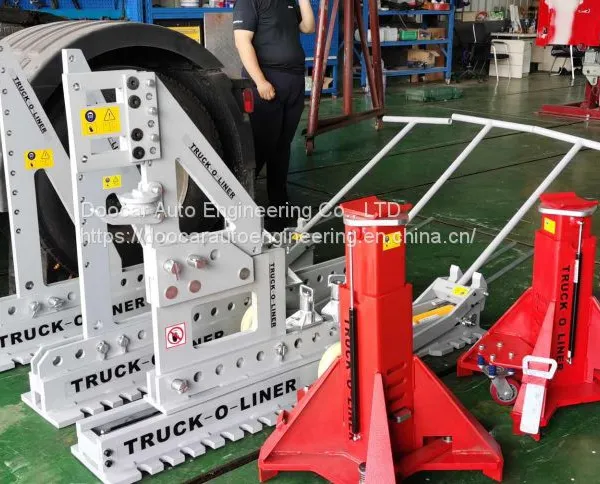

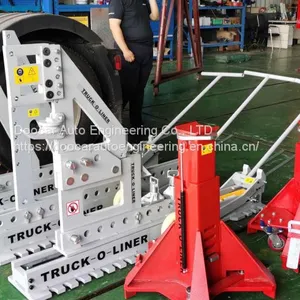

frame press for heavy vehicle frame repair

Truck O Liner Frame press is the most professional and efficient truck frame straightening and repairing equipment.

The Truck-O-Liner frame straightening and repair system, through the combination of Y-direction press, Z-direction press, frame locker, and C-clamp, can effectively deal with lateral bending, vertical bending, distortion, Diagonal

deformation of the frame (including hanging grass) and partial grass frame steel beam deformation are straighteninged and repaired efficiently. The equipment is made of high-strength alloy steel, which fully guarantees the strength of the equipment during the straightening and repair of the frame of the commercial vehicle; the US high-pressure hydraulic system is powerful and powerful, which can easily repair the damaged frame.

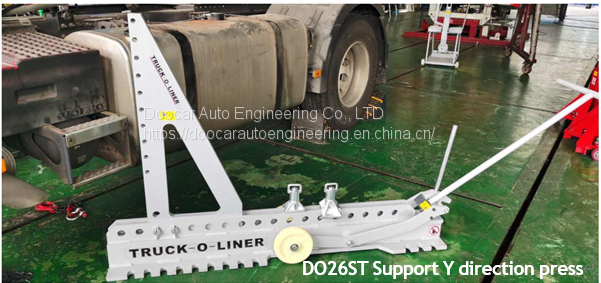

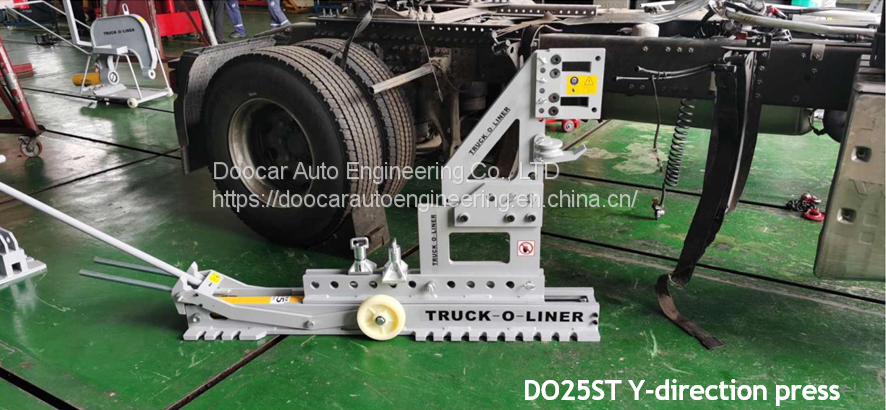

A1、Frame Press D025ST/DO26ST

Made of high-strength alloy steel with high strength, it can meet the increasing maintenance needs of commercialvehicle frames; Equipped with a complete set of various high-strength connection bars, which can meet thecompression and tension repair work of various models and various parts; the design of the press is scientific,compact, small, high-strength, strong, and versatile.

Equipped with 25ton high-pressure hydraulic cylinders made by Enerpec, it has strong power for frame straightening. It is equipped with heavy-duty movable wheels imported from Germany, plus a unique center of gravity optimization design, one operator can easily operate.

Assembled with heavy-duty moving wheels imported from Germany, coupled with a unique optimized design of the center of gravity, it can be easily operated;

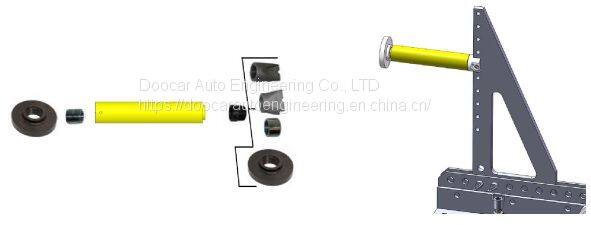

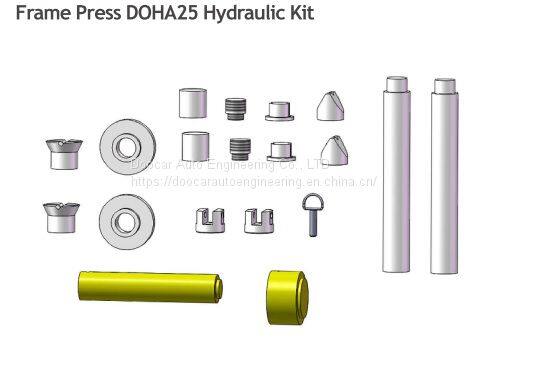

A2 frame press hydraulic kit DOHA 25

DOHA25 hydraulic components can be matched with DO26ST, turning DO26ST into a Y-direction press with the same function as DO25ST. After the DOHA25 component is equipped with a hydraulic pump station, the damaged frame can also be separately corrected and repaired in the left and right and diagonal directions.

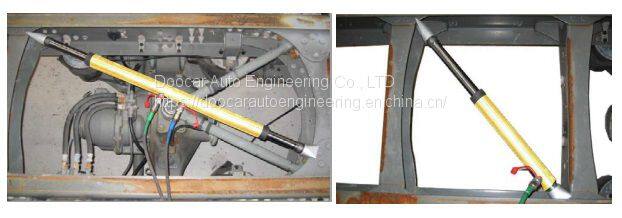

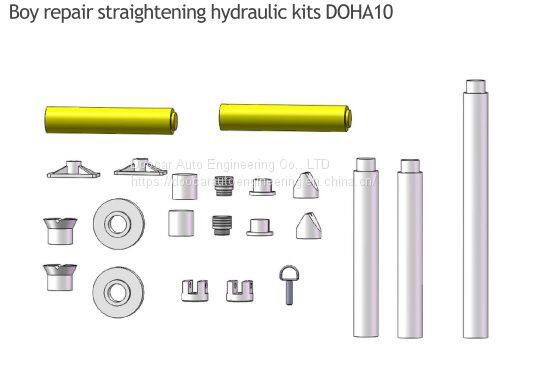

B body repair and straightening hydraulic kit DOHA10

After the DOHA10 component is equipped with a hydraulic pump station, the damaged frame can also be corrected and repaired separately for the front, back, left, and right, and diagonal directions.

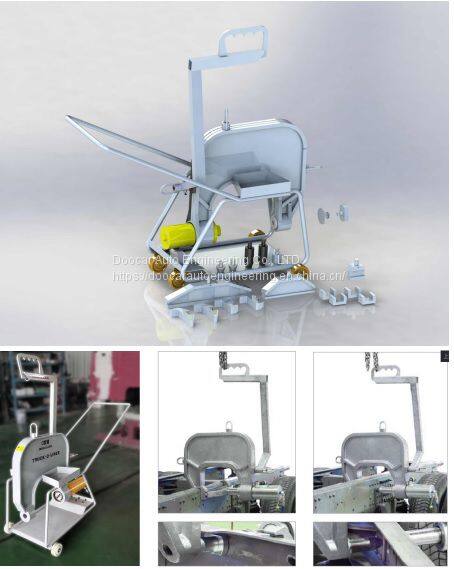

C1 vertical frame press DO2513

DO2513 is used to correct the vertical deformation of the frame. It is equipped with a 25-ton high-pressure hydraulic cylinder imported from the United States. It has strong power, light overall volume and easy jump.

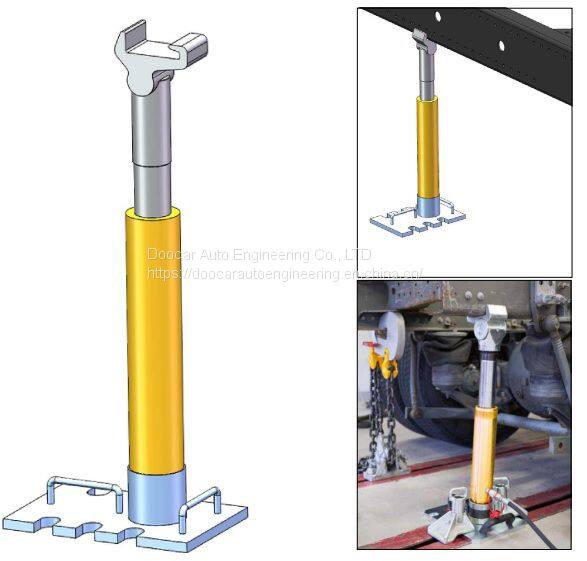

C2 Vertical press DO2480

DO2480, DSR74 Jack can be matched with frame locker and Y-direction press; it can effectively repair the Z-direction vertical deformation of military frame; equipped with 25th electric high-pressure hydraulic cylinder, strong power and correction Easy; equipped with heavy-duty moving wheels, easy to move; equipped with mechanical heightening and locking devices, hydraulic jacking correction can be carried out in a wide range and safety.

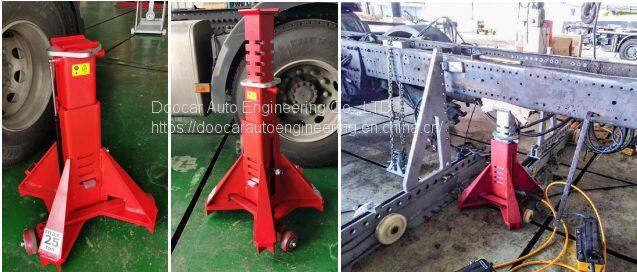

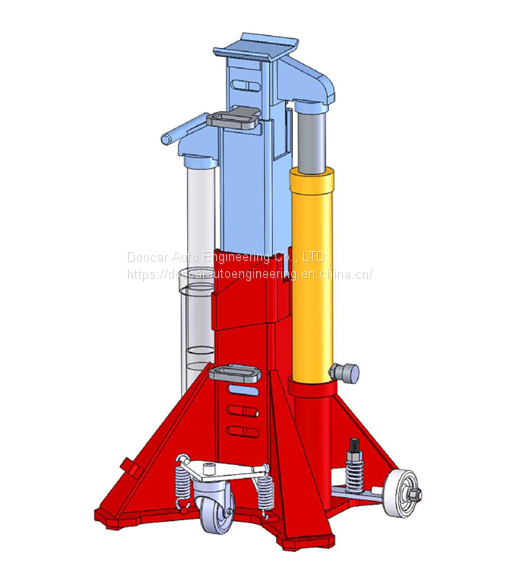

C3 Jack DSR74

DSR74 Jack can be matched with frame locker and Y-direction press; it can effectively repair the Z-direction vertical deformation of the frame; equipped with 25-N high-pressure hydraulic cylinder, powerful power, easy correction; equipped Heavy-duty movable wheels, easy to move; equipped with a full Jt belly height and locking device, which can carry out hydraulic jacking correction in a wide range and safety.

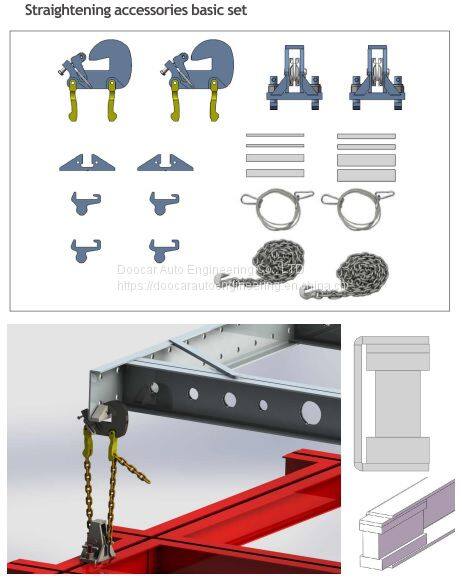

D1 straightening accessories basic set

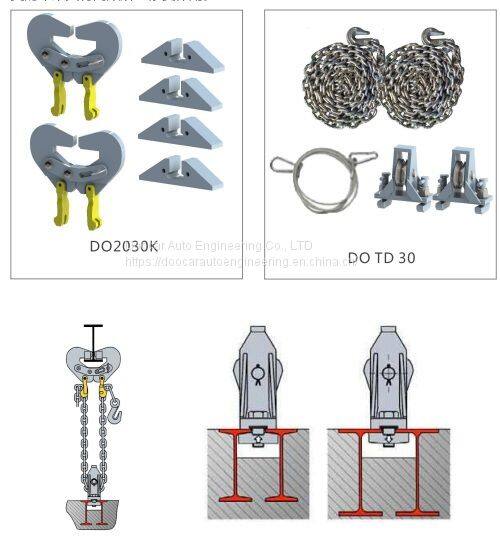

D2 straightening accessories set

The frame locking device must be used in conjunction with the Jack, which can effectively correct and repair the frame that is vertically deformed, twisted and deformed.

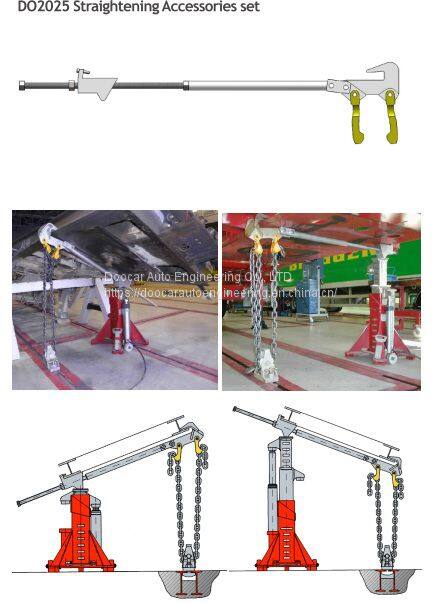

D3 DO2025 straightening accessories set

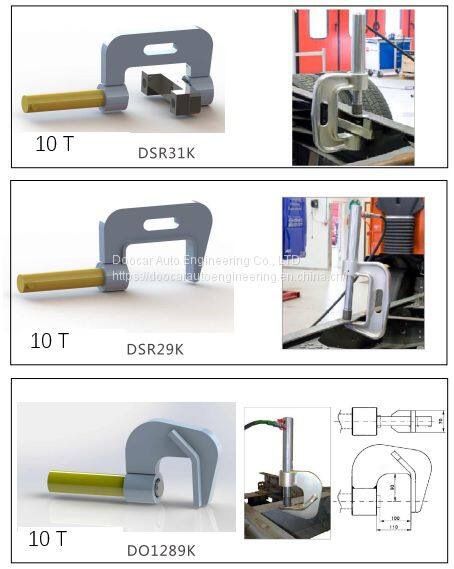

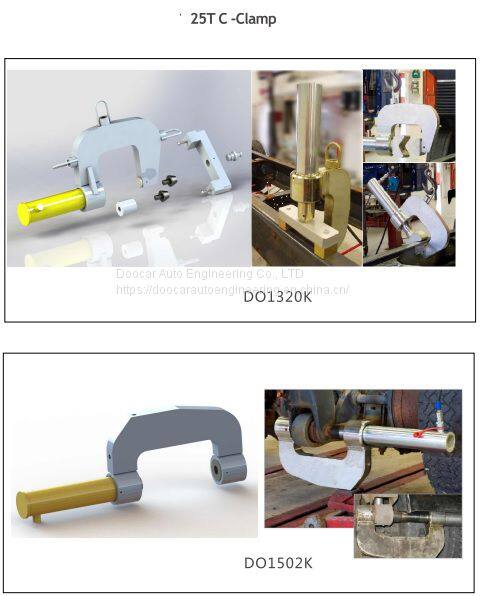

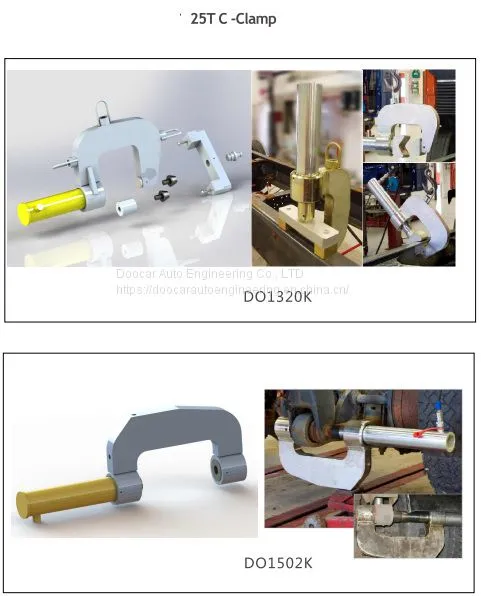

E straightening and riveting c-clamps

Truck-O-Liner C-clamp have the functions of straightening, riveting and bushing replacement. The products range from 10-ton C-type pliers for repairing small local deformation of the frame to 50 tons of C-type pliers for large deformation and cold riveting of the frame. . It can meet the maintenance and body repair of heavy vehicles,

can be used as a good supplement to existing equipment, and can be purchased and used independently.
