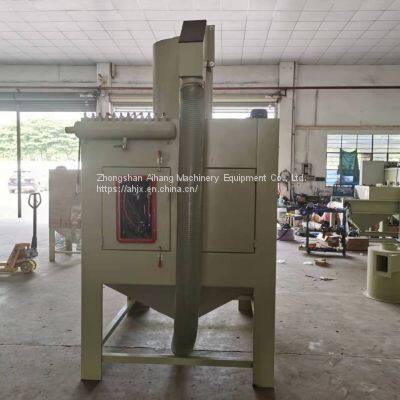

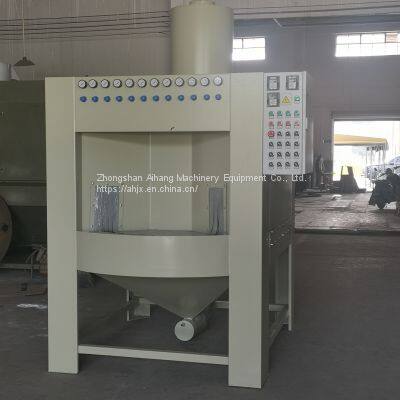

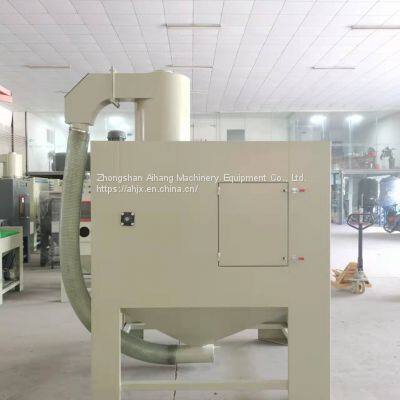

Zhongshan rotary disc sandblasting machine continuous 16 station non stick pot processing rough surface, descaling products

1、 Main technical parameters:

External dimensions of the host: L1200 * W1200 * H3300 (mm)

Large rotary table motor: 0.75KW 380V

Small rotary table motor: 400W 380V

Station: 32 stations

Number of spray guns: 16

Swing motor: 400W 380V

Dust removal fan: 5.5KW 380V

Machine compartment lighting: 2 220V 18W LED lights

Air pressure: 0.2-0.7Mpa

Total power supply: 380V 50-60HZ

Total power: 7KW

Dust removal method: pulse filter automatic dust removal

Our company can customize different types of sandblasting equipment according to customer product requirements

2、 Machine characteristics

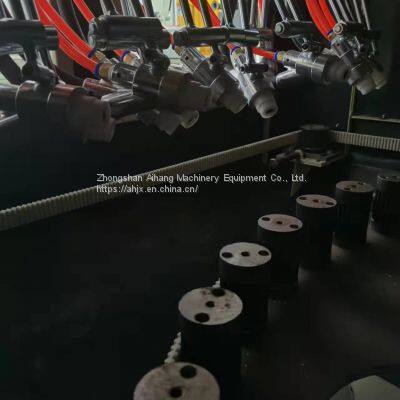

1. The nozzle is made of specially made high wear-resistant boron carbide material, with a long service life;

2. Equipped with 2 workstations, the turntable automatically rotates with clearance (or can be designed for continuous rotation), ensuring stable operation;

3. The clamping is stable, and the workpiece is quickly and conveniently taken and placed;

4. The specially designed cyclone separation system ensures the balanced and consistent sandblasting effect of the product;

5. The small rotary table adopts synchronous belt transmission to prevent slipping;

6. The main components of the host are all made of well-known foreign brand products, with good stability;

7. Independent recycling filter pulse automatic back blowing dust removal system, carefully calculated, with good ventilation performance

Applicable scope:

The entire machine is suitable for sandblasting processing of cylindrical and circular workpieces, square bodies, profiles, and other irregular workpieces, such as non stick pots, lampshades, wine bottles, mobile phone shells, baking pans, toasters, computer cases, functional DVD panels, laptops, iron soleplates, decorative parts, signs and badges, communication equipment, aluminum plates, profiles, and other irregular parts; Rough surface, removal of oxide skin, residue and burrs, rust removal and refurbishment of old parts; Used for pre-treatment processes before spraying and electroplating, it can improve adhesion, remove carbides, and undergo polishing treatment. The available sand materials for this machine include: glass beads, diamond sand, plastic sand, silicon carbide, ceramic sand, walnut sand, and so on.
