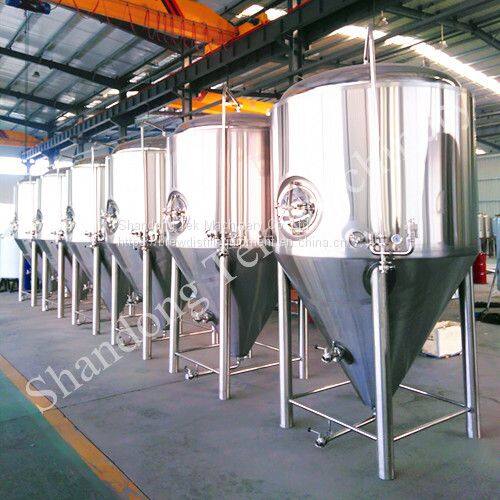

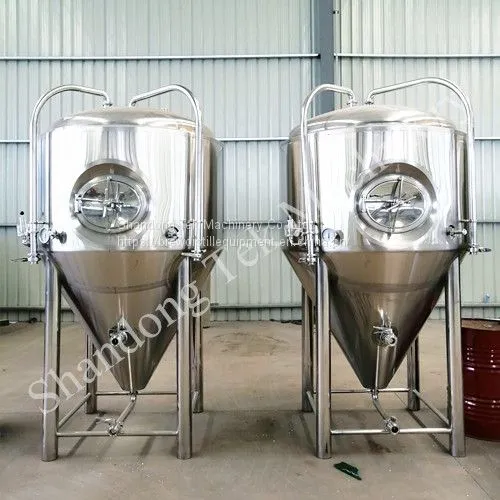

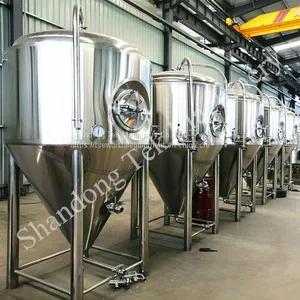

Stainless Steel Cooling Jacketed Insulated isobaric 2000L Beer Fermenter

Stainless Steel Cooling Jacketed Insulated isobaric 2000L Beer Fermenter

1. Shandong Tek Fermenting equipment is widely used for Homebrew, Bar, Brewpub, Restaurant, Microbrewery and Craft Beer Brewing company,

    Capacity from 100L 500L 1000l 1500l 2000l 3000l 4000l 6000l 9000l 10000l 15000L.

Type:  Single layer, Cooling jacketed,  Insulated double layer,  Open top fermenter

2. The fermentation tank is complete new, unused and high quality configurations.

3. The tank is completely made of SUS304, 316 or red copper as requirement.

4. 100% TIG welding with pure argon gas shield.

5. Interior Finish: 0.4~0.6μm/Mirror Polishing/pickling and passivating

6.The fermenter is cylinder conical tank type with cooling jackets

7. The tank dimension can be adjustable according to the room space.

Specifications of 2000L 20hl Beer Fermenting Vessel

Beer Fermenting Vessel Unitanks

Total capacity: with 25% headspace

Dome top and cone bottom, bottom cone, 60 degree

Interior Shell: SUS304, T 3.0mm;

Exterior Shell: SUS304, T 2.0mm 2B

Insulation: PU, T 80-100mm

100% TIG welding with pure argon gas shield

Interior Finish: to 0.4~0.6μm/ Mirror polishing/pickling and passivating

Cooling Jacket: On both cone and cylinder parts , can be separate cooling zones

Top mounted manhole/Side manhole

Relief/Vacuum valve

Dry hopping port

Thermometer

Beer Sample valve

Bung apparatus/Release Valve with pressure gauge

Test Pressure: 0.3Mpa, Working pressure: 0.15-0.2Mpa.

Rotating racking arm on cone with butterfly valve

Drainage with butterfly valve

CIP arm with 360° spraying ball

Thermowell with high accuracy temperature sensor: PT100

Tank complete with fittings, valves, and all parts.

Optional:

Level Tube

CO2 Carbonation Stone

Copper Shell

Pressurized Dry Hop feeder

Other requirements

Dimension design

Perlick style sample valve

Additional blow off pipework.

For Fermenters or Custom Made, Please contact us
