Hydraulic Elevator Dam Steel Material Spillway Gate

T010 Shield Type Steel Dam In Separate Unit  Independently Controlled

Spillway gates are constructed of heavy-duty materials, such as steel or concrete, and are designed to withstand the high pressures and forces generated by the flow of water. They can be customized to meet specific project requirements, including the size and shape of the spillway, the expected flow rates, and the available headwater and tailwater depths.


Spillway Gates Specifications

Gate material: RCC/Steel/Stainless steel

Gate type: Arc type/ plate type/shaped type(customized)

Gate height (H): 0.5m-6.0m

Width of single span:The standard width can be 6m, 7m or 8m; it also can be made to order.

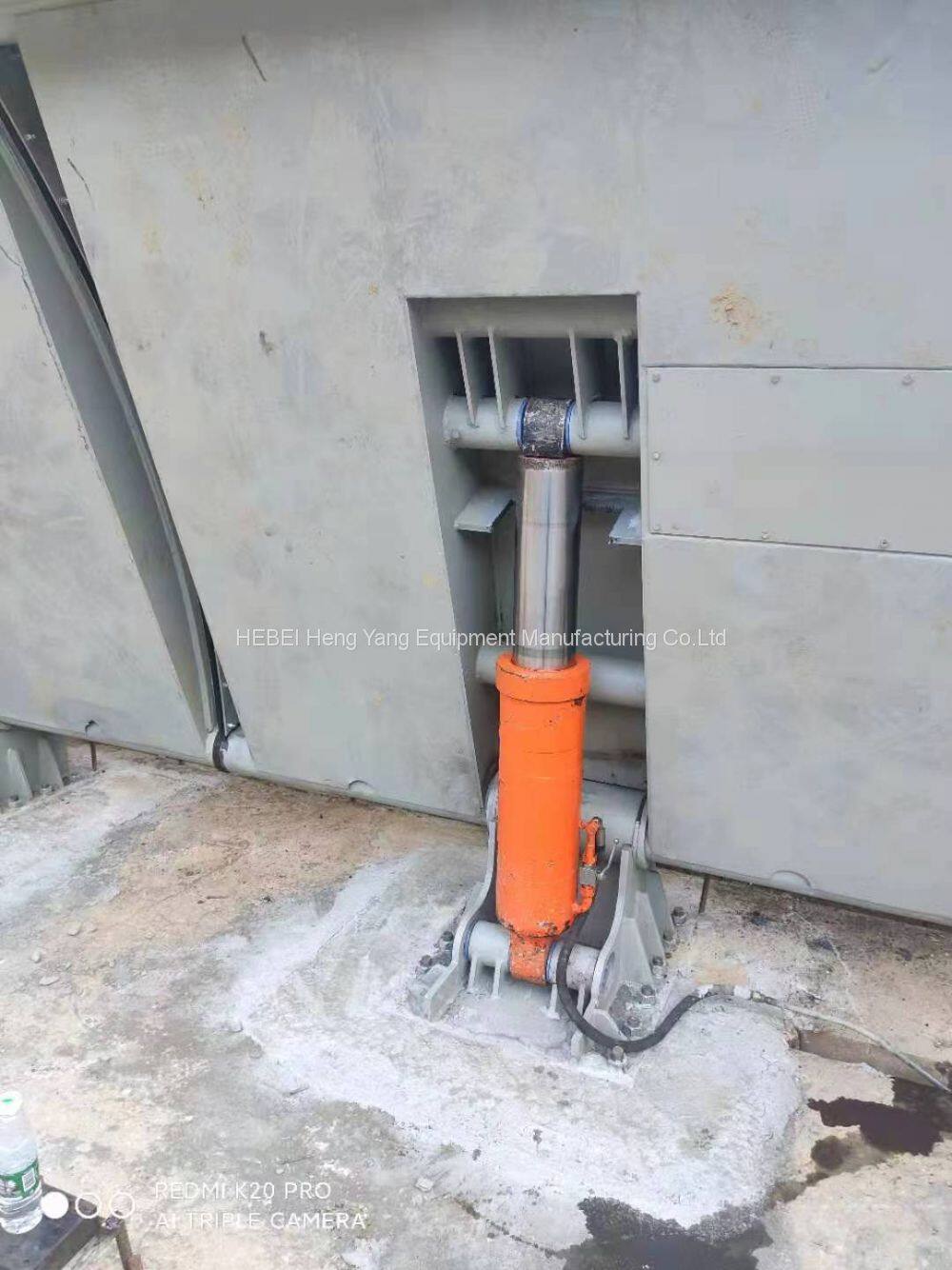

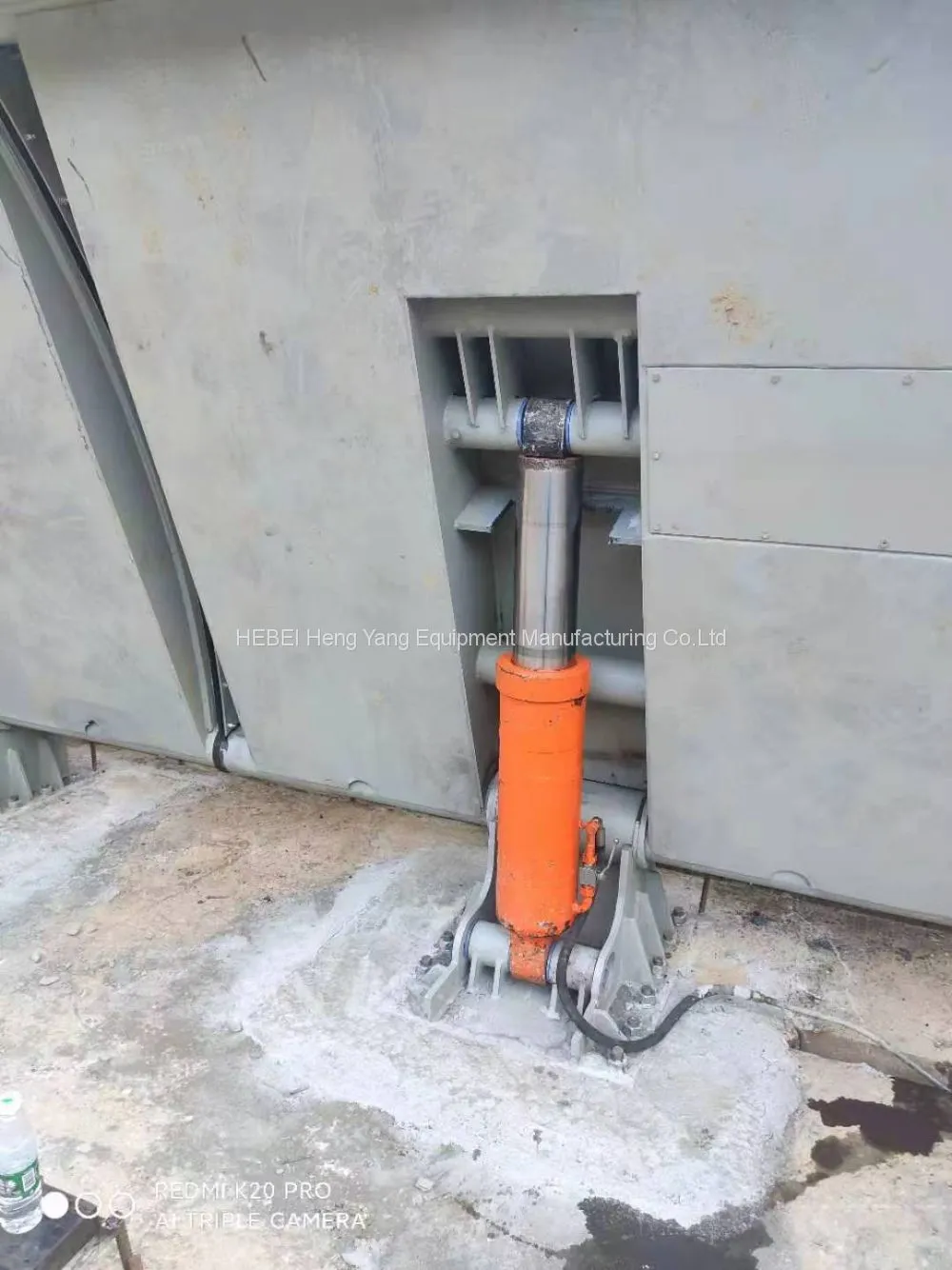

Hoisting structures: Plunger type cylinder/double-acting cylinder multi-stage cylinder.

Control system: Manual control cabinet, PLC control cabinet, computer local cabinet, computer remote control.

Synchronous dam elevating and lowering, automatic alarm function and dam lowering in case of exceeding water level. Design superiority.
