AWT100-LoRaHW IoT Smart LoRa Gateway RS485 24Vdc default 85~265Vac Vdc LoRa MODBUS-RTU CE-RED Certificate

Name: AWT100-LoRaHW IoT Smart LoRa Gateway RS485 24Vdc default 85~265Vac Vdc LoRa MODBUS-RTU CE-RED Certificate
Brand: Acrel
Availability: InStock

FOB Price

USD $52 - $74 / Piece

1 Piece(Min.Order)

Supply Ability 1 Kilogram / Kilograms per Month
Payment Terms:T/T L/C Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:

Acrel

Place of Origin:

China

Model Number:

AWT100-LoRaHW

Product Description

Solutions & Applications

Products Description

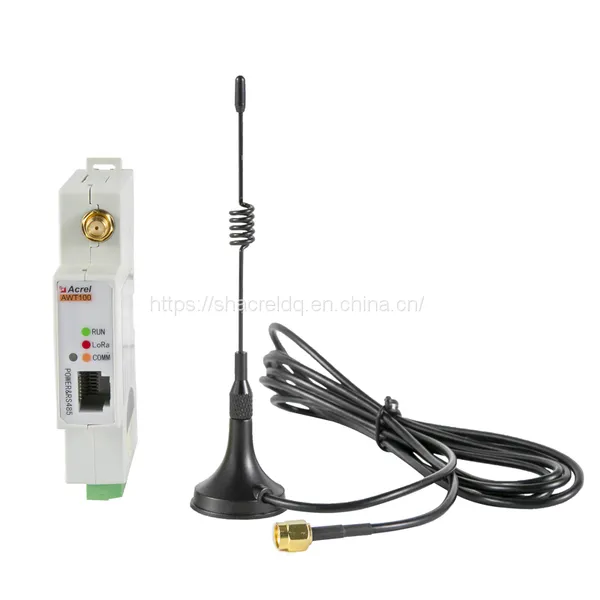

AWT100-LoRaHW IoT Smart LoRa Gateway

AWT100 wireless communication terminal is a new wireless data acquisition device launched by Acrel. The up link communication includes 2G, 4G, NB, LoRa, LoRaWAN and other communication modes. The down link interface provides a standard RS485 data interface,which can easily connect power meters and RTUs, PLC, industrial computers and other equipment, only need to complete the initial configuration, you can complete the data acquisition of MODBUS equipment; at the same time AWT100 series wireless communication terminal uses a powerful micro-processing chip, with built-in watchdog technology, reliable performance stable.

● LoRa Mode: Terminal Mode&Relay Mode ● Upstream (Terminal Mode): RS485 (MODBUS-RTU) ● Downstream (Terminal Mode): LoRa (MODBUS-RTU) ● Upstream (Relay Mode): LoRa (MODBUS-RTU) ● Downstream (Relay Mode): RS485 (MODBUS-RTU) ● Power Supply: 24Vdc (default); 85~265Vac/Vdc (via AWT100-POW Module) ● Standard&Certificate: CE-RED; IEC; EMC; LVD

Various Upstream Communication Methods

● 4G (Support Global Frequency Bands) ● WiFi ● LoRa ● LoRaWAN ● Ethernet ● NB-IoT ● ProfiBus-DP ● GPS

Collect Data from up to 30 Devices

● Downstream Communication: RS485 ● Downstream Protocol: MODBUS-RTU ● Data acquisition of 5 register address fields each device

Easy Installation

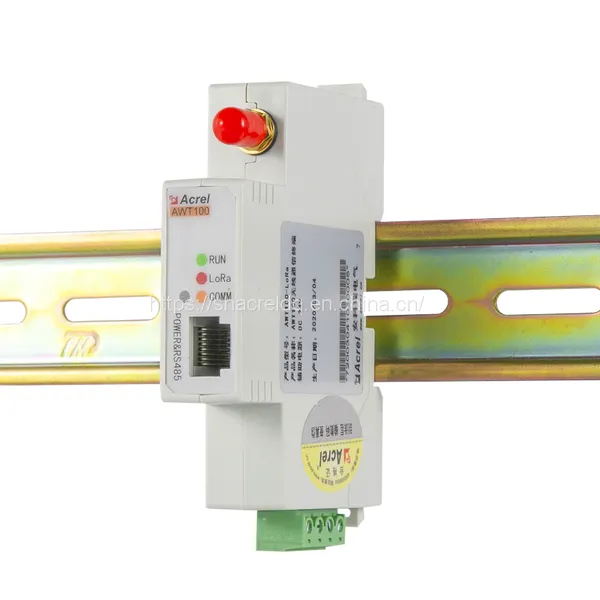

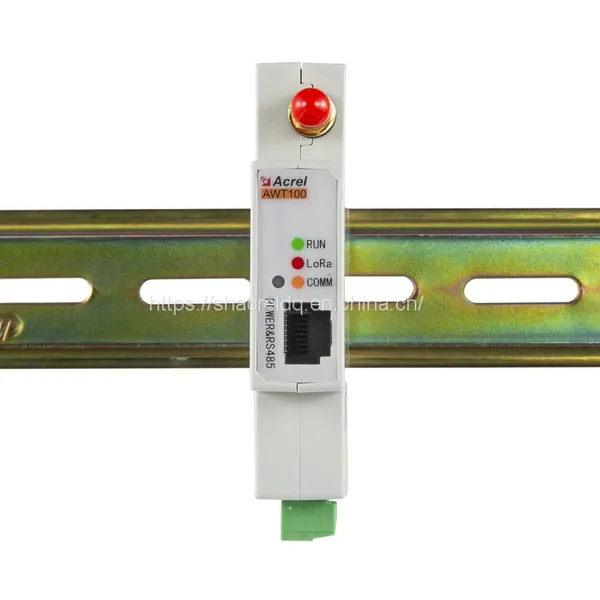

● RJ45 Interface ● 35mm standard DIN Rail

Three Optional Power Supply

● DC 12V
● DC 24V
● AC/DC 220V→DC 5V (paired with AWT100-POW)
● 3 types of Power Supply can’t co-exist

Function & Parameter

Dimension & Installation

Wiring Instruction

PIN/Terminal Overview of AWT100-4GHW Gateway and AWT100-POW Power Module

Wiring Diagram of AWT100-4GHW (24Vdc Power Supply via default Configuration)

Wiring Diagram of AWT100-4GHW (85~265Vac Power Supply via AWT100-POW Power Moduel)
