Fine Powder Grinding Equipment Gypsum Dolomite Talc Limestone Ball Mill Crusher Price

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	VANGUARD	Place of Origin	China
Type	Ball Mill	Certification	ISO9001-2008 international quality management system certification and European CE certification
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	12 minths
Condition	New	Motor Type	AC Motor
Capacity(t/h)	0.5-40T/H

Product Description

Ball mill is a key equipment for further grinding after the primary crushing. It is widely used in cement, silicate products, new building materials, wear-resistant materials, fertilizers, ferrous and non-ferrous metals, glass ceramics and other industries.According to the processing technology, it is divided into two grinding ways-the dry and the wet. Besides,wet ball mill can be divided into tabular type and flowing type.

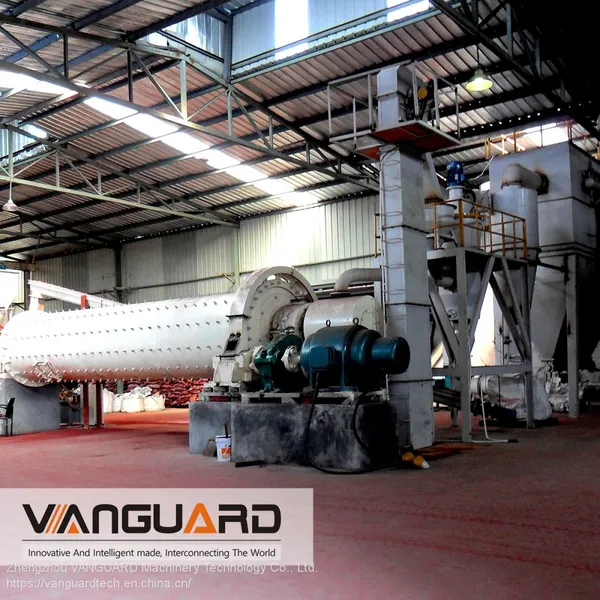

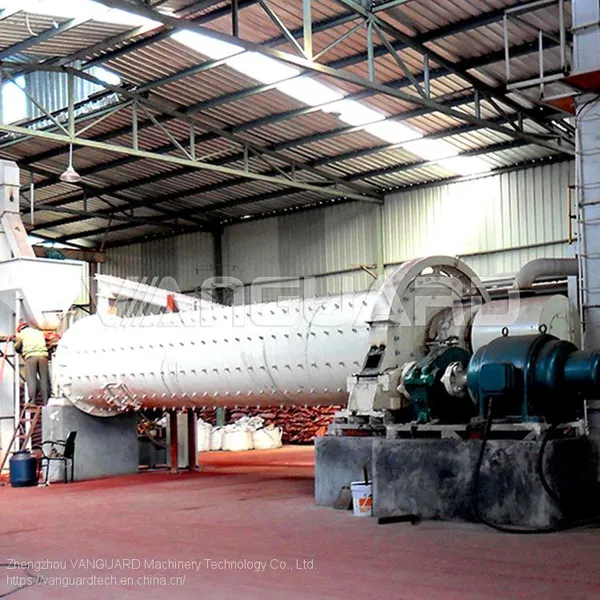

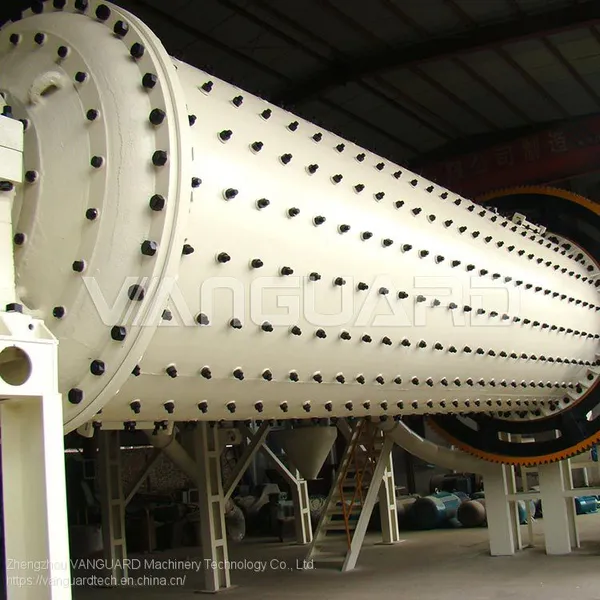

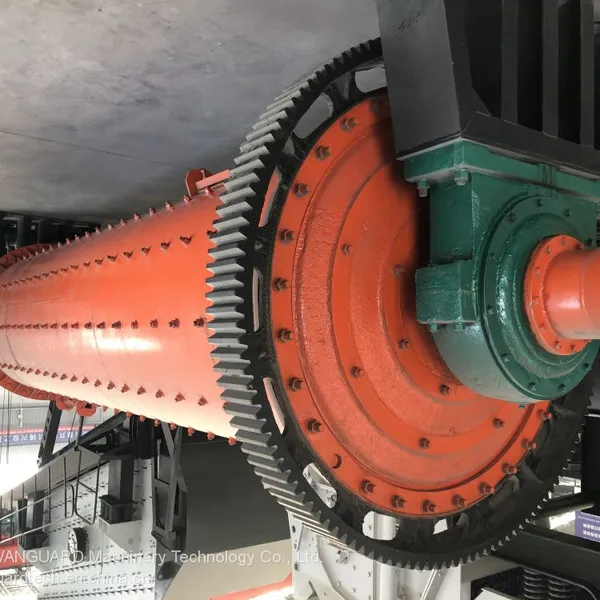

PRODUCT EXHIBITION

Performance Characteristics:
1. High beneficiation efficiency, high fineness of ore powder.
2. Large discharge port, wide-range usage.
3. Simple structure, easy maintenance.
4. High processing capacity, obvious continuous operation advantages.

WORKING PRINCIPLE

The material evenly enters the first chamber of the grinder from the quill shaft in feeding device. The chamber is equipped with a ladder liner or ripple liner and steel balls in different specifications. Centrifugal force caused by rotation of barrel brings the steel balls to a certain height and then impact and grind material. Finally the ground materials are discharged by the discharging grate plate.

PRODUCT PARAMETERS

Model	Rotary Speed (r/min)	Ball Weight (t)	Feeding Size (mm)	Output Size （mm）	Capacity(t/h)	Power(kw)	Weight(t)
Φ900×3000	35.6	2.4	≤25	0.075~0.89	0.8-2.5	22	5.3
Φ1200×3000	32.4	4.5	≤25	0.074~0.4	1.6-3	37	12.1
Φ1200×4500	32.4	7	≤25	0.074~0.4	1.83-3.9	55	13.1
Φ1500×3000	29.7	7.5	≤25	0.074~0.4	2.8-4	75	14.8
Φ1500×4500	29.7	11	≤25	0.074~0.4	4.8-7	110	19.9
Φ1500×5700	29.7	14	≤25	0.074~0.4	5-8	130	23.4
Φ1500×7000	29.7	17	≤25	0.074~0.4	6-8	155	27.5
Φ1830×3000	25.4	11	≤25	0.074~0.4	4.5-10.5	130	26.6
Φ1830×4500	25.4	17	≤25	0.074~0.4	6.8-11.5	155	30.4
Φ1830×6400	25.4	24	≤25	0.074~0.4	7-12	210	32.3
Φ1830×7000	25.4	26	≤25	0.074~0.4	7.8-13.8	245	34.2
Φ2100×3000	24.9	15	≤25	0.074~0.4	5.8-14	210	32.3
Φ2100×4500	24.9	23	≤25	0.074~0.4	9.5-18	245	40
Φ2400×3000	20.8	20	≤25	0.074~0.4	7.8-18	245	51.3
Φ2400×4500	20.8	30	≤25	0.074~0.4	13.7-28	380	63.7
Φ2700×4000	19.5	34	≤25	0.074~0.4	15-28	475	89
Φ2700×4500	19.5	39	≤25	0.074~0.4	16.5-36	475	97

Processed Materials:
Limestone, Granite, Basalt, River Stones, Quartz, Copper Ore, Iron Ore, Marble, etc.

CUSTOMER CASES

Packaging and Shipping

About VANGUARD

Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global mining industry.

Matching of production and support system allows customers to get the best service at the lowest cost.

Qualification

Our products have passed ISO9001-2008 international quality management system certification and European CE certification, and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fields.

Our Services

FAQ

Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.

Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.

Q3：If I need the complete grinding plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many
mining projects in China & Overseas.

Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
