instant water heater thick film water heater 220V 2200W
- 10000 Piece / Pieces per Month
- Qingdao
- T/T Cash Escrow
- 15 days
-
thick film heating tube instant water heater 220V 2200W
-
Pressure bearing 0.8Mpa thick film heater instant water heating element 3000W 110V
-
Pressure bearing 0.8Mpa instant water heater thick film heating element 2200W 220V
-
Dishwasher thick film water heaters 220V 2080W hot pump heating tube
-
instant water heating plate flat heating element 220V 2000W
Product Details
| Brand Name: | JIEDA | Place of Origin: | China | Model Number: | 20BJ |
| Certification: | CE, ROHS, UL | Capacity: | 1000 | Voltage (V): | 220 |
| Power (W): | 2200 | Installation: | Freestanding | Housing Material: | Plastic |
| Storage / Tankless: | Instant / Tankless |
Product Description

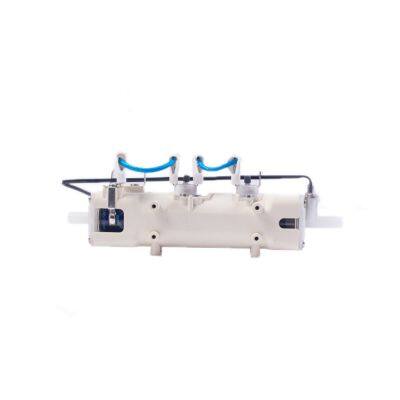

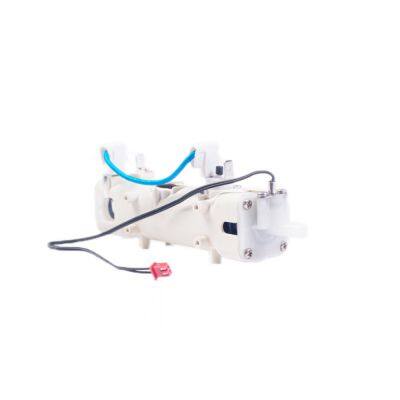

Instant water heater thick film electric water heater 220V 2200W for water dispenser and purifier
1. Electric Circuit printed on stainless steel tube surface, to heating the water flow inside,5 isolation layers sintered on the surface.
2. Large heat transfer area on tube surface; Ramp up and Cool down quickly; High utilization rate up to 93% or above.
3. Fast temperature response, power density is as high as 60W/cm² and heating circuit's temperature raising rate exceeds 80℃/s.
4. Simple structure, compact profile, various applications.
Outside Dimension | 167.6mm*48.4mm*37.5mm | Heat Intensity | >60W/cm² |
Ramp-Up Rate | 80℃/s | Thermal Efficiency | >96% |
Heating Power | 2,200W | Service Life | >10,000 hours |
Rated Voltage | 220v | Certificate | CQC, RoHS |
Electric Intensity | 1,500V/5mA/60s | Power Deviation | -10% - +5% |
Leakage Current | ≤0.25mA | Insulation Resistance | ≥200MΩ |
Thermistor Type | PTC | Snap Action Thermostat | 16A, installed close to the heating tube's heating circuit |
Shield | PA66+ glass fibre, temperature resistance≥250℃ | Boiling Water Tank | Food Grade PP; Temperature resistance≥150℃ |
Water Inlet & Outlet | Φ7.5mm | Heating Tube Dimention | Φ20*120mm |
Tube Materials | SUS430 / SS444 | Customized Service | Available |
