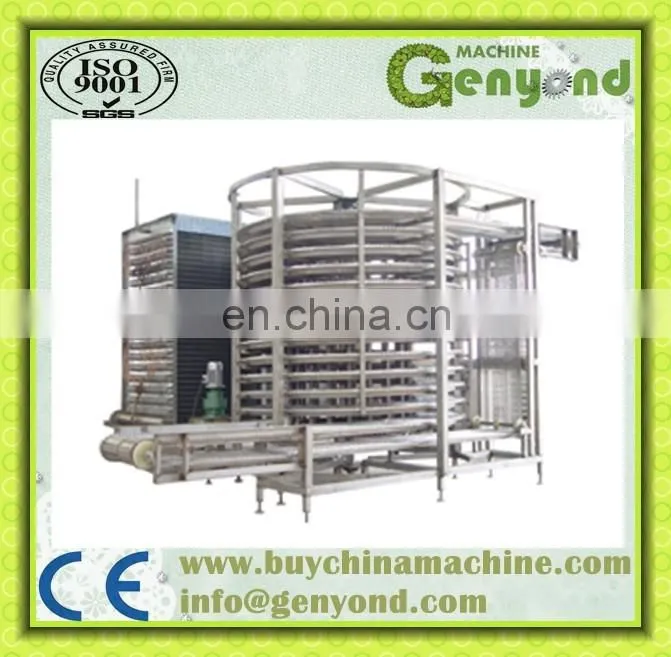

Frozen iqf freezer fish fillet quick freezing processing plant spiral freezer

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

Stainless Steel Refregeration Spiral Freezer for Pizza

Brief Introduction:

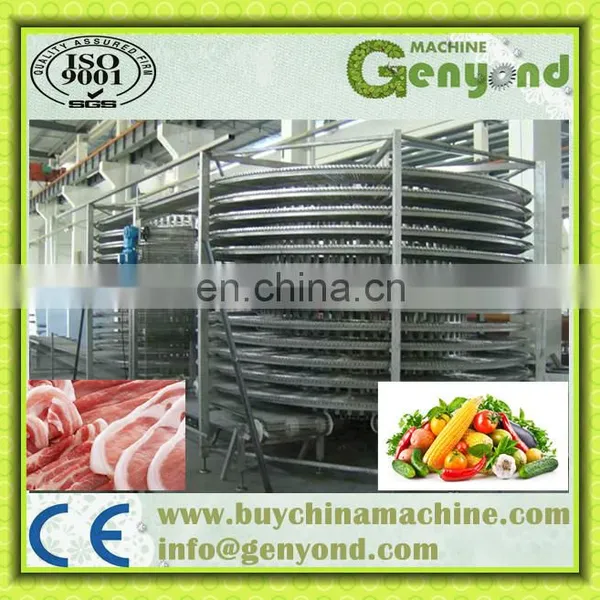

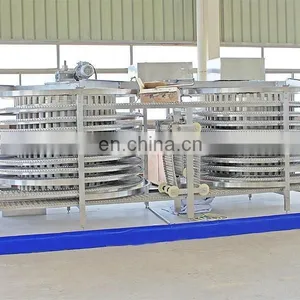

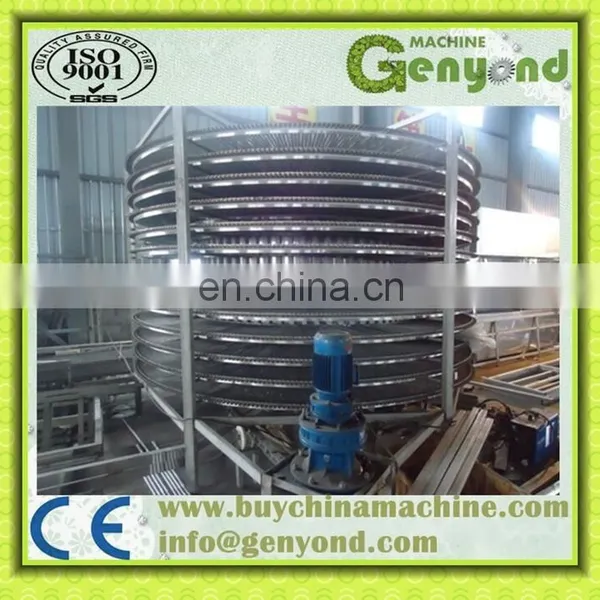

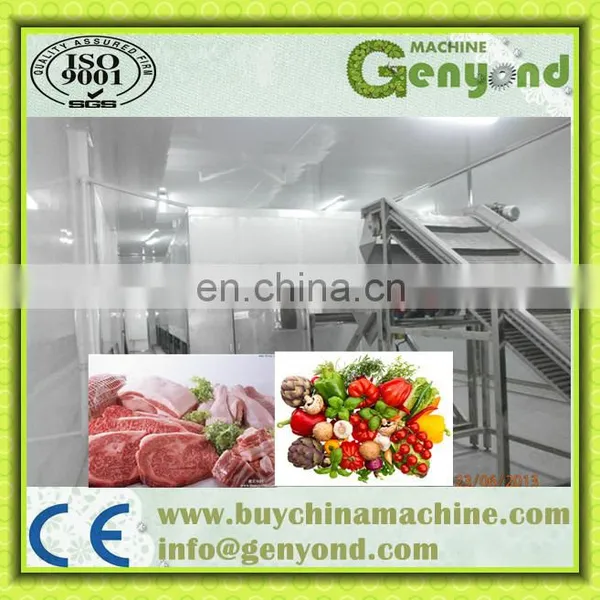

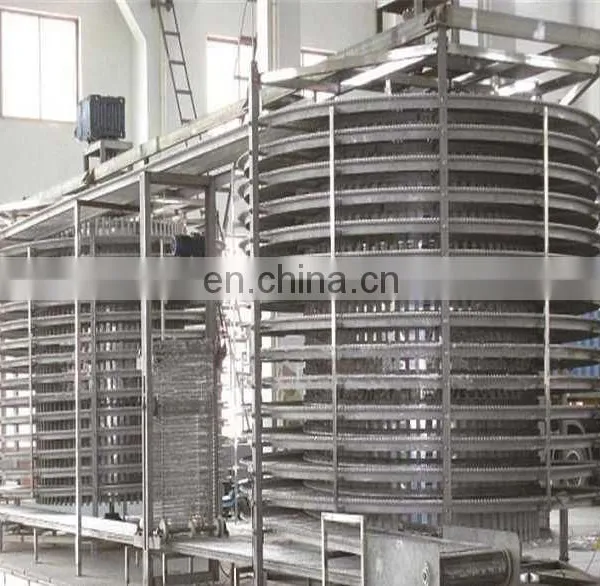

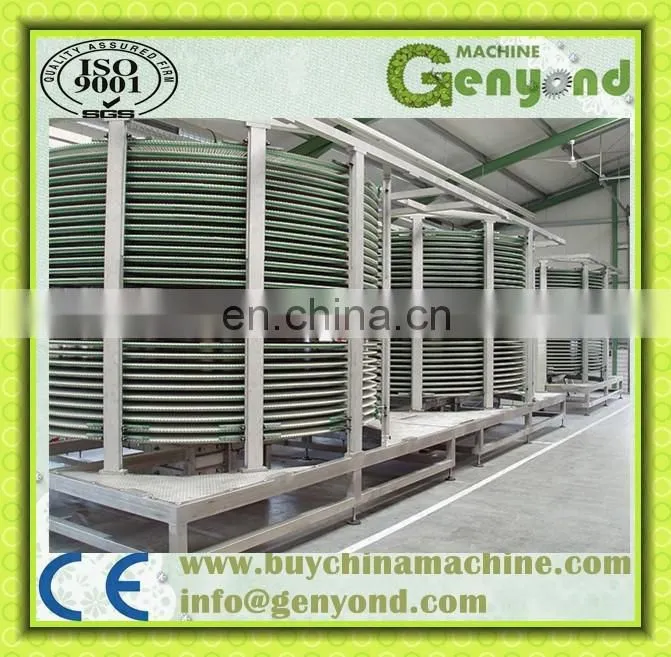

This spiral quick freezing machine is designed and manufactured in accordance with HACCP’s hygienic requirements for food processing equipments. It is suitable for fast freezing granular, diced, sliced food, including scallop, squid, de-shelled shrimp, fillet, etc. The food contact part is of solid stainless steel belt, which allows fast and efficient freezing.

Main Technical Parameter:

Item Model	Freezing capacity KG/H	Freezing time min	Refrigeration consumption kw	Installed power kw	Width of Belt m	Overall dimension L×W×H m	Circulating temperature in storehouse °C
Single Layer Type
GY-100	100	3-60	35	10	1	7×1.5×2.1	-36±2
GY-500	300	3-60	70	17	1.3	10.4×3.0×2.5	-36±2
GY-500	500	3-60	130	18	1.3	12.4×3.6×2.5	-36±2
GY-1000	1000	3-60	186	22	1.8	14.9×3.6×2.5	-36±2
GY-1500	1500	6-80	256	25	2.5	16.9×3.6×2.5	-36±2
Double Layer Type
GY-600	600	3-60	91	13	1.8	11.2×4.4×2.3	-36±2
GY-1200	1200	3-60	175	20.6	2.2	16.9×3.6×2.5	-36±2
GY-1500	1500	3-60	225	28.4	2.2	16.9×3.6×2.5	-36±2
GY-2000	2000	6-80	296	39.6	2.2	16.9×3.6×2.5	-36±2
GY-3000	3000	6-80	440	40.4	3	19.9×3.6×2.5	-36±2

Other Details:

1.Package: wooden cases for sea transportation

2.Delivery time: 30 working days after receiving the deposit

3.Installation : engineers available for installation and training overseas

4.Guarantee : 12 months after it is sent out

Plz feel free to contact me for any further information.

Our Services

Jessica Chen

Tel : +86 21 34796126

Mob & Whatsapp & Wechat: +86 18217773391

Skype:genyondmachine5

Add : No. 1328, Hengnan Road, Pujiang Town, Minhang District,Shanghai

Web:

Alibaba: http://genyond.en.china.cn

Company Profile

Shanghai Genyond Technology Co., Ltd.

Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.

Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.

We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
