Home > Products > meat/fish/egg processing line > full automatic paper egg tray machine

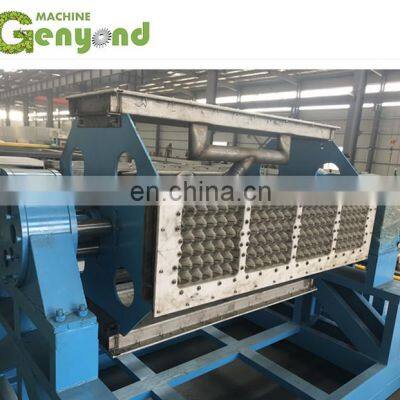

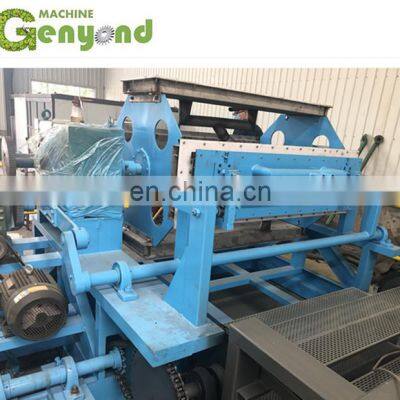

full automatic paper egg tray machine

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

This automatic egg tray machine is suitable for every kind of scale production plants. It can produce egg tray, egg boxes and other shapes of tray. Its output is 1000 - 6000pcs/h for 30 cavity trays, so it can allow workers to work three shifts per day. The product can be recycled, is a new green packaging, which is not only the development of environment-friendly enterprise, also long get rich choice.

Egg tray machine uses waste paper as raw materials to produce different kinds of products according to your requirements, such as egg trays, egg cartons, egg boxes, apple trays, fruit trays, industrial trays, seeding trays etc.

Our used paper Egg Tray Machine price product line has four parts paper Pulping system,forming system,drying line and automatic counting.

1. pulping system :
Put the waster paper in to the hydrapulper, the paper and water will mix in hydrapulper ,then go to the refiner machine, refiner machine make the pulp more small egg tray moulding machine/egg tray production line
and uniform, then the pulp pump absorb the pulp to the pulp pool. after the second mix in the pulp pool, the pulp will go to the form machine pulp tank.

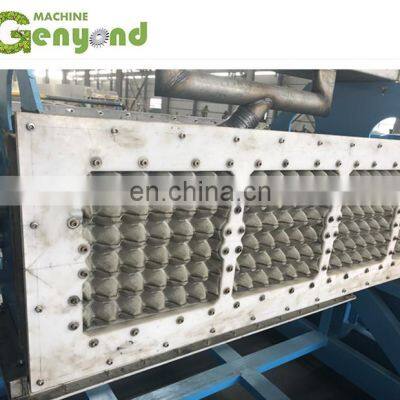

2. forming system
The vacuum pump will give the vacuum to make the forming mould absorb the pulp from the pulp tank.there is a PLC control the pulp absorb time,the finished egg tray moulding machine/egg tray production line
product will be shaped on the forming mould, then the transfer mould transfer the products to the drying line, the air compressor will give the air to blow the products, then egg tray moulding machine/egg tray production line
the products will be fall from the mould. the products delivery to the drying line automatic. the water will be go back to the
water pool. will be recycle

.3. drying system (can use gas,dissel,coal on the drying line)
There are burners and blowers on the drying line. burner give the hot power and the blower increase it, there will be hot air
mouth in the drying line also blow the hot air. the drying line is protect by the insulation board. the degree can reach 200 degree.

4. automatic counting:
After drying line, the egg trays go to the automatic counting and stacking system, you can preset the quantity of one pile, such as 100pcs or 200pcs.egg tray moulding machine/egg tray production line when the quantity ok, will be alarm. the products stacked at the same time. you can packaged them directly.

Machine Model	GY-3*1	GY-4*1	GY-3*4	GY-4*4	GY-4*8	GY-5*8	GY-5*12
Capacity (pcs/h)	1000	1500	2000	2500	3000	5000	6000
Total Power (KW)	32	45	58	78	80	85	90
Paper Consumption (kg/h)	120	160	200	280	320	400	480
Water Consumption (kg/h)	300	380	450	560	650	750	900
Workshop Area (sq.m.)	45	45	80	80	100	100	120
