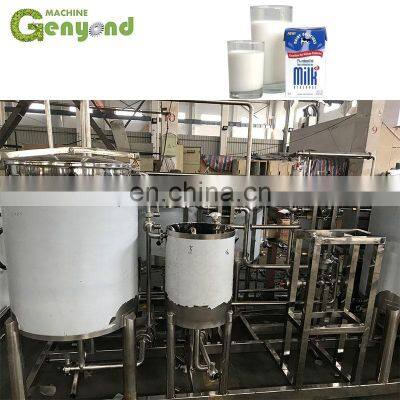

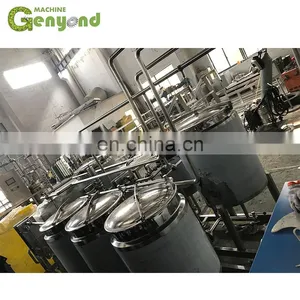

complete camel milk machines and equipment plant

Shanghai Genyond Technology is the most professional manufacturer and distributor for Dairy machine and we are the fore goer of dairy machine manufacturer in domestic. We are mainly engaged in the development production and sales of dairy milk machine and related products. Our products have occupied more than 80% share of the domestic market. And we have been exported to the United States, Australia, France, Peru, Yemen, Malaysia, Singapore, Canada, New Zealand, Indonesia, Myanmar, the Philippines, Taiwan and other countries and regions,

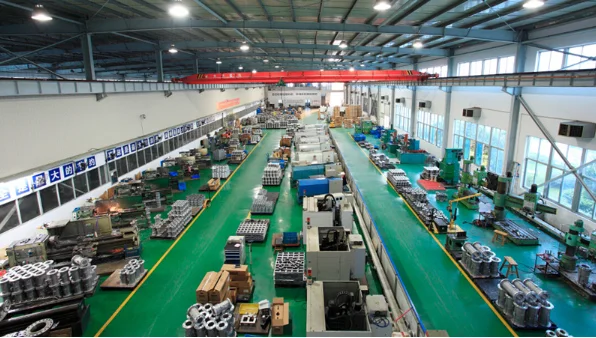

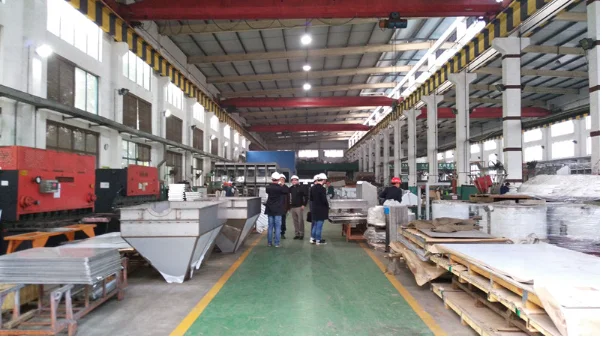

We have nearly 20,000 square meters, registered capital of 20 million, and had total assets of 130 million, Company had more than 400 employees. The technical staff composed of 40 master's or doctor’s degrees,138 bachelor's degrees. Our company passed the ISO9001 QUALITY, and a number of products certificate such as China quality mark certification and CE certification.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Running in a high automatization and intellectualization,no pollution

Model GYM500 Fully Automatic Cattle Milk Dairy Processing Plant

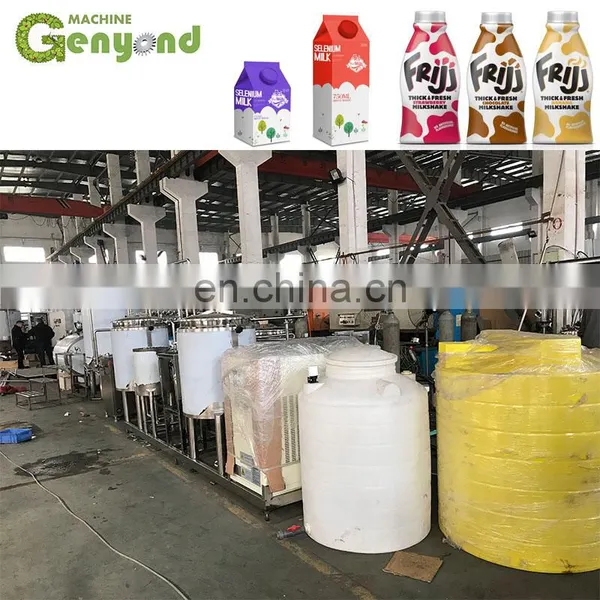

Dairy Cattle Processing Plant mainly produces a variety of flavors of sterilized milk, pasteurized milk, yogurt and reconstituted milk, peanut milk and so on, a full set of fresh milk processing line mainly include: breast milk collection system, mixing system, homogeneous system and sterilization system, filling etc.

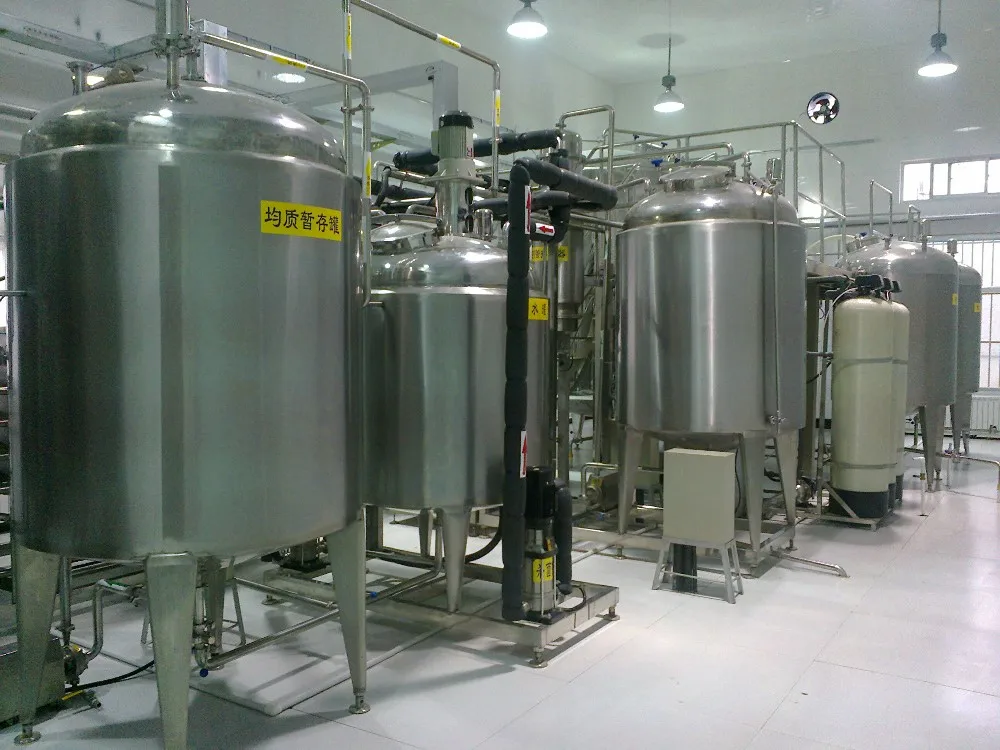

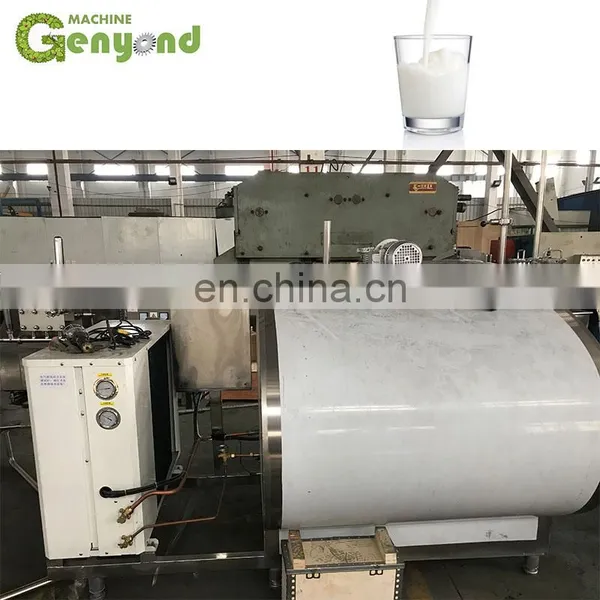

Full set of fresh milk machine and equipment: Storage tanks, homogenizer, Twist spiral pasteurizer and cooler by water, plate heat exchanger, automatic filling machine.

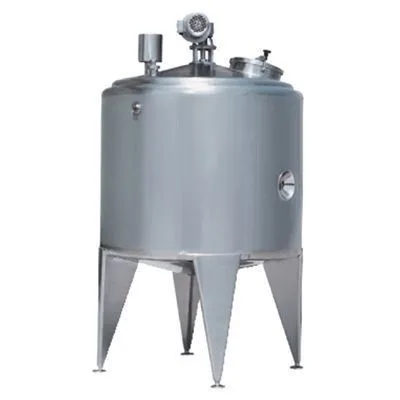

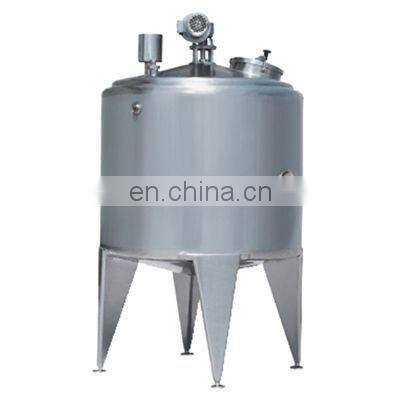

Milk mixing tank

1, volume: 100-5000L
2, 304 # stainless steel material;
3,135 ° glass level gauge, 180 ° sampling valve; stainless steel protective tube;
4, 300 mesh liner polished, appearance with 2B matt ;
5, equipped with self-feeding health pumps.
7, cleaning: top of the device is equipped with a 360-degree rotating CIP cleaning head;
8, digital thermometers, temperature display range of 0 ℃ -100 ℃;
9, the device three layers vertical structure, the lower part equipped with standard quick-connect valve.
10, stir cycle milk pump : 2.75KW
11, the device uses three layers structure of heat insulation, through connect to steam for heating and climate control.
12, heating equipment: external steam heating.

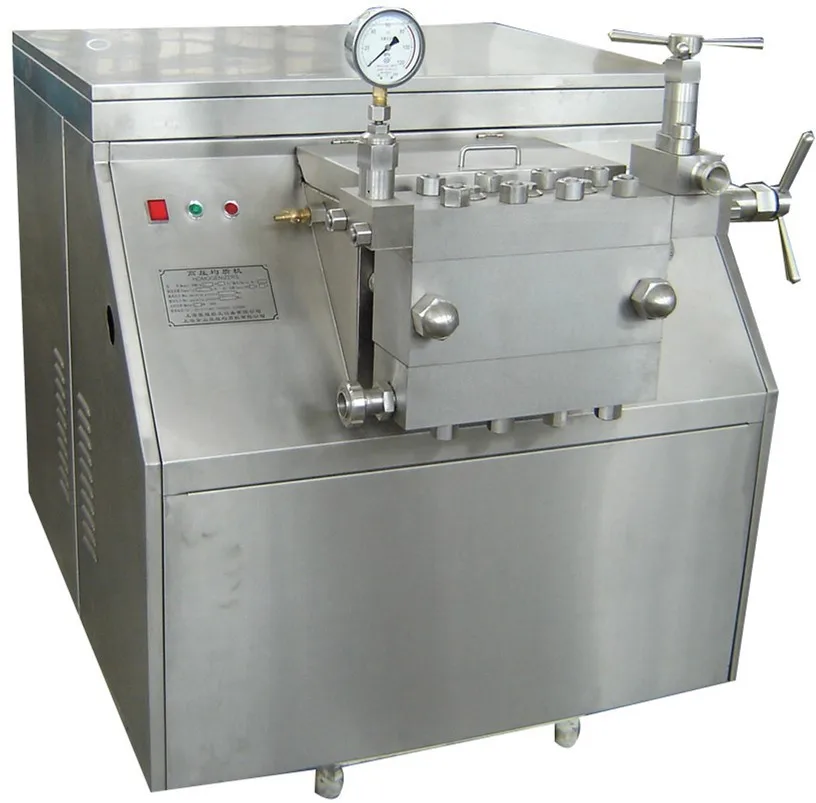

HOMOGENIZER

1, energy efficient, constant flow;
2, crush size Ф0.1-2μm, average Ф ≤ 1μm;
3, the pressure is stable, pressure gauge swing P <2Mpa;
4, sealing materials, allowable working temperature ≤ 150 ℃;
5, the contact material parts are resistant to strong acid, such as HNO3, NaOH ≤ 5%, CIPdisinfection time limitation;
6, this series of machine lubricationreliable working 750 hours that is required to first oil change, after each year (in January three shifts meter) oil change once;

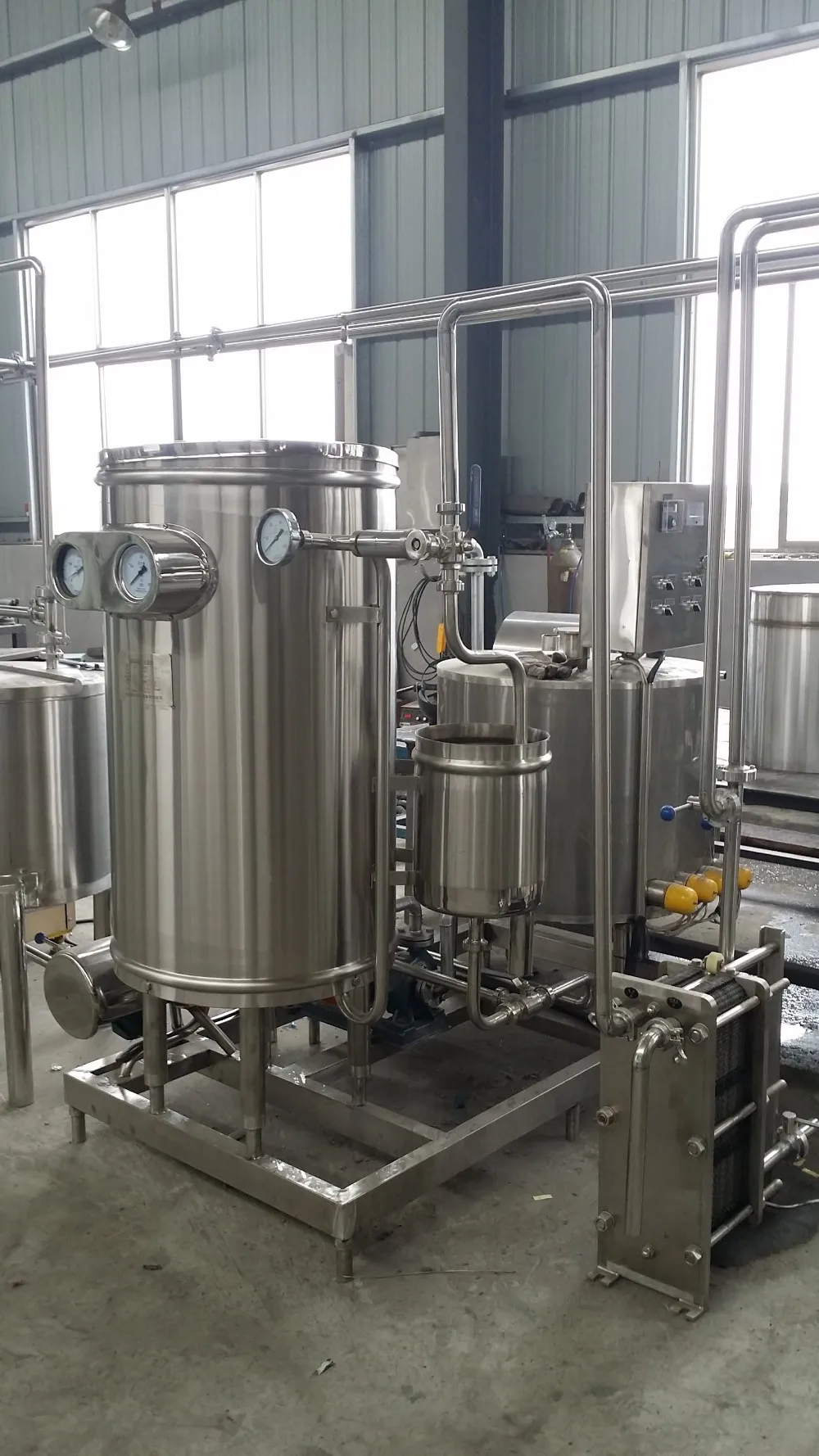

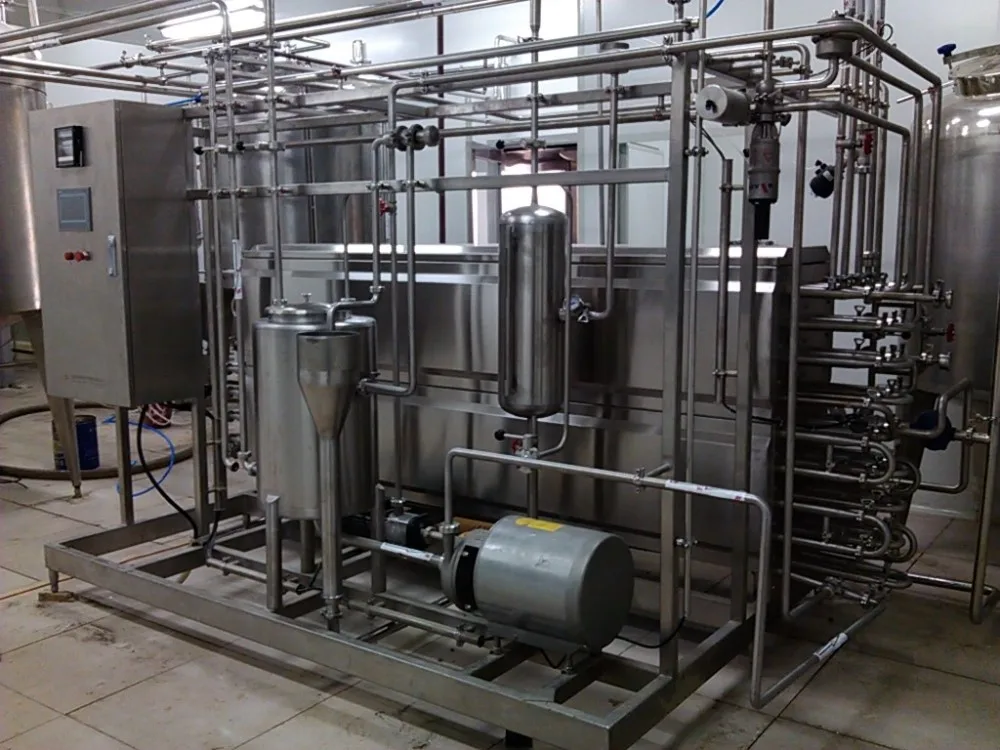

Tubular pasteurizer

1, covers an area of 6 M2, connected to the steam, steam pressure 3 kg
2, cooling water consumption 2000L / H (can connect chiller cooling)
3,2000 L / H (300-2000L adjustable flow) can be customized
4, sterilization temperature up to 85 ℃, adjustable, PID temperature control technology, accurate temperature control, sterilization temperature accuracy ± 1 ℃, outlet temperature is adjustable. Sterilization time can be adjusted and customized according to customer
5, the device maximum pressure 8bar
6, SIP functionality; online CIP function
7, design power 6.5KW, 3-phase 380V
8, the overall use of high-quality stainless steel SUS304
9, 1 set of tubular preheater, sterilizers 1 set, 1 set of cooler
10, the inner tube size ¢ 16; pipe material: SUS304
11, the particle size requirements: 0.8mm Maximum
12, the size of 2550 (L) * 1550 (W) * 1910 (H) mm

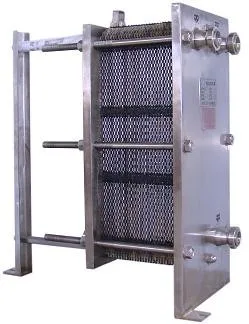

PLATE HEAT EXCHANGER

Plate heat exchanger will heat with high efficiency, small size, light weight, compact structure, flexible operation, Assembly and Disassembly cleaning convenience, long service life, easy maintenance and so on. A wide range of applications, pressure loss in the same cases, the transfer coefficient higher than those in-tube heat exchanger 3-5 times the area of the third tubular heat exchanger, heat recovery rate of up to 90%. Village selection of high quality imported stainless steel plate material.
