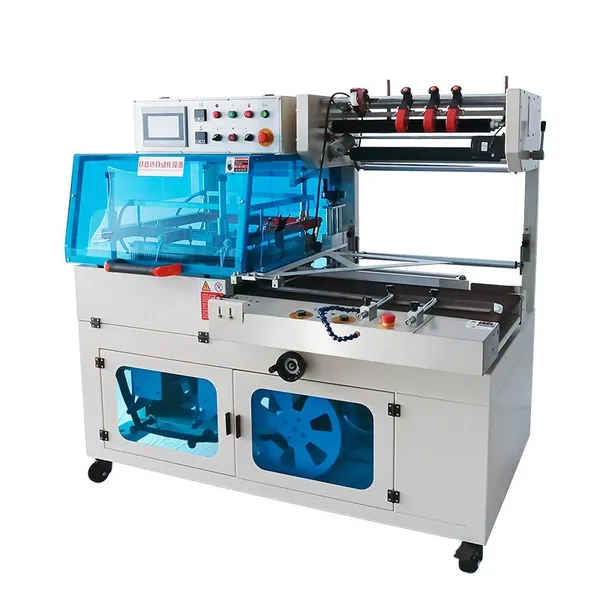

Toybag sealing and cutting machine Seal and cut the packaging machine

《equipment introduction 》

 Cutting machine is widely used in mass production packaging flow operation, high work efficiency, automatic film punching, automatic membrane sealing, automatic roll waste, only manually adjust the membrane guide system and manual adjustment of feeding delivery platform, suitable for different width and height of products.

《features 》

 The seal will not crack, and the bag will not break.

 Can be used with automatic packaging line, is an important component of product sealing heat shrinkage packaging.

 With positioning universal wheel, can be fixed in one place without moving, but also can slide according to the need.

《equipment parameters 》

〔〔L-type mantle sealing machine——HS-FQ450〕〕

Power supply: 220V, 50 / 60Hz

Use gas source: 5-7 kg / cubic meter 2 cm 3

Power: 1.35KW

Packaging speed: 15-30bags / min

Package size L + H: <500mm (H <150mm)

Package size W + H: <400mm (H <150mm)

Sealing knife size: L550 * W450mm

Machine size: L1650 * W800 * H1450mm

Overall weight: 300kg

Applicable shrinkage film: POF, PE

〔〔L-type mantle sealing machine——HS-FQ550〕〕

Power supply: 220V, 50 / 60Hz

Power: 1.5KW

Use gas source: 5-7 kg / cubic meter 2 cm 3

Packaging speed: 15-30bags / min

Package size L + H: <600mm (H <150mm)

Package size W + H: <500mm (H <150mm)

Sealing knife size: L650 * W550mm

Machine size: L1750 * W900 * H1450mm

Overall weight: 350kg

Applicable shrinkage film: POF, PE

〔〔L-type mantle sealing machine——HS-FQ550-A〕〕

Power supply: 220V, 50 / 60Hz

Power: 1.5KW

Use gas source: 5-7 kg / cubic meter 2 cm 3

Packaging speed: 15-30bags / min

Package size L + H: <600mm (H <150mm)

Package size W + H: <500mm (H <150mm)

Sealing knife size: L650 * W550mm

Machine size: L1750 * W900 * H1450mm

Overall weight: 350kg

Applicable shrinkage film: POF, PE

〔〔Automatic edge sealing sealing machine——HS-FQ550B〕〕

Power supply: 220V, 50 / 60Hz

Power: 1.5KW

Use gas source: 5-7 kg / cubic meter 2 cm 3

Packaging speed: 15-30bags / min

Packaging size (L + H): No

Packaging size (W + H): <500mm

Seal knife size (L * W): unlimited * 550mm

Machine size: L1750 * W900 * H1450mm

Overall weight: 350kg

Applicable shrinkage film: POF, PE

〔〔Vertical sealing and cutting machine——HS-FQ5545C〕〕

Power supply: 220V, 50 / 60Hz

Power: about 3KW

Packaging speed: 15-30bags / min

Sealing knife size: L550 * W450mm

Opening size: 180mm

Air pressure: 0.5 MPA

Delivery load: Max.15kg

Applicable shrinkage applicable: PE

Machine size: L1630 * W900 * H1470mm

Overall weight: 300kg

Note: As the machine is constantly updated, the specific parameters are subject to the physical or contract.
