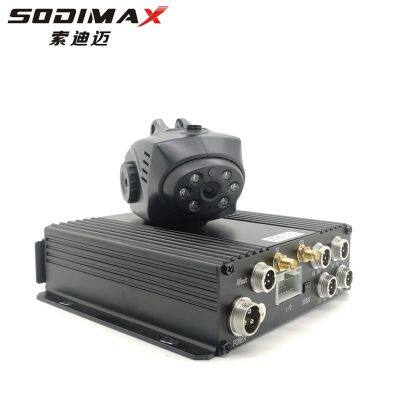

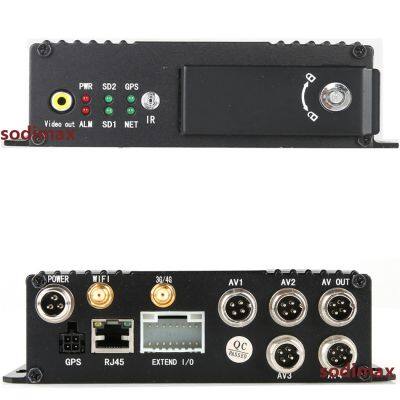

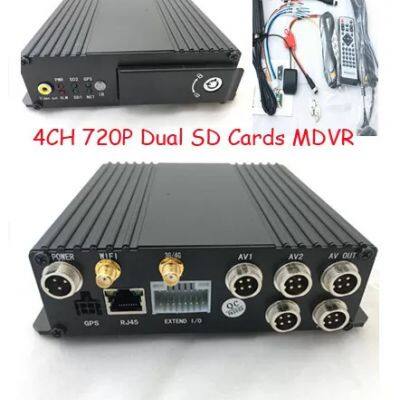

SD Card 1080P HD Car Video Recorder H.264 Car Video Surveillance Solution

Name: SD Card 1080P HD Car Video Recorder H.264 Car Video Surveillance Solution
Brand: Sodimax
Availability: InStock

FOB Price

USD $4 - $5 / Piece

1 Piece(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Shenzhen Port
Payment Terms:T/T PayPal Cash
Delivery Detail:3 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:

Sodimax

Place of Origin:

China

Model Number:

SD618-4G-GPS

Product Description

Mobile CCTV DVR Description&Specification

A. Standard H.264 compression format ensures high rate, less storage space and clear.
B. SD card support, faster recording speed and easy installation.
C. Advanced PCB layout&design and reliable SMT processing
D. Wide voltage range of 8 - 36 V
E. 5V/0.5A for Input, 12V/2A for output, compatible and easy installation
F. 4 Alarm in, 1 Alarm out. 4 Video in, 1 Video out. 4 Audio in, 1 Audio out. RS485/232 Support.
G. Professional management platform and PLAY software
H. Support Brake alarm, Reverse alarm, Motion detect, Door opening alarm, CMS platform, Customized Player.

Support Geo fence, Location, Speed alarm, G-sensor etc.

Support oil sensor, Fuel cut, Power cut, SOS alarm, Alarm button, Online tracking, Live talkback, Live surveillance, Live simultaneous storage, Dispatching system, Camera rotation, PTZ cloud control, SMS function, CMS platform, iOS&Android client(for Apple and Android phone), Remote control and etc.

Mobile CCTV DVR Specifications

Item		Description
OS		Linux
Graphics Operation Interface		System parameters can be set through external display and remote controller
Security Management		2-level management for user password, administrator password, supporting encrypted transmission
Video and Preview	Video Input, Output	8-channel video input, 1channel video output; 1.0Vp-p, 75Ω
	OSD	Character superposition function, information superposition of time and date, device ID and GPS, etc.
	Video Compression Format	Compression coding. Applying Hisilicon hi-performance processor.
	Dual-Stream	Supported
	Preview Function	Preview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images
	Frame Rate	PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel
	Resolution	CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most
	Quality	Grade 1 to grade 5 for selection (descending)
	Bit Rate	CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection
		HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection
		D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection
Audio	Audio Input, Output	8-channel input, 1-channel output
	Compression Format	G.726 coding
Recording	Storage Medium	Supporting dual SD cards, which supports up to 256GB
	File Format/ System	ASF/FAT32
	Video Strategies	Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
	Video Search	Searching by time, type, storage device and other conditions
	Video Playback	Supporting playback on local device, supporting synchronous playback of up to 8 channels and analysis on vehicle information in the files
		Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time
Alarm	Alarm Input/ Output	6-channel on/off signal alarm input, 1-channel on/off signal alarm output
	Alarm Recording	Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min
	Storage Space Alarm	Supporting settings for alarm of storage space
	Function Alarm	GPS overspeed alarm, acceleration alarm, motion detection alarm
Communication Ports		RS232,
Wireless Transmission (Optional)		Embedded 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system for selection;
Wireless Transmission (Optional)		Compatible with GPRS, EDGE;
GPS (Optional)		Supporting external GPS, WIFI download
Remote Data Transmission Channel Selection		Supporting 3G; supporting remote downloads of back-end recording strategies;
PTZ Control		Supporting PTZ control realized by local ad client software;
Parameter Configuration		Supporting parameter configuration functions for mobile DVR coding channel;
G-Sensor		Embedded
System Upgrading		Supporting SD card, hard drive upgrading and remote upgrading
Power Supply and Power Consumption	Power Supply	1. ACC on/off
		2. Hard drive lock on/off
		3. Delayed shutdown
		4. Timed on/off
	Input Voltage	DC:+8V ~ +36V
	Output Voltage	+12V@4*A
	Power-off Protection	With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure
	Power Consumption	<10W in normal operation; <0.5W in standby mode
Operating Environment	Temperature	Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃
	Humidity	10% to 95%

FAQ

1. Q: Does the MDVR support Hard drive and SD card?

A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.

The storage capacity can be from 32GB to 2TB.

2. Q: Is it difficult to install MDVR into the vehicle?

A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.

And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.

3. Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,

is it available?

A: Definitely yes!

The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.

In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,

PTZ camera, and so on.

4. Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?

A: Yes, we have SDK ready and welcome your OEM customized order!

Our service

Server --- First year is free. We can also help to build up your own Server. Welcome to talk.

CMS Platform --- iFAR is our brand name of softwares. Copyright protection. Free platform.

Player --- Free Player.

Software --- iFAR is free. Welcome OEM customized project.

Technology support --- We provide Installation guiding, Problem solving, Remote upgrading etc.

Warranty --- We provide 12 months quality warranty based on normal use.
